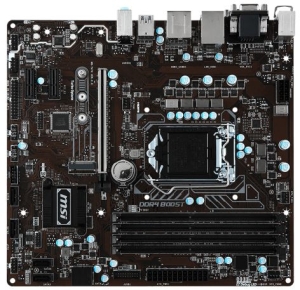

MSI B250M PRO-VDH Motherboard

Overview

• Supports 7th / 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket
• Supports DDR4-2400 Memory
• DDR4 Boost: Give your DDR4 memory a performance boost
• Audio Boost: Reward your ears with studio grade sound quality for a HI-FI experience
• EZ Debug LED: Easiest way to troubleshoot
• Turbo M.2: Delivering Speeds Up to 32Gb/s, Intel Optane Memory Ready
• X-Boost: Great tool to boost your USB &torage performance
• Doublo ESD Protection: Double layer grounding motherboard mounting holes
• Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
• Click BIOS: Secure and Reliable UEFI BIOS solution

MAKING YOUR LIFE EASIER IS OUR BUSINESS

Combining quality you can rely on with top performance and clever business solutions are key aspects of the MSI PRO SERIES motherboards. Engineered to gratify even the most demanding professional, these motherboards will fit in any PC. Making your life easier and supporting your business with super stable, reliable and long-lasting top performance.

COOLING | STAY COOL

Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system to the max.

• 2x fan headers
• DC/PWM mode
• Full fan control

FULLY CONTROLLABLE FAN HEADERS

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans, giving you full control to set up a cool &ilent system. The fan headers are conveniently placed with the most popular CPU coolers in mind.

DC OR PWM MODE WITH HYSTERESIS

MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

TOTAL CONTROL IN BIOS AND SOFTWARE

Total Fan Control allows you to take control of your fans and check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

STORAGE | BE THE FIRST TO BOOT UP IN THE MORNING

This MSI product supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you noticeable benefits. Start programs faster, load data faster and increase productivity.

• 1x M.2
• Ultra-fast storage caching

INTEL OPTANE READY

This new technological marvel brings game-changing performance to memory and storage devices. Allow Optane caching to boost your storage devices for an even faster system!

Specifications

Socket

1151

CPU (Max Support)

i7

Chipset

Intel B250 Chipset

DDR4 Memory

2400/ 2133 MHz

Memory Channel

Dual

DIMM Slots

4

Max Memory (GB)

64

PCI-Ex16

1

PCI-E Gen

Gen3

PCI-Ex1

2

SATAIII

6

M.2 Slot

1

TPM (header)

1

LAN

10/100/1000*1

USB 3.1 ports (Front)

2

USB 3.1 ports (Rear)

3(Gen1, Type A), 1(Gen1, Type C)

USB 2.0 ports (Front)

4

USB 2.0 ports (Rear)

2

Audio ports (Rear)

Realtek ALC887 Codec

DVI-D

1

VGA

1

HDMI

1

DirectX

12

Form Factor

m-ATX

Details

CPU

Supports 6th/ 7th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and
Celeron processors for Socket LGA1151

* This function will be supported depend on the CPU.

Chipset

Intel B250 Chipset

Main Memory

4 x DDR4 memory slots, support up to 64GB

- 7th Gen processors support DDR4 2400/ 2133 MHz*

- 6th Gen processors support DDR4 2133 MHz*

Dual channel memory architecture

Supports Intel Extreme Memory Profile (XMP)**

* Please refer www.msi.com for more information on compatible memory.

** DDR4 memory modules can only run at maximum of 2400 MHz for
7th Gen processors and 2133 MHz for 6th Gen processors on XMP mode.

Slots

1 x PCIe 3.0 x16 slot (supports x16 mode)

2 x PCIe 3.0 x1 slots

Onboard Graphics

1 x HDMI port, supports a maximum resolution of 4096x2160@24Hz,
2560x1600@60Hz

1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

1 x VGA port, supports a maximum resolution of 2048x1536@50Hz,
2048x1280@60Hz, 1920x1200@60Hz

Storage

 Intel B250 Chipset

6 x SATA 6Gb/s ports

1 x M.2 slot (Key M)

- Supports up to PCIe 3.0 x4 and SATA 6Gb/s

- Supports 2242/ 2260 /2280 storage devices

- Supports Intel Optane Memory Ready

USB

 Intel B250 Chipset

- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A &br/>1 Type-C ports on the back panel, 2 ports available through the internal USB connector)

- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel,
4 ports available through the internal USB connector)

Audio

Realtek ALC887 Codec

- 7.1-Channel High Definition Audio

LAN

1 x Realtek 8111H Gigabit LAN controller

Internal I/O Connectors

- 1 x 24-pin ATX main power connector

- 1 x 8-pin ATX 12V power connector

- 6 x SATA 6Gb/s connectors

- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)

- 1 x 4-pin CPU fan connector

- 2 x 4-pin system fan connectors

- 1 x Front panel audio connector

- 2 x Front panel connectors

- 1 x TPM module connector

- 1 x Chassis Intrusion connector

- 1 x Serial port connector

- 1 x Parallel port connector

- 1 x RGB LED connecotr

- 1 x TBT connector

- 1 x Clear CMOS jumper

Back Panel I/O Ports

- 1 x PS/2 keyboard port

- 1 x PS/2 mouse port

- 1 x HDMI port

- 1 x VGA port

- 1 x DVI-D port

- 1 x LAN (RJ45) port

- 2 x USB 2.0 Type-A ports

- 3 x USB 3.1 Gen1 Type-A ports

- 1 x USB 3.1 Gen1 Type-C port

- 3 x audio jacks

Dimension

9.6 in. x 9.0 in. (24.4 cm x 22.8 cm)

m-ATX Form Factor

Mounting

6 mounting holes



• PS/2 Device Port
• VGA Port
• Realtek Gigabit LAN Port
• USB 3.1 Gen1 Type-A
• USB 3.1 Gen1 Type-A
• HD Audio Connectors
• DVI-D Port
• USB 2.0 Device Port
• HDMI
• USB 3.1 Gen1 Type-C
