Overview

The VM3200 Modular Matrix Switch offers advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis. The VM3200 allows users to independently switch and route video and/or audio content directly to various monitors, displays, projectors, and/or speakers simply by pressing front panel pushbuttons. A built-in Scaler encodes the video format in order to provide seamless, real-time switching. The front panel LCD shows a quick view of active port connections. The switch also includes an option to select an EDID Mode that yields the best resolution across different monitors.

The VM3200 is easily expandable and accommodates a lineup of hot-swappable ATEN I/O boards. Equipped with automatic signal conversion, it allows various combinations of digital video interfaces, including HDBaseT (VM7514 / VM8514), HDMI (VM7804 / VM8804), DVI (VM7604 / VM8604), 3G-SDI (VM7404), and VGA (VM7104). This makes it ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centers, and any application that requires customizable, high-speed A/V signal routing.

Best Choice Award Interop Tokyo, Japan ROHS Weee

Features

  • Connects any of 32 video sources to any of 32 displays in combination with ATEN Modular Matrix Solutions
  • Built-in Scaler on each output port converts input resolutions into the display’s native resolution
  • Supports 4K resolutions up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)
  • Seamless Switch - ATEN FPGA design unifies video formats to provide continuous video streams, real-time switching, and stable signal transmissions*
  • Video Wall - allows you to create custom video wall layouts via intuitive web GUI
  • Live stream of connected video channels and image preview of video wall layouts via web GUI
  • Calendar-based scheduling plays connection profiles synchronized with real-time clock
  • EDID Expert - selects optimum EDID settings for smooth power-up and highest quality display
  • Multiple Control Methods - system management via front-panel pushbuttons, RS-232, RS-485/422, and Ethernet (Telnet / Web GUI) connections
  • Hot-pluggable fan and power modules for easy maintenance and higher reliability
  • Flexible system expandability via hot-swappable tool-free installation of I/O boards
  • Optional redundant power supply that ensures reliability for mission-critical applications
  • Audio-enabled, HDMI audio can be extracted, and stereo audio can be embedded (VM7804/VM8804)
  • HDMI (3D, Deep Color) (VM7804/VM8804); HDCP 1.4 compatible
  • Consumer Electronics Control (CEC) support (VM7804/VM8804)
  • ESD protection for HDMI
  • Firmware upgradeable
  • Aluminum frame provides light-weight design
  • Rack mountable

Package Content

  • 1x VM3200 32 x 32 Modular Matrix Switch
  • 1x Power Cord
  • 1x Terminal Block connector
  • 1x User Instructions

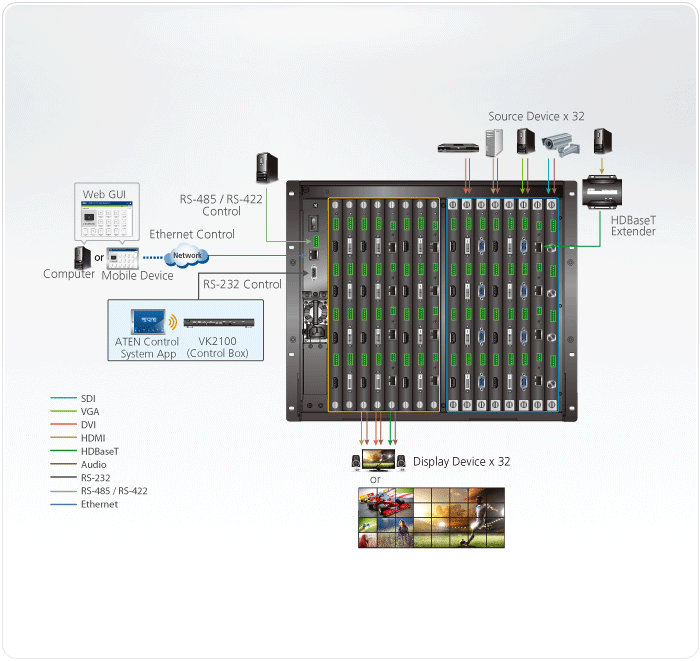

Diagram

Specifications

Board Input

8 x Slot

Board Output

8 x Slot

Video Input

Interfaces

Depends on which I/O board is inserted

Max. Data Rate

15.2 Gbps (3.8Gbps per Lane)

Audio

Input

Depends on which Input board is inserted

Output

Depends on which Output board is inserted

Control

RS-232

Connector: 1 x DB-9 Female (Black)

Serial Control Pin Configurations:

Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd

Baud Rate and Protocol:

Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No

RS-485/RS-422

Connector: 1 x Captive Screw Connector, 5 Pole

Ethernet

Connector: 1 x RJ-45 Female

EDID Settings

EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)

Power

Connectors

1 x 3-Prong AC Socket

Maximum Input Power Rating

100-240 VAC; 50-60Hz; 1.0A

Consumption

800W

*A redundant power supply is optional.

Environmental

Operating Temperature

0 - 40°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Dimensions (L x W x H)

48.20 x 47.19 x 39.90 cm (18.98 x 18.58 x 15.71 in.)

Weight

18.20 kg ( 40.09 lb )

Carton Lot

1 pc

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
