i20S

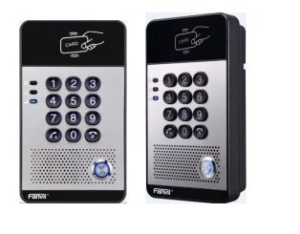

Fanvil i20S Entry Level Indoor
Doorphone
Overview
i20S IP Door Phone
The design of i20S IP Door phone are based on experience and knowledge of
Fanvil IP phone development.i20S are using standard IP/RTP/RTSP protocol for
voice transmission and enjoy the advantages of full range of compatibility.i20S
have a variety of enterprise-level features and compatible with lots of major
platforms, such as 3CX, Asterisk, Broadsoft, Elastix, etc.
The i20S IP door phone is designed for operation in indoor conditions. The
robust mechanical construction offers protective coverage rating against dust
and water (IP65).
The i20S is economical devices with triple function(All in 1)- Access control
by call, code and RFID card
Highlights
- Compatible with standard SIP(RFC3261) protocol and main IPPBX/IMS
platform.
- Access Control(by call, by code, IC/RFID)
- All-in-One(Access Control, Intercom and Broadcasting)
- Built-in 3W speaker and AEC, support high quality hand-free communication.
- Status indication icon
- System online maintenance and management
Generic
- 2 SIP Lines
- POE Enabled
- Full-duplex speakerphone (HF)
- Intelligent DSS Keys (Speed Dial)
- Wall-mounting
- Integrated RFID Card reader
- Integrated indoor switchgear
- Integrated one Relay
- External Power Supply
- All-in-One: Access Control, Intercom and Broadcasting
- Access control-by call, code, RFID card
- Industrial Standard Certifications: IP65, CE/FCC
Call Features
- Intercom
- Speed Dial
- Auto-Answering (per line)
- Voice Message (on server)
- Local 3-way Conference
- Hot Line
Door Phone Features
- Open Door Log (200 thousand)
- Access Table (1000 entries)
- Support RFID Card issues (1000 entries)
- Programmable DSS/Soft keys
- Network Time Synchronization
- Action URL / Active URI
Audio
- Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
- Wideband CODEC: G.722
- Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms
tail-length
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /
- Background Noise Estimation (BNE)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer up to 300ms
- DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
Networking
- 802.3af PoE
- IP Configuration: Static / DHCP / PPPoE
- Network Access Control: 802.1x
- VPN: L2TP / PPTP / IPSec
- VLAN: 802.1p/q
- QoS: DSCP
Protocols
- SIP2.0 over UDP / TCP /TLS
- RTP / RTCP /SRTP
- STUN
- DHCP
- PPPoE
- 802.1x
- Open VPN
- SNTP
- FTP / TFTP
- HTTP / HTTPS
- TR069
Deployment & Maintenance
- Auto-Provisioning via
- FTP / TFTP / HTTP / HTTPS / DHCP / TR069 / SIP PNP
- Web Management Portal
- Web-based Packet Dump
- Configuration Backup / Restore
- Entry Log Export
- Access Table Export / Import
- Firmware Upgrade
- Syslog(include door access logs)
Specifications
|
1
DSS Key |
|
|
Numeric
keypad |
|
|
WAN |
10/100BASE-Tx,
Auto-MDIXRJ-45 |
|
PoE |
802.3af(Class
3 - 6.49~12.95W) |
|
Passive
Switch(short-circuit output) |
NC/NO
Contacts, MAX 30V/1A |
|
AC/DC |
|
|
Active
Switch output |
12V/700mA
DC |
|
RFID/IC
Card |
EM4100
(125KHz),MIFARE ONE (13.56MHz) |
|
1
Indoor door interface |
|
|
Main
Chipset |
Broadcom |
|
Speaker |
4Ω/3W |
|
Cables |
CAT5
or better |
|
Power
Supply |
12V/1A
DC or PoE |
|
Shell
material |
Metal
panel, ABS sump |
|
Protection
level |
IP65 |
|
Working
Temperature |
-10~60℃ |
|
Storage
Temperature |
-40~70℃ |
|
Working
Humidity |
10~90% |
|
Device
Weight |
300g |
|
Gross
weight |
420g |
|
Device
Dimension |
160
x 93 x 35mm |
|
Package
size |
209
x 118 x 64mm |
|
CTN
Size |
340
x 250 x 224mm (10
PCS) |
