All stock codes associated to this product
CP960TEAMS, CP960-TEAMS, IPYTEAMSCP960, IPY-TEAMS-CP960, 841885101907, 841885101891, 6938818303423

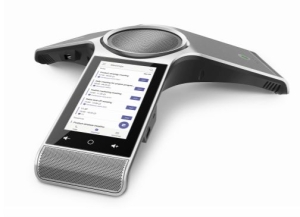

Yealink CP960-Teams Edition Optima HD IP Conference Phone Compatible
with Microsoft Teams
Details
The CP960 is an enterprise-grade conference phone, bringing the Teams
experience and functionality from the desktop to the conference room. Based on
Android OS, the CP960 not only unceasingly boosts the user experience, but also
strikes an exquisite balance between simplicity and sophistication with Teams
user-interface. Delivering unparalleled audio clarity, the CP960 is armed with
Yealinks Optima HD Voice technology, that phone users will think they are
sitting in the same room with one another.
Key Features and Benefits
Easier to be heard and involved in the conference room
The CP960 conference phone combines the hardware and software to fully
improve its audio quality. Thanks to its built-in 3-microphone array, CP960 owns
a 20 feet (6m) and 360 voice pickup range, regarding as an ideal solution for
any conference room that needs best audio experience, as if all participants are
sitting across the table from each other!
Ease of use, low learning cost
The 5-inch multi-touch screen and the Teams-tailored interface provide a rich
visual presentation and easy menu navigation. The CP960 is fully compatible with
Teams key calling/meeting functionality, offering a rich and talented ecosystem
for your team. The CP960 even lets users synchronize Outlook Calendar meeting
schedules in real-time- join a meeting with just a tap.
Efficient Provisioning and Management
The Yealink CP960 is coupled with Yealink efficient auto-provisioning
mechanism, including phone deployment and configuration. Administrators can take
advantage of centralized deployment, management, updating. Moreover, CP960
supports several device management platforms, including Microsoft/Yealink/Unify
Square Device Management Platform.
- 5" 720x1280 multi-touch screen
- Optimal HD audio, full duplex technology
- 20-foot (6-meter),360-degree microphone
- pickup rang
- Microsoft Teams-tailored user interface
- Supports Office 365, and upgradability of
- device applications to Teams or SFB
- Based on Android OS
- Supports Microsoft/Yealink/Unify Square
- Device Management Platform
Audio Features
- Optimal HD audio
- 20-foot (6-meter) microphone pickup range
- Apply to medium to large conference room
- Built-in 3-microphone array, 360-degree voice pickup
- 56mm diameter and 10w speaker
- Full-duplex speakerphone with AEC
- Echo cancellation tail length is up to 320ms
- Background noise suppression
Call Handling Features
- P2P call
- Cloud PSTN call
- Call hold/Call mute/Call transfer/Call forward
- Group SimRing
- Second forwarded if unanswered
- Block calls without caller ID
Conference Features
- One-Click Join
- Add a Participant to existing meeting
- Conference Mute/Unmute participants
- Display Meeting Info
- Calendar access to my meetings
- Show acceptance status per participant
- Schedule Teams meeting
Presence and Contacts
- Presence status synchronize with client, Presence
- status control
- Corporate Directory Access
- Show contact picture
- Call history: placed/received/missed
- Synchronized call logs
Phone Features
- Single sign-in
- Visual voicemail
- Change VM playback speed
- Phone lock
- Screensaver
- Power Saving
Display and Indicator
- 5" 720x1280 capacitive touch screen
- Volume key
- Home button
- Multilingual user interface
- Modern Teams interface, Full keyboard
- Presence status control: available, busy, DND, be right back, off work,
away
Interface
- 1 x RJ45 10/100M Ethernet port
- Power over Ethernet (IEEE 802.3af ), class 4
- 2 x Wired MIC port
- 2 x USB 2.0 port
- 1 x 3.5mm audio-out port
- 1 x USB 2.0 Micro-B device port
- 1 x Security slot
Management
- Configuration: browser/phone/Auto provisioning and
- Device Management Platform
- Provisioning priority management
- Auto Provisioning via Activation Code
- Yealink Redirection and Provisioning Service (RPS)
- QoE (Monitoring Reports)
- Reset to factory, reboot
- Package tracing export, system log
- Screenshot via URL
- View license status
- Supports Microsoft Device Management Platform
- Supports Yealink Device Management Platform
- Supports Unify Square Device Management Platform
Network and Security
- IPv4/IPv6
- IP Assignment: Static/DHCP/PPPoE
- HTTP/HTTPS web server
- Time and date synchronization using SNTP
- SRTP for voice, Transport Layer Security (TLS)
- HTTPS certificate manager
- Digest authentication using MD5/MD5-sess
- IEEE802.1X
Other Physical Features
- Color: Space Silver
- External Yealink PoE adapter (optional)
- Power consumption (PoE): 5.25w-12.3w
- Dimension (W*D*H): 338mm*338mm*74mm
- Operating humidity: 10~90%
- Storage temperature: -10~40C (+14~104F)
Package Features
- Package content:
- - Yealink CP960 IP conference phone
- - Ethernet Cable (7.5m CAT5E UTP cable)
- - Wireless Microphone CPW90 (Optional)
- - Wired Microphone CPE90 (Optional)
- - Quick Start Guide
- - Yealink PoE Adapter YLPOE30 (Optional)
- Qty/CTN: 4 PCS
- N.W/CTN: 5.6 kg (CP960)/10.4 kg (CP960-WirelessMic)
- G.W/CTN: 8.4 kg (CP960)/11.6 kg (CP960-WirelessMic)
- Giftbox size: 405mm*392mm*141mm
- Carton Meas: 589mm*401mm*421mm
