All stock codes associated to this product
CA1Q500M1WN00, CA-1Q5-00M1WN-00, II38916

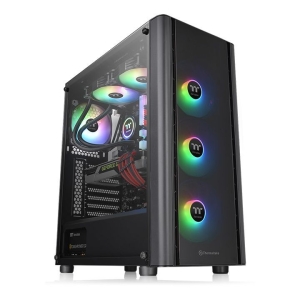

Thermaltake V250 TG ARGB Mid-Tower Chassis
Overview
Thermaltake V250 TG ARGB is a mid-tower chassis that comes with three
preinstalled 120mm ARGB front fans, one preinstalled 120mm standard rear fan,
and can support up to a standard ATX Motherboard.
The V250 Tempered Glass ARGB Mid Tower Chassis is the newest member of
Thermaltake V Series chassis. Its three preinstalled 120mm 5V ARGB front fans
can be controlled via the motherboard synchronization software or the RGB switch
on the top of the I/O port. Other outstanding features include a 4mm tempered
glass panel and full-length PSU cover for overall exceptional performance which
is ideal for both gamers and enthusiasts.
Three Built-in 120mm 5V ARGB Fans
The V250 TG ARGB comes with three preinstalled 120mm 5V ARGB fans at the
front which can be controlled by using a simple interface built into the top I/O
panel that cycles through 7 different lighting modes and a range of different
color options or by using your motherboard software. Furthermore, the fans
feature 9 addressable LEDs, hydraulic bearings, and 16.8 million-color
illumination to guarantee high airflow and awesome lighting
modes.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync (Generation one only), GIGABYTE
RGB Fusion, MSI Mystic Light Sync and ASRock Polychrome. It supports
motherboards that have a 5V addressable RGB header, allowing you to control the
lights directly from the above-mentioned software without installing any extra
lighting software or controllers. For more details, please visit ASUS, GIGABYTE,
MSI and ASRock official websites.
Built-in PSU Cover
The V250 TG ARGB comes with a full length power supply cover providing plenty
of space to tuck away cables, while keeping airflow clear for your hard drives
and PSU.
Tempered Glass Panels
The V250 TG ARGB comes with one 4mm tempered glass panel on the left side,
thicker and more scratch resistant when compared to standard acrylic. On top of
that, the enlarged window design enables you to display and admire all your
components in their full RGB glory.
Opportunities For High-End Expansion
The V250 TG ARGB has good expandability. It can support a CPU cooler with a
maximum height of 160mm, horizontal VGA placement of up to 320mm in length, a
power supply with a length of up to 200mm (without HDD Rack). Optimized for
excellent cooling capability with three 120mm 5V ARGB fans at the front and one
120mm standard rear fan preinstalled, you can also choose to put two 140mm fans
at the front and on top. For radiator compatibility, it can support up to 360mm
at the front and up to 240mm on top.

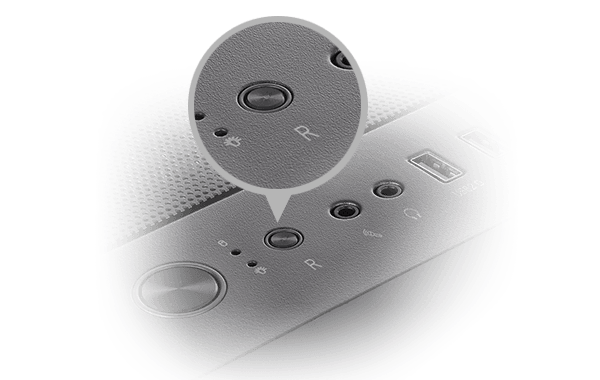

Handy I/O Ports
One 3.0 USB, two 2.0 USB, and the RGB button on the top-front panel to grant
direct access when needed.

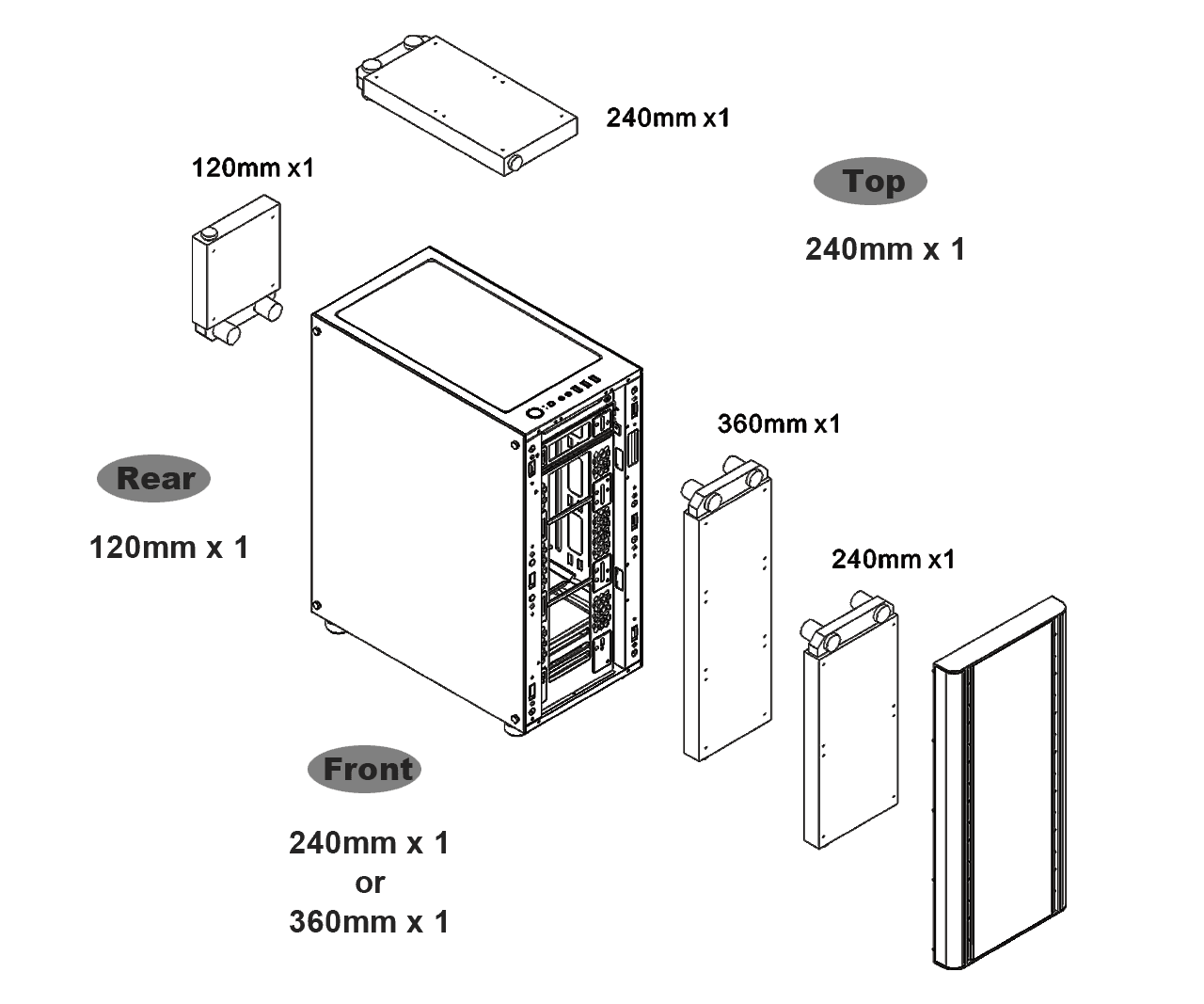

Radiator Support List

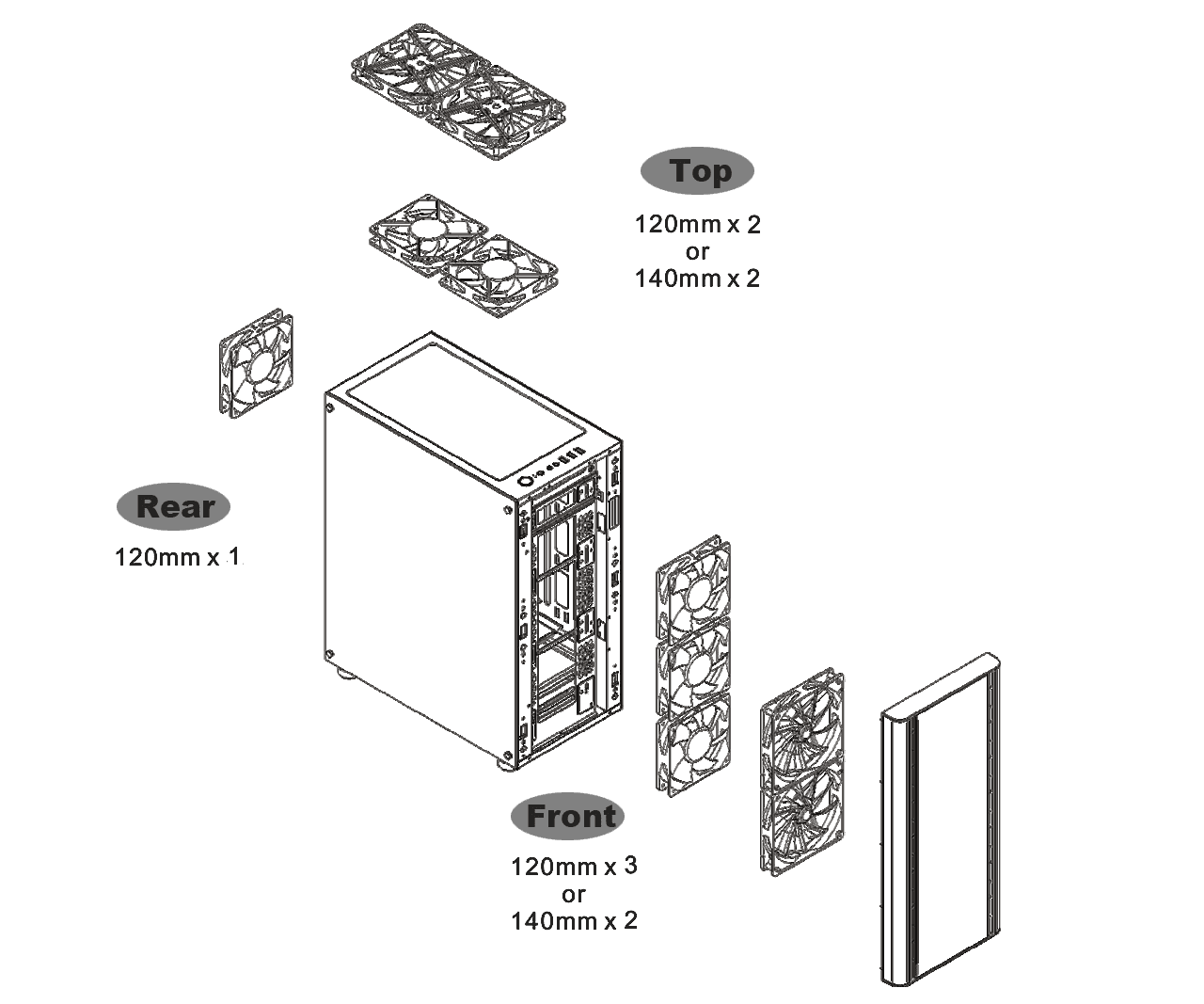

Fan Support List
Specifications
|
P/N |
CA-1Q5-00M1WN-00 |
|
SERIES |
V
Series |
|
MODEL |
V250 TG
ARGB |
|
CASE
TYPE |
Middle
tower |
|
DIMENSION (H X W X
D) |
430 x 216.5x 477
mm |
|
(16.9 x 8.52 x 18.78
inch) |
|
NET
WEIGHT |
6.06 kg / 13.36
lbs |
|
SIDE
PANEL |
4mm Tempered Glass x
1 |
|
COLOR |
Exterior & Interior
: Black |
|
MATERIAL |
SPCC |
|
COOLING
SYSTEM |
Front (intake)
: |
|
3 x 120 x 120 x 25mm
Addressable RGB fan |
|
(Fixed 1000rpm, 27.2
dBA) |
|
Rear (exhaust)
: |
|
1 x 120 x 120 x 25 mm
fan |
|
(Fixed 1000rpm,
16dBA) |
|
DRIVE
BAYS |
|
|
-ACCESSIBLE |
2 x 3.5 or 2 x
2.5 |
|
-HIDDEN |
2 x
2.5 |
|
EXPANSION
SLOTS |
7 |
|
MOTHERBOARDS |
6.7 x 6.7 (Mini ITX),
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX) |
|
I/O
PORT |
USB 3.0 x 1, USB 2.0 x
2, HD Audio x 1, R Button x 1 |
|
PSU |
Standard PS2 PSU
(optional) |
|
FAN
SUPPORT |
Front: |
|
3 x 120mm, 2 x
140mm |
|
Top: |
|
2 x 120mm, 2 x
140mm |
|
Rear: |
|
1 x
120mm |
|
RADIATOR
SUPPORT |
Front: 1 x 360mm, 1 x
280mm |
|
Top: 1 x
240mm, |
|
Rear: 1 x
120mm |
|
CLEARANCE |
CPU cooler height
limitation: 160mm |
|
VGA length limitation:
320mm |
|
PSU length
limitation: |
|
160mm (With HDD
Rack) |
|
200mm (Without HDD
Rack) |
