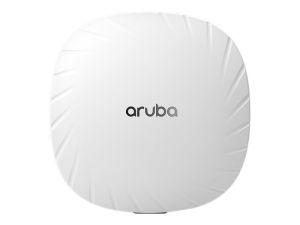

Q9H62A | HPE AP-515 802.11ax 5.40 Gbit/s Wireless Access Point

Buy PC parts - Techbuy Home Computers Custom PC Systems Tablets Networking Printers Phones Point of Sale Gaming

HOME / Back -> Networking - Wireless -> Access Points -> HPE

HPE AP-515 802.11ax 5.40 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz - MIMO Technology - 2 x Network (RJ-45) - Bluetooth 5 - Ceiling Mountable, Wall Mountable, Rail-mountable

Our Price:

$738.15

RRP:

~~$2,636.70~~

You Save:

$1,898.55

Qty:

Add To Cart

or quickly purchase this product

Buy Now

In stock for shippingShips from our warehouse in 1-3 business days

Part Number:

489753

(?) Brand:

HPE

Manuf No:

Q9H62A

Shipping Weight:

1 KG (Includes product packaging)
Estimate Shipping

Date Added:

16/10/2018

Add to wishlist

Write a Review

Details Files Finance Images & Video

All stock codes associated to this product

Q9H62A, 4371621, 190017273624

HPE AP-515 802.11ax 5.40 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz - MIMO Technology - 2 x Network (RJ-45) - Bluetooth 5 - Ceiling Mountable, Wall Mountable, Rail-mountable

With an increasing number of mobile and Internet of Things (IoT) devices reliant on wireless access, networks must be capable of accommodating a diverse mixture of device types, applications and services.

The Aruba 510 series campus access points with 802.11ax technology are designed to deliver high performance access for mobile and (IOT) devices in environments where density is an issue. The 510 series uses 802.11ax features to efficiently and simultaneously serve multiple clients and traffic types in dense environments, increasing data rates for both individual device and overall system.

The 510 series support all mandatory and several optional 802.11ax features, which includes up- and downlink OFDMA with up to 16 resource units, multi-user MIMO (MU-MIMO), 4x4 MIMO with up to four spatial streams in 5GHz and 2x2 with up to two special streams in 2.4GHz, channel bandwidths up to 160MHz (5GHz; 40MHz in 2.4GHz), and 1024-QAM modulation.

The 510 series supports maximum data rates of 4.8Gbps in the 5GHz band and 575Mbps in the 2.4GHz band (for an aggregate peak data rate of 5.4Gbps). Each AP supports up to 256 associated client devices per radio (typical recommended limit for active clients is 150), making the mid-range 802.11ax 510 series APs ideal for high density environments, such as schools, retail branches, hotels and enterprise offices.

In addition to 802.11ax standard capabilities, the 510 Series supports unique features like Aruba ClientMatch radio management and additional radios for location services and IoT applications. This delivers an unsurpassed user experience in today's all-wireless digital work environment and offers up to 4x higher capacity in a cost-effective manner.

HIGH EFFICIENCY

The Aruba 510 Series will efficiently and simultaneously serve multiple clients, increasing data rates for both individual devices and as an overall system. Two key features of 802.11ax are multi-user connectivity and enhanced efficiency using Orthogonal Frequency Division Multiple Access (OFDMA) and multi-user - multiple input multiple output (MU-MIMO).

Multi-user transmission with downlink and uplink OFDMA- OFDMA increases user data rates and also reduces latency, especially for large numbers of devices with short frames or low data-rate requirements, such as voice and IoT devices. By providing multi-user capabilities, a channel can be divided in the frequency domain, and multiple transmissions can be carried simultaneously. OFDMA is particularly effective in raising network efficiency and capacity where there are many devices, short frames, or low data-rate streams.

Multi user transmission with downlink multi-user MIMO- MU-MIMO is another multi-user capability, originally introduced in 802.11ac. This improves network capacity by allowing multiple devices to transmit simultaneously.

Energy efficiency- As higher performance 802.11ax access points will handle a greater number of devices and traffic, they will be driving the need for more power consumption. To offset these demands, Aruba NetInsight includes a feature called GreenAP which allows the 510 series access points to draw less power when it's not being used, such as evenings when the buildings are empty.

Specifications

Interfaces/Ports

Ethernet Technology	Gigabit Ethernet
Ethernet Technology	2.5 Gigabit Ethernet
USB	Yes
Number of Network (RJ-45) Ports	2
Management Port	Yes
PoE PD Port	Yes

Physical Characteristics

Weight (Approximate)	810 g
Form Factor	Rail-mountable
	Ceiling Mountable
	Wall Mountable
Height	46 mm
Width	200 mm
Depth	200 mm

General Information

Product Type	Wireless Access Point
Manufacturer Part Number	Q9H62A
Manufacturer Website Address	https://www.hpe.com/au/
Manufacturer	Hewlett Packard Enterprise
Product Model	AP-515
Product Name	AP-515 Wireless Access Point
Product Series	510
Brand Name	HPE

Technical Information

Wireless Transmission Speed	5.40 Gbit/s
Frequency Band	5 GHz
Frequency Band	2.40 GHz
Wireless LAN Standard	802.11ax
Bluetooth Standard	Bluetooth 5
Number of Internal Antennas	4
MIMO Technology	Yes
Beamforming Technology	Yes

No additional files, specification sheets, guides or documentation found for product.

Warranty: Limited lifetime

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
