All stock codes associated to this product
IWPCIE425BRACKET, IW-PCIE4-25-BRACKET, 5345700
Inwin Riser Cable & Bracket PCIE-E 4.0 x 16
Overview
Vertically Mount Your GPU
InWins PCI-E Riser Cable & Bracket set comes with a bracket that allows
users to install graphics cards vertically to a case that doesnt have a preset
vertical mount. The riser cable connects to the motherboard and nicely showcases
it. This 4.0 riser cable is fully compatible with INTEL and AMD motherboards and
can be installed in most chassis* on the market.
Latest Gen 4.0 Cable for Faster Transmission
Speeds
The latest PCI-E riser cable 4.0 x 16 supports transfer rates of 16GB/s.
While providing double the bandwidth of PCI-E 3.0, the Gen 4.0 riser cable
remains backwards-compatible with a maximum transfer speed and offers great
performance.
*This PCI-E 4.0 x 16 riser cable allows connections to RTX 3000 series, RTX
3080, RTX 3090 FE, as well as, RX 5700XT and the new RX 6000
GPUs.
Flexible Design Allows for Easier Cable
Routing
The InWin PCI-E riser cable is flexible, highly routable and can be
positioned in any suitable direction.
Best Connectivity and Long Durability
The InWin PCI-E Gen 4 riser cables have foiled cables for high-frequency
impedance & EMI gold-plated contacts for the best connectivity and longer
lifespan.

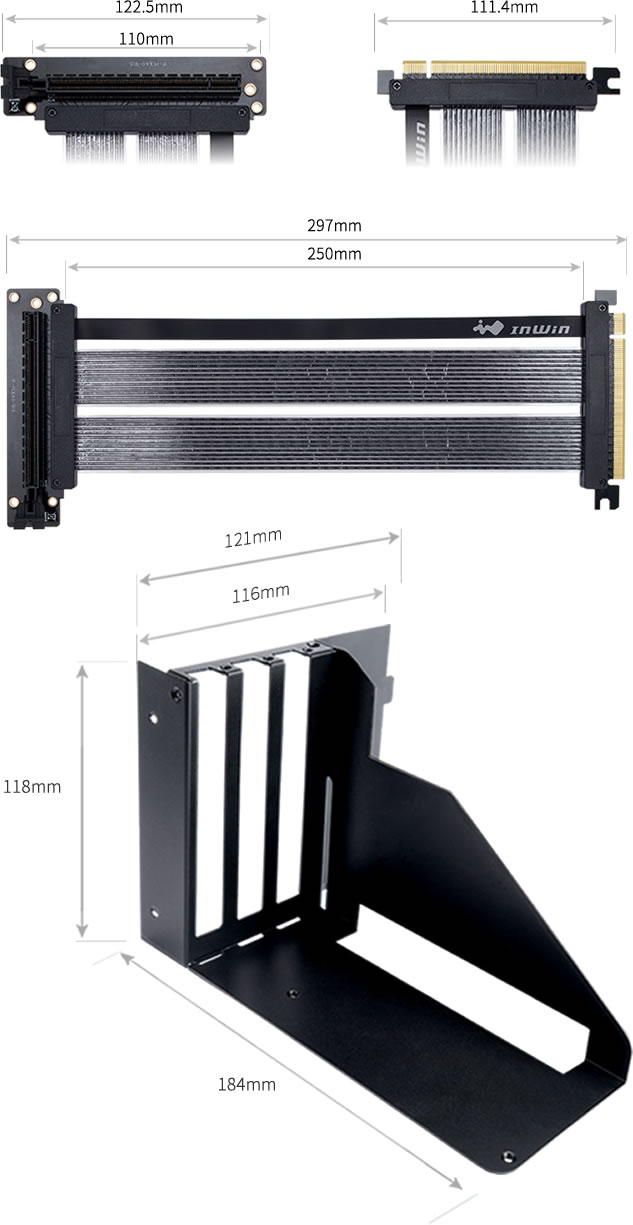

Specifications
|
Model |
InWin
PCI-E Riser Cable & Bracket |
|
Part
Number |
IW-PCIE4-25-BRACKET |
|
Interface |
PCI-E
4.0 x16 |
|
90
Degree Right Angle Riser Adapter Card |
|
Cable
Length |
250mm |
|
Materials |
SECC |
|
PCB |
|
FR4 |
|
Polyethylene(PE) |
|
Copper
Alloy |
|
Temperature
Range (C) |
-20
~ 80 C |
|
Net
Weight |
0.44
KG |
|
Gross
Weight |
0.48
KG |
|
Package
Contents |
PCI-E
Riser Cable x1 |
|
Vertical
Graphics Card Adaptor Bracket x1 |
|
Screws
x5 |
|
Standoffs
x3 |
|
Standoff
Socket
x1 |
