All stock codes associated to this product
SAT5210480G, SAT5210-480G, SY70110A, 4711174723843

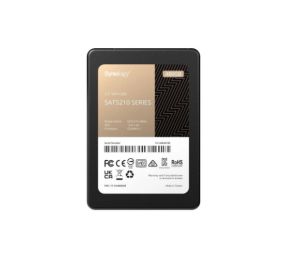

Synology SAT5210-480G 480GB 2.5" SATA SSD
Overview
Enterprise-grade SSD built for Synology systems
Synology SAT5200 SATA SSD offers stable I/O performance while reducing the
latency of critical services and applications. It is built to handle mixed and
intensive 24/7 workloads without compromising on endurance, providing a
streamlined storage experience on Synology systems with minimal service
disruptions.
Specifications
|
Hardware
Specifications |
SAT5210-480G |
|
General |
Capacity |
480
GB |
|
Form
Factor |
2.5"
7mm |
|
Interface |
SATA
6 Gb/s |
|
Performance |
Sustained
Sequential read (128 KB, QD32) |
530
MB/s |
|
Sustained
Sequential write (128 KB, QD32) |
500
MB/s |
|
Sustained
Random Read (4KB, QD32) |
96,000
IOPS |
|
Sustained
Random Write (4KB, QD32) |
55,000
IOPS |
|
Notes |
All
performance measurement were reached in full sustained mode based on the
JESD219A enterprise workload, defined by JEDEC Solid State Technology
Association. |
|
Endurance
and Reliability |
Terabytes
Written (TBW)* |
1,097
TB |
|
Mean
Time Between Failures (MTBF) |
1.5
million hours |
|
Uncorrectable
Bit Error Rate (UBER) |
<
1 sector per 1017 bits read |
|
Power
Loss Protection |
|
|
Warranty* |
5
Years |
|
Notes |
Based
on the JESD219A enterprise workload. |
|
5-year
limited warranty provides coverage until the end of the warranty period or
until the endurance usage of the drive has been reached, whichever comes
first. (Learn more) |
|
Power
Consumption |
Supply
Voltage |
5V
( 5%) |
|
Active
Read (Typ.) |
2.4
W |
|
Active
Write (Typ.) |
2.8
W |
|
Idle |
1.3
W |
|
Notes |
Power
consumption may differ according to configurations and
platforms. |
|
Temperature |
Operating
Temperature |
0C
to 70C (32F to 158F) |
|
Storage
Temperature |
-40C
to 85C (-40F to 185F) |
|
Others |
Size
(Height x Width x Depth) |
7
mm x 69.85 mm x 100 mm |
|
Certification |
FCC |
|
CE |
|
EAC |
|
BSMI |
|
VCCI |
|
RCM |
|
KC |
|
RoHS |
|
UKCA |
