Canon PIXMA TR8660A Ultimate All-In-One Home Office Printer

The PIXMA HOME OFFICE TR8660a is a high-spec home office printer that supports a broad range of paper types and has a built-in memory card slot which expands its uses. In addition to print, copy, scan, and fax, the PIXMA HOME OFFICE TR8660a supports a broad range of paper types and has a built-in memory card slot which expands its uses. The PIXMA HOME OFFICE TR8660a has a Dual Paper Feeder that gets flexible with the way your printer receives paper - either through rear paper feeding or via front paper cassette. The PIXMA HOME OFFICE TR8660a can scan and copy multiple pages with ease. The PIXMA HOME OFFICE TR8660a's automatic document feeder takes up to 20 pages and feeds paper one page at a time to scan or copy, meaning you wont have to manually replace each page. The PIXMA HOME OFFICE TR8660a is easy to operate. Every function is within easy reach with the large 4.3 inch LCD touch display and simple interface. The clear buttons mean quick access to the printers primary functions.

Easy setup with the PC or smartphone

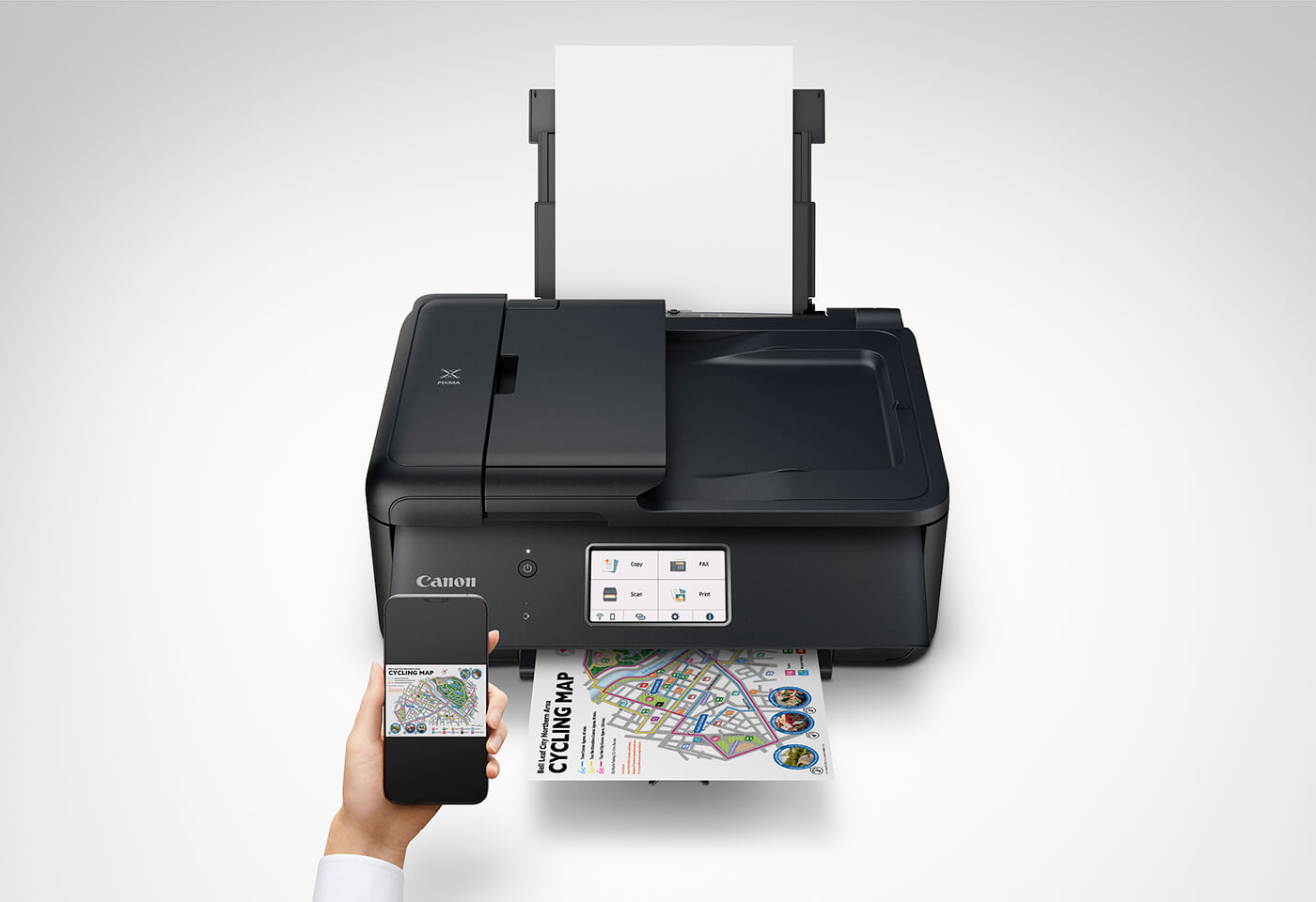

The PIXMA HOME OFFICE TR8660a has easy Wi-Fi connectivity for quick setup, enabling simple and easy printing from your computer or smartphone. Connecting to a smartphone is even easier with the QR code direct connection function.

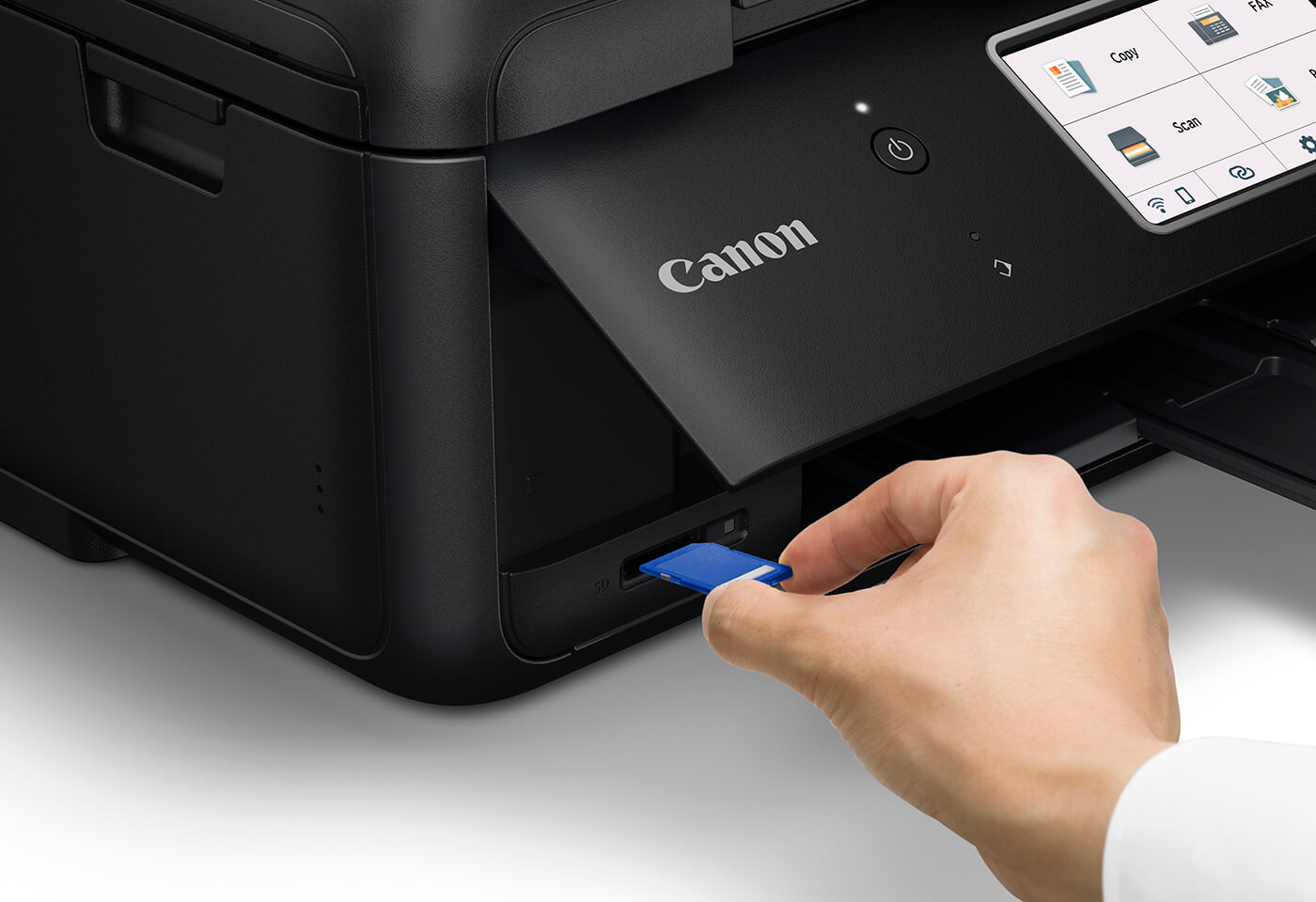

Print directly from an SD Card

Print directly from an SD card. The PIXMA HOME OFFICE TR8660a, equipped with a memory card slot, allows you to print directly from your SD card, further streamlining printing.

Specifications

GENERAL FEATURES	Model PIXMA HOME OFFICE TR8660a
	Ink Type 5 Individual Ink Tanks (PGBK / C / M / Y / BK)
	Maximum Print Resolution 4,800 dpi*2 x 1,200 dpi
	Size Approx. 438 x 351 x 190
	Approx. 17.3 x 13.8 x 7.5
	Weight Approx. 7.9 kg
	Approx. 17.4 lbs
	Display 4.3" / 10.8 cm LCD (Touch Screen, Colour)
	Paper capacity- Auto document feeder Paper Handling (Plain Paper)- A4 / LTR: 20, LGL: 5
	Interface USB / Wireless / ethernet / QR code / SD card slot
	Input Power AC 100 V - 240 V, 50 Hz / 60 Hz
PRINT SPEED	Document: Colour*3 Approx. 10.0 ipm
	Document: Black &White*3 Approx. 15.0 ipm
	Photo (4" x 6")*3 Approx. 37 sec
POWER CONSUMPTION	OFF Approx. 0.3 W
	Standby (MFP: scanning lamp is off)
	USB connection to PC Approx. 1.3 W
	Standby (all ports connected, MFP:
	scanning lamp is off) Approx. 1.9 W
	Copying*28 USB connection to PC Approx. 15 W
ENVIRONMENT	Operating Environment*24 Temperature: 5 C - 35 C, Humidity: 10 % RH - 90 %RH
	(no dew condensation)
	Recommended Environment *25 Temperature: 15 C - 30 C, Humidity: 10 % RH - 80 %RH
	(no dew condensation)
	Storage Environment Temperature: 0 C - 40 C, Humidity: 5 % RH - 95 %RH
	(no dew condensation)
ACOUSTIC NOISE (PC PRINT)	Quiet Mode Available
	Acoustic Noise (PC Print) Plain Paper*27 Approx. 45.5 dB (A)
PRINT HEAD / INK	Number of Nozzles Total 4,096 nozzles (PGBK / C / M: each 1,024 nozzles,
	Y / BK: each 512 nozzles)
PRINTABLE WIDTH	Up to 203.2 mm (8") / Borderless: Up to 216 mm (8.5")
PRINTABLE AREA	Borderless Printing*4 Top / Bottom / Right / Left margin: each 0 mm
	Bordered Printing
	#10 Envelope / DL Envelope
	Top: 8 mm, Bottom: 12.7 mm, Right: 5.6 mm, Left: 5.6 mm
	Square (127 mm x 127 mm)
	Top: 6 mm, Bottom: 6 mm, Right: 6 mm, Left: 6 mm
	Square (89 mm x 89 mm)
	Top: 5 mm, Bottom: 5 mm, Right: 5 mm, Left: 5 mm
	LTR / LGL
	Top: 3 mm, Bottom: 5 mm, Right: 6.3 mm, Left: 6.4 mm
	Other
	Top: 3 mm, Bottom: 5 mm, Right: 3.4 mm, Left: 3.4 mm
	Bordered Auto 2-sided printing
	LTR
	Top: 3 mm, Bottom: 5 mm, Right: 6.3 mm, Left: 6.4 mm
	Other
	Top: 5 mm, Bottom: 5 mm, Right: 3.4 mm, Left: 3.4 mm
SUPPORT MEDIA	Rear Tray
	Plain Paper (64 g/m2 - 105 g/m2),
	High Resolution Paper (HR-101N),
	Photo Paper Pro Platinum (PT-101),
	Photo Paper Plus Glossy II (PP-301) (for Pan-American / Oceania),
	Photo Paper Pro Luster (LU-101),
	Photo Paper Plus Semi-gloss (SG-201),
	Photo Paper Glossy (GP-701) (for North America / Oceania),
	Matte Photo Paper (MP-101),
	T-Shirt Transfer, Envelope,
	Magnetic Photo Paper (MG-101) (for except China),
	Restickable Photo Paper (RP-101) (for except China),
	Greeting Card (manufactured by Avery and RedRiverPaper),
	Cardstock (manufactured by Neenah Paper and INKPRESS),
	Dark Fabric Iron on Transfers (DF-101),
	Light Fabric Iron on Transfers (LF-101),
	Premium Fine Art Rough (FA-RG1)
	Cassette Plain Paper (64 g/m2 - 105 g/m2)
PAPER SIZE	Rear Tray
	A4, A5, B5, LTR, LGL, #10 Envelope, DL Envelope,
	Card Size (91 mm x 55 mm), 4" x 6", 5" x 7", 7" x 10", 8" x 10",
	Square (89 mm x 89 mm, 127 mm x 127 mm),
	Custom Size (width: 55 mm - 215.9 mm, length: 89 mm - 676 mm)
	Cassette A4, A5, B5, LTR,
	Custom Size (width: 148 mm - 215.9 mm, length: 210 mm - 297 mm)
	PAPER SIZE (BORDERLESS)
	A4, B5, LTR, 4" x 6", 5" x 7", 8" x 10", Card Size (91 mm x 55 mm),
	Square (89 mm x 89 mm), Square (127 mm x 127 mm)
PAPER HANDLING (MAXIMUM NUMBER)	Rear Tray
	Plain Paper (LTR): Plain Paper (64 g/m2): 100
	Plain Paper (A4): Plain Paper: 100
	Photo Paper (4" x 6"): Photo Paper Pro Platinum (PT-101) /
	Photo Paper Plus Glossy II (PP-301) (for Pan-American / Oceania) /
	Photo Paper Plus Semi-gloss (SG-201) /
	Photo Paper Glossy (GP-701) (For North America / Oceania) /
	Matte Photo Paper (MP-101) /
	Restickable Photo Paper (RP-101) (for except China): 1
	Cassette Plain Paper (LTR): Plain Paper (64 g/m2): 100
	Plain Paper (A4): Plain Paper (64 g/m2)
SUPPORT MEDIA FOR AUTO 2-SIDED PRINTING	Type Plain Paper
	Size A4, A5, B5, LTR
PAPER WEIGHT	Rear Tray
	Plain Paper: 64 g/m2 - 105 g/m2 ,
	Canon paper: Max. paper weight Approx. 300 g/m2 (Photo Paper Pro
	Platinum (PT-101))
	Cassette Plain Paper: 64 g/m2 - 105 g/m2
SCANNER FUNCTIONS	Scanner Type Flatbed (ADF / Platen)
	Optical Resolution*6 1,200 dpi x 2,400 dpi
	Scanning Bit Depth
	(Input / Output)
	Grayscale: 16 bit / 8 bit
	Colour: RGB each 16 bit / 8 bit
	Maximum Document Size Flatbed: A4 / LTR (216 mm x 297 mm)
	ADF: A4 / LTR / LGL
COPY FUNCTIONS	Maximum Document Size A4 / LTR
	Compatible Media
	Size: A4, A5, B5, LTR, LGL, 4" x 6", 5" x 7",
	Card Size (91 x 55 mm), Square (127 mm x 127 mm)
	Type: Plain Paper,
	Photo Paper Pro Platinum (PT-101),
	Photo Paper Plus Glossy II (PP-301) (for Pan-American / Oceania),
	Photo Paper Pro Luster (LU-101),
	Photo Paper Plus Semi-gloss (SG-201),
	Photo Paper Glossy (GP-701) (for North America / Oceania),
	Matte Photo Paper (MP-101),
	Dark Fabric Iron on Transfers (DF-101),
	Light Fabric Iron on Transfers (LF-101)
	Multiple Copy Black &White / Colour: max. 99 pages
FAX FUNCTIONS	Type Desktop Transceiver (Super G3, Colour Communication)
	Applicable Line PSTN
	Transmission Speed*30 Black &White: Approx. 3 sec
	Colour: Approx. 1 min
	Fax Resolution
	Black &White: 8 pels/mm x 3.85 lines/mm (Standard)
	8 pels/mm x 7.7 lines/mm (Fine)
	300 dpi x 300 dpi (Extra Fine)
	Colour: 200 dpi 200 dpi
	Print Size A4, LTR, LGL
	Scanning Width A4 / LTR
	Modem Speed Max. 33.6 kbps (Automatic fall back)
	Compression Black &White: MH, MR, MMR
	Colour: JPEG
	Gradation Black &White: 256 levels
	Colour: 24 bit (RGB each 8 bit)
	Automatic Dialling Directory: Max. 100 locations
	Group Dialling: Max. 99 locations
	Transmission / Reception Memory*31 Approx. 250 pages
PRINTING SOLUTIONS	Available for AirPrint / Mopria / Canon Print Service (for Android) / PIXMA Cloud
	Link / Canon PRINT Inkjet/SELPHY (for iOS / Android)
