Acceltex AP and Omni or Patch Antenna All-Thread Drop Mount - White

IMG 1 of 1
Our Price:
$215.65
RRP:
$220.00
You Save:
$4.35
or quickly purchase this product
Backorder
Part Number:
515887
(?) Brand:
Acceltex
Manuf No:
ATS-DRPMNT-UNIV1-OOOP
ATSDRPMNTUNIV1OOOP
Shipping Weight:
1.43 KG (Includes product packaging)
Estimate Shipping
Date Added:
14/7/2022
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
ATS-DRPMNT-UNIV1-OOOP, ATSDRPMNTUNIV1OOOP

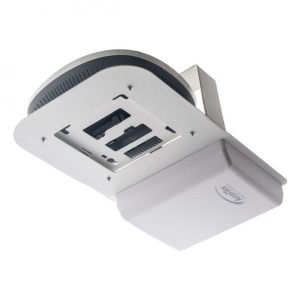

AccelTex AP and Omni or Patch Antenna All-Thread Drop Mount



Overview

The AccelTex Solutions All-Thread Drop Mount provides a unique solution to mount a Cisco, Aruba or other T-Bar mounted AP and an AccelTex Omni or Patch antenna in one location using All-Thread. The AP snaps into place by fitting the AP mounting feet into pre-defined keyholes in the mount or using the T-Bar mount supplied with the AP. This mount can be used to lower the height of the antenna and AP in a building with high ceilings or can even be placed above a suspended ceiling. All-Thread and fasteners not included.

Specifications

DIMENSIONS

16.1" L x 9.1" W x 4.2" H (410mm L x 230mm W x 106mm H)

WEIGHTS

3.15 lb (1.43 kg)

INSTALLATION

3/8" All Thread or Beam Clamp

INSTALLATION ENVIRONMENT

Indoor

COMPATIBLE AP

Adtran/Bluesocket 1925, Adtran/Bluesocket 1935, Adtran/Bluesocket 2035, Adtran/Bluesocket 3045, Aerohive AP1130, Aerohive AP141, Aerohive AP245X, Aerohive AP350, Aruba/HP AP-103, Aruba/HP AP-204, Aruba/HP AP-205, Aruba/HP AP-207, Aruba/HP AP-214, Aruba/HP AP-215, Aruba/HP AP-224, Aruba/HP AP-225, Aruba/HP AP-304, Aruba/HP AP-305, Aruba/HP AP-314, Aruba/HP AP-315, Aruba/HP AP-324, Aruba/HP AP-325, Aruba/HP AP-334, Aruba/HP AP-335, Aruba/HP AP-344, Aruba/HP AP-345, Aruba/HP AP-504 (with Aruba TBAR Adapter), Aruba/HP AP-505 (with Aruba TBAR Adapter), Aruba/HP AP-514 (with Aruba TBAR Adapter), Aruba/HP AP-515 (with Aruba TBAR Adapter), Aruba/HP AP-534 (with Aruba TBAR Adapter), Aruba/HP AP-535 (with Aruba TBAR Adapter), Aruba/HP AP-555 (with Aruba TBAR Adapter), Avaya WAO 9122, Cisco 1602e, Cisco 1852e, Cisco 2602e, Cisco 2702e, Cisco 2802e, Cisco 3502e, Cisco 3602e, Cisco 3702e, Cisco 3802e, Cisco Catalyst 9115e, Cisco Meraki MR42E, Cisco Meraki MR53E, Engenius EWS371AP, Extreme AP 3715e, Extreme AP 3805e, Extreme AP 3825e, Extreme AP 3935e, Meru/Fortinet AP 1010e, Meru/Fortinet AP 1020e, Meru/Fortinet AP 822e, Meru/Fortinet AP 832e, Meru/Fortinet FAP-223C, Meru/Fortinet FAP-423E, Meru/Fortinet FAP-C225C, Meru/Fortinet FAP-S313C, Meru/Fortinet FAP-S323C, Meru/Fortinet FAP-S323CR, Meru/Fortinet FAP-S422E, Meru/Fortinet FAP-S423E, Meru/Fortinet FAP-U423EV, Meru/Fortinet OAP-832e, Mojo C-75-E, Zebra/Extreme AP-6522, Zebra/Extreme AP-7522, Zebra/Extreme AP-7532, Zebra/Extreme AP-8232, Zebra/Extreme AP-8533

APPLICABLE INDUSTRIES

Enterprise, Hospitality, Transportation, Warehouse

IDEAL APPLICATIONS

Indoor Wi-Fi

APPLICABLE TECHNOLOGY

802.11ac, 802.11n

COLOR

White

MATERIAL

Steel
