All stock codes associated to this product
K33480AP, 5574889

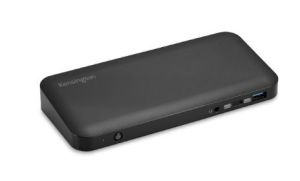

Kensington SD4839P USB-C 10Gbps Triple Video Driverless Docking
Station - 85W PD - DP++/HDMI - Windows
Overview
If youre looking for a driverless USB-C docking solution that offers triple
video, 85W Power delivery, and data transfer speeds up to 10Gbps, then the
SD4839P is for you. Simply connect it to any USB-C laptop running Windows 10 or
later, and choose the right connections and resolutions for your needs.
Nine-in-one design features plenty of ports for all your connectivity needs,
while a zero-footprint mounting option and security cable lock slots let you
maximize desktop space, reduce clutter, and protect your investment. Free
DockWorks software and a three-year limited warranty.
- Best For: Windows USB-C laptops that support Power Delivery, and monitors
that support up to dual 4K
- Connection Technology: USB-C Alt Mode
- Power Delivery: 85W
- Compatibility: Windows 10 or later
- # of Monitors Supported: 3
- Video Ports: HDMI, DP++
- Maximum Resolution Supported: Triple 1080p @ 60Hz
- Plug and Play: Plug and play installation, though installation of
Kensington DockWorks software is recommended for the best connection,
performance, and security from your Kensington docking station
- System Requirements: Host device must support Power Delivery and
DisplayPort Alt Mode over USB-C
- Warranty: Three-year limited warranty
Specifications
|
Connection
Technology |
USB-C
Alt Mode |
|
Driverless |
Yes |
|
Additional
Screen Outputs |
3 |
|
Video
Ports |
DisplayPort++,
HDMI |
|
Maximum
Resolution |
4K |
|
Power
Delivery |
85W |
|
Operating
System(s) |
Windows |
|
SD
Card Reader |
No |
|
Number
of USB Ports |
4 |
|
USB
Fast Charging |
No |
|
Docking
Station Family |
The
Task Master |
|
DockWorks |
Yes |
|
Best
For |
USB-C
Laptops & Ultrabooks that support Power Delivery and Monitors that
support up to dual 4K |
|
Compatibility |
Windows
10 or above |
|
USB-A
Ports |
3
x: USB 3.2 Gen2 (front) with 5V/0.9A |
|
USB-C
Ports |
1
x USB-C 3.2 Gen2 (front) with 5V/1.5A charging |
|
Audio |
1
x 3.5mm Combo Microphone & Headphone Port
(front) |
|
Data
Transfer Speeds |
Supports
up to 10Gbps data transfer speed |
|
Ethernet
Speed (Mbps) |
1000,
100, 10 |
|
Maximum
Resolution Supported |
Minimum
Resolution (DP1.2/HBR2): Single 4K @ 30Hz Dual 1080p @ 60Hz Triple 1080p @
30Hz // Maximum Resolution (DP1.4/HBR3 *DSC On): Single and Dual 4K @
60Hz*, Triple 1080p @ 60Hz |
|
Plug
& Play |
Plug
& Play installation without need for drivers or
downloads |
|
System
Requirements |
Host
device must support Power Delivery and DisplayPort Alt mode over
USB-C |
|
USB-C
Power Delivery |
Supports
USB-C PD 3.0 (85W of laptop charging) |
|
Video
Output |
1
x HDMI v2.0, 2 x DisplayPort++ v1.4 |
|
4K
Support |
Yes |
