All stock codes associated to this product
SATURN ASN120-3PK, SATURNASN1203PK, 5013925, 4710474949502
Inwin Saturn ASN120 High Airflow ARGB Case Fan - 3-Pack
Overview
Modular Connector Design
Our patented modular connector design daisy-chains the fans together, making
cable management quick, easy, and clean.
Gorgeous ARGB Lighting Effect
The ARGB feature complements other ARGB components and can be synced together
with motherboard software via 3-pin, 5V header.
Witness the Stripe-Hype!
The rigid stripes found along the transparent frame of the ASN120 showcases
the beauty of their architecture and provides a unique perspective when the
lights bleed through.
Shockproof Rubber Stands
Operating vibrations and noises are reduced to an absolute minimum through
the shockproof rubber stands.
ARGB One-Click Controller PLUS (ARGB + Fan
Controller)
Thanks to the provided ARGB One-Click Controller PLUS, you can now sync even
more ARGB enabled items. Also, you can connect the fans power to the controller
too.
Specifications
|
Product
Name |
Saturn
ASN120 |
|
Quantity
Included |
Triple
Pack |
|
Model
Number |
IW-FN-ASN120-3PK |
|

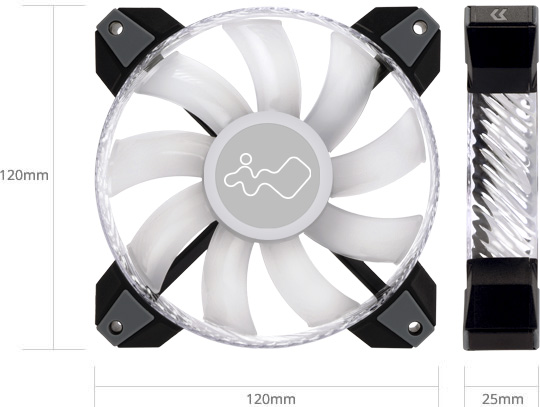

Fan
Size |
120
x 120 x 25mm |
|
Materials |
PC,
PBT |
|
Rated
Voltage |
DC
12V |
|
Rated
Power |
4.32W |
|
Rated
Current |
0.36A |
|
ADD
RGB Rated Voltage |
5V |
|
ADD
RGB Rated Power |
1.5W |
|
ADD
RGB Rated Current |
0.30A
(max.) |
|
Speed
Mode |
PWM
500~1800 RPM |
|
Air
Flow |
77.17
CFM |
|
Air
Pressure |
3.12mm/
H2O |
|
LED |
Addressable
RGB |
|
Connector
(Fan to Fan) |
6-pin
Modular |
|
Connector
to M/B |
4
Pin (PWM, 12V), 3 Pin (ARGB, 5V) |
|
Noise
Level |
35
dB(A) |
|
Bearing
Type |
Long
Lifespan Sleeve Bearing |
|
Gross
Weight |
554g |
|
Package
Dimensions (L x W x H) |
125
x 185 x 82mm |
|
Warranty |
2
Years |
