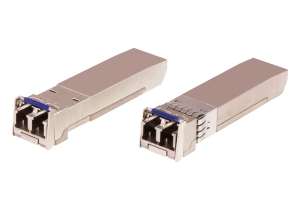

ATEN 2A-142G 10G Single-Mode/10KM Fiber SFP+ Module

IMG 1 of 1
Our Price:
$486.80
RRP:
$499.00
You Save:
$12.20
or quickly purchase this product
Backorder
Part Number:
520515
(?) Brand:
ATEN
Manuf No:
2A-142G
2A142G
Shipping Weight:
0.02 KG (Includes product packaging)
Estimate Shipping
Date Added:
1/11/2022
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
2A-142G, 2A142G

Aten 2A-142G 10G Single-Mode/10KM Fiber SFP+ Module



Overview

The 2A-142G 10G Single-Mode/10KM Fiber SFP+ Module is designed for use in 10GbE Ethernet environment that allows you to connect a single-mode Gigabit Ethernet network cable to a network switchs SFP+ port. The 2A-142G provides 10GbE connectivity at distances up to 10 kilometers meters. As a hotpluggable module with a standard duplex connector for fiber communications, the 2A-142G works with single-mode-fiber (SMF) connections and operates at a nominal wavelength of 1310 nm. This makes the module a cost-effective and highperformance transceiver to significantly increase the span of a compatible network switch.

  • Extend your network connectivity up to 10 kilometers
  • Compliant with IEEE 802.3ae standards
  • Compliant with SFF-8431 MSA Digital Diagnostic Monitor (DDM)
  • Hot pluggable
  • Low power consumption
  • Operation Temperature from 0 C to 70 C
  • RoHS compliant

Specifications

Fiber Optics

Data Rate

10 Gbps

Operating Distance

10 km

Fiber Type

Single Mode

Connector Type

LC

DDM

Yes

Environmental

Operating Temperature

0-70C

Storage Temperature

-40-85C

Physical Properties

Weight

0.02 kg ( 0.04 lb )

Dimensions (L x W x H)

5.59 x 1.46 x 1.30 cm

(2.2 x 0.57 x 0.51 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.
