All stock codes associated to this product
SAT2IDEADP, 2902533, 0065030843393
| Ports & interfaces |
|---|
| Connector 1 | SATA 7-pin + SATA 15-pin |
| Connector 2 | IDE 40-pin + IDE 44-pin + LP4 |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Design |
|---|
| Product colour | Black |
| Certification | CE, FCC, REACH |
| Performance |
|---|
| Chipset | JMicron - JM20330 |
| Storage drive sizes supported | 2.5,3.5" |
| Product colour | Black |
| Certification | CE, FCC, REACH |
| Operational conditions |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Relative humidity | 8 - 90% |
| Operating temperature (T-T) | 5 - 80 °C |
| Sustainability |
|---|
| Sustainability certificates | RoHS |
| Weight & dimensions |
|---|
| Width | 78 mm |
| Depth | 101 mm |
| Height | 26 mm |
| Weight | 104 g |
| Packaging data |
|---|
| Package width | 110 mm |
| Package depth | 147 mm |
| Package height | 52 mm |
| Package weight | 200 g |
| Packaging content |
|---|
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Technical details |
|---|
| Sustainability certificates | RoHS |

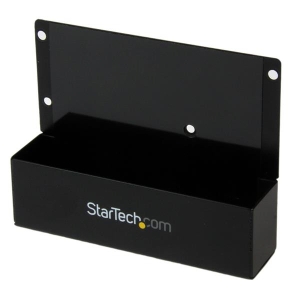

Use your 2.5in or 3.5in IDE hard drives in a SATA HDD Docking Station
The SAT2IDEADP SATA to IDE hard drive adapter enables you to use your 2.5-inch/3.5-inch IDE-based (PATA) hard drives in most StarTech.com SATA-based HDD docking stations and drive duplicators. The SATA-IDE adapter features all-metal construction that ensures maximum durability, and is fully compatible with IDE hard drives up to ATA-133 (133MBps).
The unique mounting style of the SATA/IDE adapter enables it to be easily mounted to an IDE/ATA hard drive, and inserted into a SATA hard drive dock bay, for quick and easy retrieval of data from older HDDs. The adapter can also be used to install IDE hard drives into SATA-only desktop computers, or any other scenario that requires an IDE hard drive to be connected through Serial ATA.
The SAT2IDEADP hard drive adapter works with most StarTech.com SATA HDD Docking Stations and Duplicators.
Backed by 2-year warranty and free, lifetime technical support.
The StarTech.com Advantage
- Unique design allows any 2.5/3.5in IDE hard drive to be used and inserted (upright) into a SATA HDD docking station or duplicator drive bay
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
