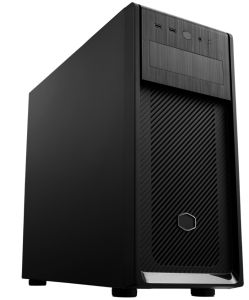

CoolerMaster MASTERBOX E500 + ELITE 500W 230V PSU, ATX, LARGE FILTERED INTAKES, SUPPORT OPTICAL DRIVE

IMG 1 of 1
Our Price:
$120.85
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
529020
(?) Brand:
CoolerMaster Web Site
Manuf No:
E500-KN5N50-S00
E500KN5N50S00
Shipping Weight:
17 KG (Includes product packaging)
Estimate Shipping
Date Added:
14/3/2023
Details Files Images & Video
All stock codes associated to this product
E500KN5N50S00, E500-KN5N50-S00
Series Elite Series
Size Mid Tower
Model Number E500-KGNN-S00 (TG), E500-KNNN-S00 (Steel), E500-KG5N-S00 (TG, ODD), E500-KN5N-S00 (Steel, ODD)
Color(s) Black
Materials Steel, Plastic, Tempered Glass
Dimensions (L x W x H) 409 x 204 x 455mm (incl. Protrusions), 402 x 204 x 455mm (excl. Protrusions), 464 x 204 x 455mm (incl Protrusions, ODD), 457 x 204 x 455mm (excl. Protrusions, ODD)
Volume 37.29L (E500-KGNN-S00, E500-KNNN-S00) (exlc. Protrusions), 42.40L (E500-KG5N-S00, E500-KN5N-S00) (exlc. Protrusions)
Motherboard Support Mini ITX, Micro ATX, ATX
Expansion Slots 7
Kensington Lock N/A
5.25" Drive Bays 0 (E500-KGNN-S00, E500-KNNN-S00), 1 (E500-KG5N-S00, E500-KN5N-S00)
2.5" / 3.5" Drive Bays (Combo) 2
2.5" Drive Bays 3 (E500-KGNN-S00, E500-KNNN-S00), 5 (E500-KG5N-S00, E500-KN5N-S00)
I/O Panel 2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)
Pre-installed Fans - Rear 1x 120mm
Fan Support - Top 2x 120mm, 2x 140mm
Fan Support - Front 2x 140mm, 3x 120mm (E500-KGNN-S00, E500-KNNN-S00), 2x 120mm (E500-KGNN-S00, E500-KNNN-S00), 3x 120mm (remove ODD bracket) (E500-KGNN-S00, E500-KNNN-S00)
Fan Support - Rear 1x 120mm
Radiator Support - Top 120 / 240mm (32mm max motherboard component height)
Radiator Support - Front 120mm, 140mm, 240mm, 280mm, 360mm (Remove ODD) (E500-KG5N-S00, E500-KN5N-S00)
Radiator Support - Rear 120mm
Clearance - CPU Cooler TG: 161mm, Steel: 163mm
Clearance - PSU 160mm (E500-KGNN-S00, E500-KNNN-S00), 180mm (E500-KG5N-S00, E500-KN5N-S00)
Clearance - GFX 350mm (w/o front fans &radiator) (E500-KGNN-S00, E500-KNNN-S00), 400mm (w/o front fans &radiator) (E500-KG5N-S00, E500-KN5N-S00)
Cable Routing 18.5mm
Dust Filters Front, Top, Bottom
Power Supply Support Bottom Mount, ATX
Warranty 2 years
