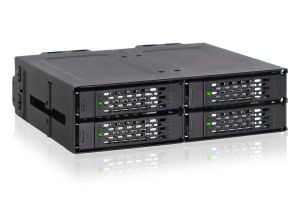

Icydock MB699VP-B V3 ToughArmor 4 Bay 2.5" U.2/U.3 NVMe SSD PCIe 4.0 Mobile Rack Enclosure for External 5.25" Drive Bay (4 x OCuLink SFF-8612 4i)

IMG 1 of 3
Our Price:
$449.80
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
536624
(?) Brand:
Icydock Web Site
Manuf No:
MB699VP-B V3
MB699VPB V3
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Date Added:
6/12/2023
Details Files Images & Video
All stock codes associated to this product
MB699VP-B V3, MB699VPBV3
  • Note: To utilize an M.2, U.2, or U.3 NVMe SSD in a PCIe 16x or 8x slot, the motherboard or add-on card must support PCIe Bifurcation. This mode divides PCIe lanes into specific configurations like x4, x4, x4, x4 for a 16x slot or x4, x4 for an 8x slot, ensuring the SSD can be read by the system. For compatible hardware, please refer to the FAQ section. If your hardware is not listed there, please contact us for assistance.
  • Product Introduction
    The ToughArmor MB699VP-B V3 is a Ruggedized Quad Bay Removable U.2/U.3 NVMe SSD Enclosure supporting PCIe 4.0 and fetching up to 64Gb/s data transfer rates through OCuLink (SFF-8612) interface. It is made out of heavy-duty full-metal construction and equipped with removable U.2/U.3 drive trays that simplify the time-consuming drive installation/removal process for easy drive maintenance. In addition, the MB699VP-B V3 uses dual 40x20mm cooling fans to keep the high-speed U.2/U.3 SSD at optimal temperatures and let you adjust the fan speed through the 3-speed fan control located in the rear of the enclosure.
  • Now Compatible with Tri-Mode Controllers
    Due to popular demand and recent circuit board changes from host card manufacturers, the ToughArmor MB699VP-B V3 is now compatible with *Tri-Mode controller cards from Broadcom, Areca, and more. To view more details on compatible cards and cables, please go to the FAQ section of this product page.

    *Note - The MB699VP-B V3 only supports NVMe SSD when connecting to a Tri-Mode controller. It does not support SAS/SATA SSD/HDD.
  • Superior PCIe 4.0 Performance
    To unlock the full potential of the PCIe 4.0 U.2/U.3 NVMe SSD, each drive bay uses a dedicated OCuLink (SFF-8612) connector to achieve the bandwidth rate of 64Gb/s, which is two times faster than PCIe 3.0 and 10 times faster than SATA standards. The extremely fast IOPS (Input/output operations per second) makes it an ideal solution for data-intensive applications such as autonomous driving, mobile automation, real-time forecast, film editing, and military computing.

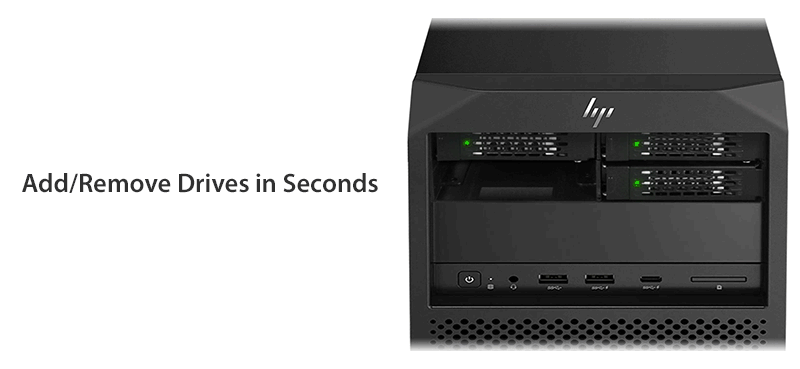

  • Removable Drive Tray Design
    Typically, NVMe U.2/U.3 SSDs are installed inside the computer case, which can be tough to reach when it requires maintenance. With the ToughArmor MB699VP-B V3, your drives are brought to the frontal 5.25" optical drive bay, where the U.2/U.3 SSDs can be easily accessed, making drive maintenance more efficient and straightforward process. The removable drive trays support any standard U.2/U.3 SSD from 5mm to 15mm drive height.
  • Maximizing Cooling Performance
    Built-in with the dual 40x20mm cooling fans, the heat generates by U.2/U.3 SSD is further dispersed through the intelligently place ventilation holes throughout the entire enclosure. The dual cooling fans come with three fan speed settings: High, Low, and off. The user can choose the appropriate fan speed option to keep the drives at optimal operating temperatures.
  • EMI Grounding Technology
    Grounding your drives are essential as swapping drives without the proper grounding may lead to hardware damage due to static shocks. With our innovative EMI Grounding Technology, once the drive is screwed onto the drive tray, the drive will be in a constant grounded state throughout the tray, housing, and computer system to ensure your drives are protected from static electrical surges safe during swapping.
  • ToughArmor Protection
    Ensuring the enclosure can be relied upon for many years, the ToughArmor MB699VP-B V3 is capable of holding up in the harshest environment. It comes equipped with rugged, heavy-duty full-metal protection throughout the entire device and tray, making it perfect for industrial devices that may require a flammability rating. The outstanding build quality is suitable for various enterprise systems such as military and law enforcement industries, in-vehicle computers, and manufacturing conditions such as embedded control and factory automation systems.
  • Packed with Features

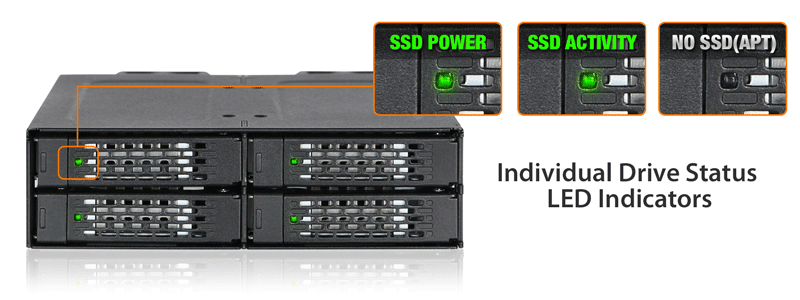

    An LED status light built into the tray lets you know your drive is powered up and in use. The LED will shut off when no drives are installed to save power.
  • Never forget which drives belong in what bays. With included individual drive ID labels, you'll always know which drive tray belongs in your RAID array or which drives contains specific files. Freely unplug and rearrange them to better suit your configurations or remove them for a simplified look.
  • Exceptional Product Compatibility
    The MB699VP-B V3 is compatible with motherboards, RAID/HBA cards, and M.2 adapters from major brands including Adaptec, Areca, Broadcom, HighPoint, Supermicro, and more. This compatibility gives you the freedom to choose from a wide range of hardware options, moving beyond the constraints of single-brand system configurations. For more information on product compatibility, click here.
  • The ToughArmor MB699VP-B V3 is designed to work seamlessly with SATA 15-pin power cables and OCuLink cables equipped with a locking latch. This ensures cables remain firmly attached, minimizing the risk of unintentional disconnections during vibrations or movement. Once secured, these cables maintain a steadfast connection.
  • (Optional) M.2 NVMe SSD to U.2 NVMe SSD Adapter
    Converting your M.2 NVMe SSD into U.2 NVMe SSD with MB705M2P-B adapter offers tool-less SSD installation and comes with a large heatsink designed explicitly for high-speed M.2 NVMe SSDs.
  • Wide Range of Compatibility
    The EZ-Slide Mini Tray MB991TRAY-B offers effortless interchangeability among different ToughArmor models.
Which ToughArmor MB699VP-B is right for you?
Model MB699VP-B MB699VP-B V2 MB699VP-B V3
Cooling Fans Dual Fans
(40 x 40 x 10mm)		 Dual Fans (40 x 40 x 20mm)
Fan Speed 4,800 RPM 8,000 RPM
Connectors 4 x MiniSAS HD4i
(SFF-8643)		 4 x OCuLink4i (SFF-8612)
Pin-out Defined Legacy SFF-9402 Rev 1.1 SFF-9402 Rev 1.1
(Tri-mode HBA/RAID adapters compatible)
Product Dimension
(L x W x H)		 140.3 x 146 x 41.3mm 150.3 x 146 x 41.3mm
Net Weight 854.2g 911.2g
Gross Weight 935.2g 945.7g
Suitable for NVMe HBA/RAID adapters
with Legacy pin-out		 NVMe HBA/RAID adapters
with SFF-9402 pin-out		 Tri-mode HBA/RAID adapters
with SFF-9402 pin-out
Customizable ICY DOCK Drive Enclosures: Tailored to Meet TAA &UL Certification Standards and More!
At ICY DOCK, we understand the paramount importance of adhering to various industry and safety standards. While our standard products are already crafted with the highest quality in mind, we also provide our customers with the option to customize ICY DOCK drive enclosures and mobile racks to meet their specific certification requirements. This includes standards such as TAA and UL to wide temperature tests.

Our dedicated team is fully prepared to adjust product materials and designs to ensure complete compliance. Furthermore, we offer comprehensive guidance to our clients throughout the certification process. Our goal is to not only meet precise specifications but also ensure that our products successfully pass stringent tests. Below, you'll find a detailed table listing all the optional certifications that can be tested with our customizable solutions.
Optional Certifications Available for ToughArmor MB699VP-B V3
TAA Trade Agreements Act Compliance
UL Safety Standard Certification
UL94 Flammability of Plastic Materials
FCC Federal Communications Commission Compliance
Wide Temperature MIL-STD-810H - Method 501.7 &502.7
Customizing ICY DOCK products for specific certifications involves fees for the creation of the certificates, including necessary testing. Please note that some certificates may require recurring fees to remain valid. For more details and inquiries,please contact us at [email protected]
Main Features
Supports 4x PCIe NVMe U.2/U.3 SSD, up to 15mm drive height
Installs into any standard external 5.25" optical drive bay
Uses 4x OCuLink (SFF-8612) to connect, pin-out defined by SFF-9402 Rev 1.1
Supports PCIe 4.0 specification with transfer rates up to 64Gb/s per drive bay
Supports Tri-mode controllers PCIe/NVMe pinout (Broadcom, Areca, and more)
Ruggedized full-metal enclosure meeting flammability requirements
Removable tray system for easy maintenance
Dual high-performance 40x20mm cooling fan with three fan speed setting (High, Low, Off)
The Eagle-hook tray latch securely holds the drive tray inside the enclosure
Supports SATA 15-pin and OCuLink cables with locking latch design for a secure connection
EMI Grounding protects SSDs from electrical damage
Industry-leading 5 years limited warranty against all defects
Complimentary support from professionally trained technical support agents
Specification
Model Number MB699VP-B V3
Color Black
Support Drive Size 2.5" (up to 15mm height)
Compatible Drive Type U.2/U.3
Number of Drives 4
Drive Bay 5.25" half height bay
Host Interface 4 x OCuLink SFF-8612 4i, pin-out defined by SFF-9402 Rev 1.1
(Tri-mode HBA/RAID card compatible)
Power Input 2 x 15pin SATA power connector
Transfer Rate Up to 64Gbps (depending on SSD speed)
Support SSD Capacity No limitation
Drive Cooling 2 x 40x40x20mm fan
Structure / Material Full metal
Hot Plug Yes
Product Dimension (L x W x H) 140.3 x 146 x 41.3mm
Product Net Weight 911.2g
Package Gross Weight 945.7g
Drive Activity LED Indication Drive power: solid green; SSD access: flashing green
Package Contents Device, user manual, drive ID plugs, screws
SSD Connector Insertion Rate 10,000
Humidity 5%~65% RH
Operating Temperature 0C to 60C (32F to 140F)
Storage Temperature -35C to 70C (-31F to 158F)
Compliance CE, RoHS, REACH
Warranty 5 years
