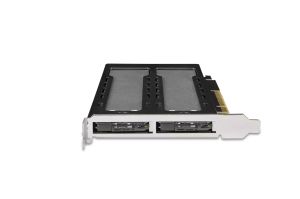

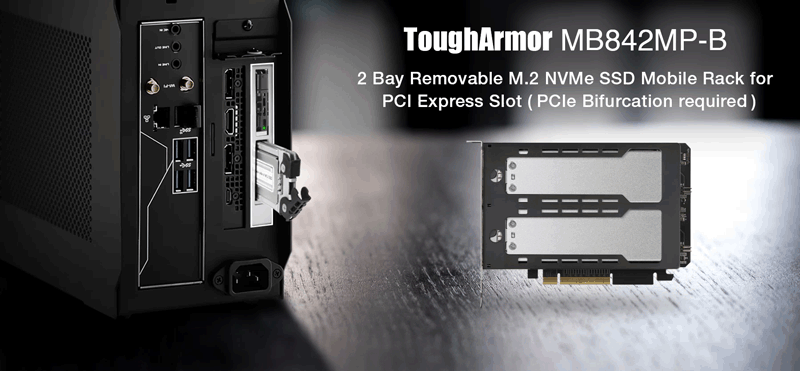

Icydock MB842MP-B ToughArmor Removable 2 Bay M.2 NVMe SSD to PCIe 4.0 x8 Mobile Rack Enclosure for PCI Express Slot (PCIe Bifurcation required)

IMG 1 of 3
Our Price:
$292.15
or quickly purchase this product
Order In from SupplierShips from our warehouse in 1-3 business days
Part Number:
536625
(?) Brand:
Icydock Web Site
Manuf No:
MB842MP-B
MB842MPB
Shipping Weight:
0.4 KG (Includes product packaging)
Estimate Shipping
Date Added:
6/12/2023
Details Files Images & Video
All stock codes associated to this product
MB842MP-B, MB842MPB
  • Note: To utilize an M.2, U.2, or U.3 NVMe SSD in a PCIe 16x or 8x slot, the motherboard or add-on card must support PCIe Bifurcation. This mode divides PCIe lanes into specific configurations like x4, x4, x4, x4 for a 16x slot or x4, x4 for an 8x slot, ensuring the SSD can be read by the system. For compatible hardware, please refer to theFAQ section. If your hardware is not listed there, pleasecontact usfor assistance.

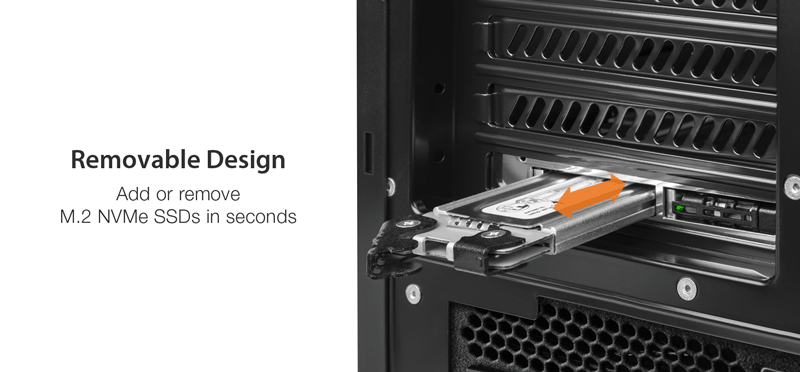

  • The ToughArmor MB842MP-B turns a PCIe 8x or 16x expansion slot into a dual removable M.2 NVMe drive bays, allowing you to swap the M.2 NVMe SSDs without needing to open the computer case.
  • Innovative Removable M.2 NVMe SSD Enclosure
    A typical M.2 drive is installed on a motherboard or a riser card and is secured by a small screw. Additionally, the physical installation process is very troublesome and time-consuming. The ToughArmor MB842MP-Bs removable drive tray design utilizes the PCI express slot to make the M.2 SSD installation and removal process completely hassle-free.
  • State of the Art Tool-less M.2 Drive Installation
    The tool-less M.2 NVMe SSD installation design takes less than five seconds to complete, saving you the hassle of dealing with tiny easy-to-lose screws.
  • The patent-pending adjustable M.2 locker secures the M.2 NVMe SSD (2230, 2243, 2260, 2280, 22110) onto the drive tray by sliding the M.2 locker towards the SSD to lock the M.2 SSD in place.
  • Optimal Cooling Efficiency
    The specialized slim M.2 drive tray is made of thick aluminum and acts as a heatsink to dissipate heat generated by the M.2 NVMe SSD.
  • The included thermal pad fills the gap between the contact surface and transfers heat away from M.2 NVMe SSD to the larger aluminum surface, allowing airflow to move the heat away quickly.
  • EMI Grounding Technology
    Grounding your M.2 NVMe SSD is critical, especially during frequent drive swaps due to static shocks. Our adjustable M.2 locker will clip into the SSD screw hole and ground the drive throughout the tray and the enclosure.
  • Maximum Compatibility
    The ToughArmor MB842MP-B is designed for the PCIe slot and is compatible with PCIe 3.0/4.0 x8 and x16 slots.

    Note: PCIe Bifurcation mode (x4, x4, x4, x4 for PCIe 16x slot or x4, x4 for PCIe 8x slot) is required to access both M.2 NVMe SSD.
  • Superior PCIe 4.0 Performance
    The advantage of utilizing the PCIe 3.0/4.0 interface is that it provides power and data through a single PCIe slot, reducing the systems cable clutter. In addition, the blazing-fast 64Gbps transfer speed is 10x faster than SATA III, making it an ideal solution for data-intensive applications such as machine learning, cloud computing, data mining, or even image processing.
  • Rugged Protection for the Harshest Environments
    The ToughArmor MB842MP-B is equipped with solid plastic, metal housing, and full metal drive trays to ensure a long product life and comes with a 5-year warranty.
  • Packed with Features

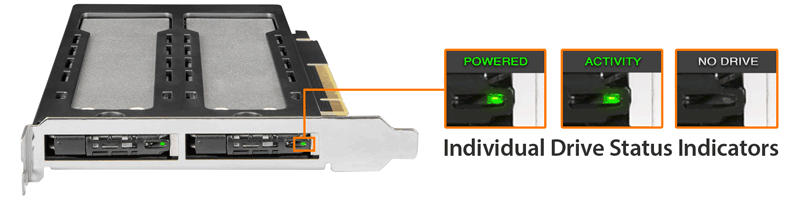

    The ToughArmor MB842MP-B is built with drive activity LED indicators on each drive tray to show the drive power and activities. The LED will automatically power off when no drive is detected to save energy.

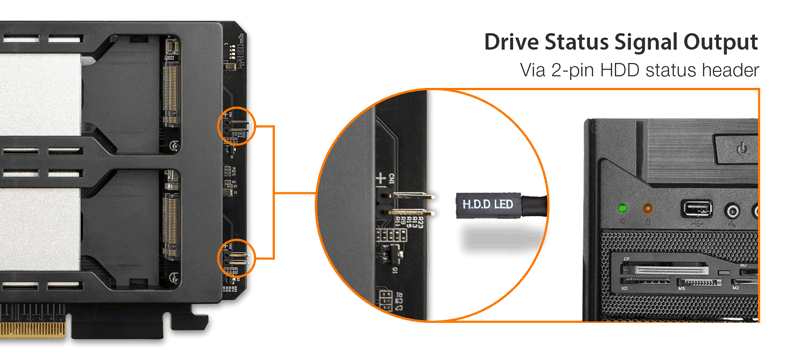

  • The optional 2-pin HDD activity signal output (cable is not included) allows you to transfer the drive activity signal to the computer case or LED panel and provide an alternative view at the desired location.
  • Wide Range of Compatibility
    The specially designedMB840TP-Bremovable drive tray effortlessly enables seamless interchangeability across various models.
Customizable ICY DOCK Drive Enclosures: Tailored to Meet TAA &UL Certification Standards and More!
At ICY DOCK, we understand the paramount importance of adhering to various industry and safety standards. While our standard products are already crafted with the highest quality in mind, we also provide our customers with the option to customize ICY DOCK drive enclosures and mobile racks to meet their specific certification requirements. This includes standards such as TAA and UL to wide temperature tests.

Our dedicated team is fully prepared to adjust product materials and designs to ensure complete compliance. Furthermore, we offer comprehensive guidance to our clients throughout the certification process. Our goal is to not only meet precise specifications but also ensure that our products successfully pass stringent tests. Below, you'll find a detailed table listing all the optional certifications that can be tested with our customizable solutions.
Optional Certifications Available for ToughArmor MB842MP-B
TAATrade Agreements Act Compliance
ULSafety Standard Certification
UL94Flammability of Plastic Materials
FCCFederal Communications Commission Compliance
Wide TemperatureMIL-STD-810H - Method 501.7 &502.7
Customizing ICY DOCK products for specific certifications involves fees for the creation of the certificates, including necessary testing. Please note that some certificates may require recurring fees to remain valid. For more details and inquiries,please contact us at[email protected]
Main Features

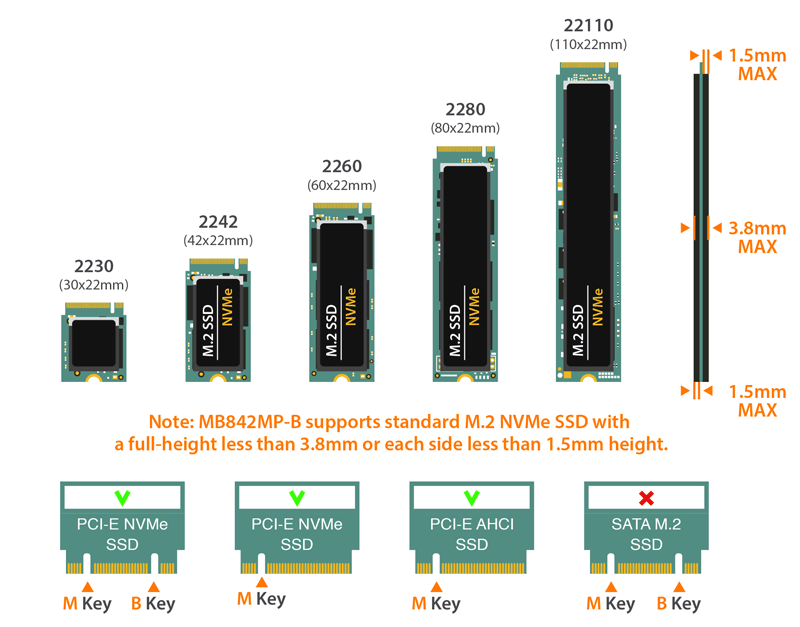

Fits 2x M.2 PCIe NVMe SSD from 30-110mm (2230, 2243, 2260, 2280, 22110)
Uses 1x PCIe 3.0/4.0 x8 or x16 slot (PCIe Bifurcation x4, x4, x4, x4 for PCIe 16x and x4, x4 for PCIe 8x is required to access both drives)
Installs to a single-width full-height PCIe express slot
Removable drive tray with tool-less drive installation for easy drive maintenance
Eagle-hook lock system keeps the drive secured in the enclosure
EMI- Grounding protects the hard drive from electrical damage
Active-Power Technology (APT) saves power by shutting the device when no drive is installed
PCIe interface provides power and data transfer to reduce cable clutter
The included thermal pad conducts heat from the drive to the metal drive tray
Optional HDD activity signal output lets you transfer the drive activity signal to the computer case
Industry-leading 5-year limited warranty against all defects
Complimentary support from a professionally trained US-based technical support agent

Specification
Model NumberMB842MP-B
ColorBlack &silver
Support Drive Size2 x M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110)
Compatible Drive TypeM.2 PCIe 3.0/4.0 NVMe SSD
Number of Drives2
Support Drive Length30mm 110mm
Drive Bay1 x PCIe 3.0 or 4.0 x8 / x16 expansion slot (motherboard required PCIe x8 slots bifurcated into x4/x4 or PCIe x16 slots bifurcated into x4/x4/x4/x4)
Host InterfacePCIe 4.0 x8
Power InputVia PCIe
Transfer RateUp to 64Gbps (depending on drivespeed)
Support SSD CapacityNo limitation
Drive CoolingMetal heat dispersion with passive cooling
Structure / MaterialMetal with partial ABS plastic
Product Dimension (L x W x H) 171 x 120.8 x 21.6 mm
Product Net Weight232.5g
Package Gross Weight336.8g
Drive Activity LED IndicationDrive power: solid green; Drive access: flashing green
Package ContentsDevice, user manual, screw, thermal pads
Connector Insertion Rate5,000
Humidity5%~65% RH
Operating Temperature0C to 60C (32F to 140F)
Storage Temperature-35C to 70C (-31F to 158F)
ComplianceCE, RoHS, REACH
Warranty5 years limited warranty
