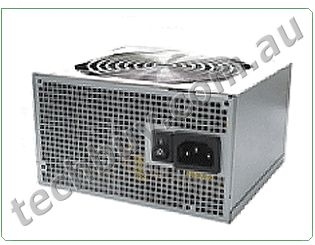

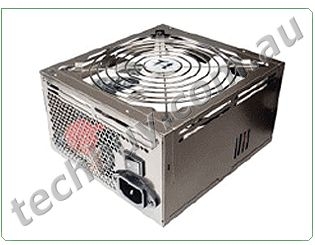

Extreme Quiet 14cm ball-bearing QFan technology. |
|
|
Energy Saving: 80 PLUS requirement achieved to make PC systems more energy-efficient. |
|
|
Unique patented designed blade shape and a 360 open frame, effectively reducing noise. |
|
|
Stable 750W continuous output. |
|
|
Powerful single +12V rails (combined loading of 60A). |
|
|

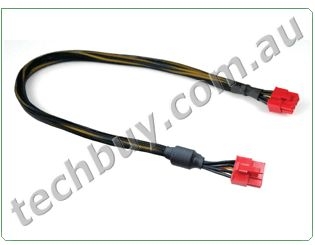

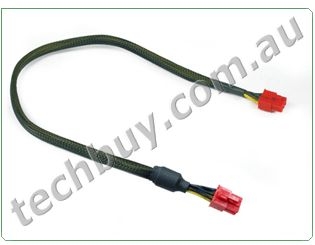

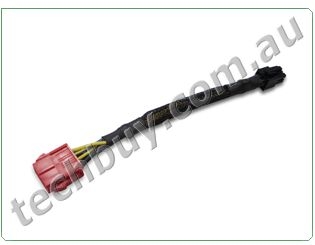

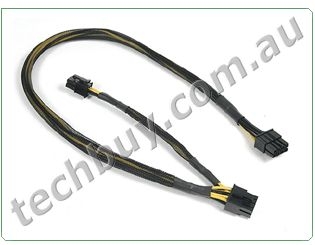

Supports three 6pin & three 8pin PCI-E connectors for future graphic card upgradability. |
|
|
Environment friendly, Complying with RoHS & WEEE regulations |
|
|
Complies with ATX 12V 2.2 & EPS 12V 2.91 version |
|
|
Support Dual core CPU, Quad core CPU, NVIDIA SLI and ATI Crossfire Multi-GPU Technologies. |
|
|

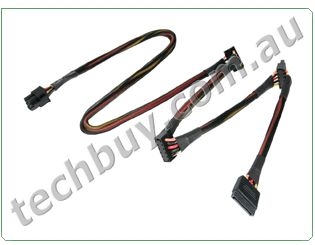

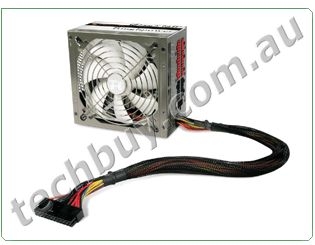

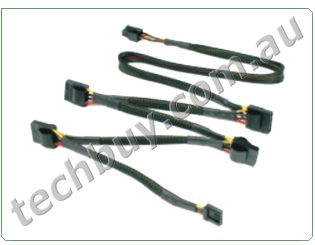

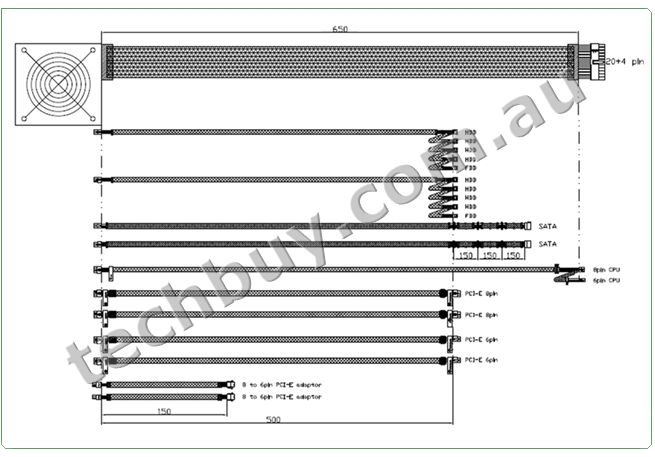

Modularised Cable Management for best air flow. |
|
|
Japanese made capacitors.
|
|
|
Green power design that meets energy star, blue angel requirements
|
|
|
Strict voltage regulation (3%): provides steady voltage for system. |
|
|

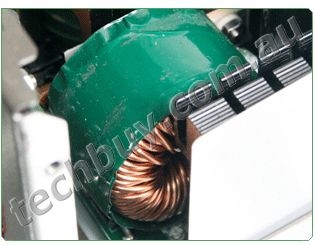

Universal input(100V 240V) & Active Power Factor Correction (PF>0.99) |
|
|
High reliability: MTBF>120,000 hours. |
|
|
Over Current, Over Voltage, and Short-Circuit protection. |
|
|
Safety / EMI Approvals: CE, TUV, FCC, UL, CUL, GOST and BSMI certified. |
 |
|
|
|
 |
Stable Voltage Regulation (3%) |
| |
Tight voltage regulation makes voltage stable and also protects our customers system from the damage
|
| |
caused by voltage fluctuations.
|
| |
|
|
Long Life Expectancy |
| |
Over 120,000 hours of MTBF (Mean Time between Failures) goes above and beyond all ATX specifications. |
| |
|
|
Independent +12V rails |
| |
Both Toughpower QFan 850W and 750W have powerful single +12V rail.
|
| |
Besides, Toughpower QFan 1000W has dual powerful +12V rails to provide superior performance for PC system.
|
| |
|
|
Meet Energy Star and Blue Angel Requirement
|
| |
Toughpower QFan 850W come with eco-friendly design to meet the Energy Star and Blue Angel standards. |
|
Ready for Enthusiast
|
| |
Toughpower QFan 850W support Quad Core CPU and all Multi-Core GPU technologies. |
|
Safety Guard
|
| |
Toughpower QFan 850W come with industry-leading protection circuitry: Over Power, Over Current, Over Voltage, and Short- Circuit Protection. |
|
Global Input
|
| |
Toughpower QFan 850W come with 100V~240V automatic adjustment & Active Power Factor Correction (PF>0.99) for world-wide usage. |
|
High +5VSB Output
|
| |
Built-in higher +5VSB (from 3A to 3.5A(Peak Current)) supports up to 12 USB devices. Also, even the system power is off, USB devices can still be charged by the 3A sustained output. |
|
Safety / EMI Approvals: |
| |
CE, TUV, FCC, UL, CUL, GOST and BSMI certified. |
|
|
 |
What is QFan ?
|
|
|

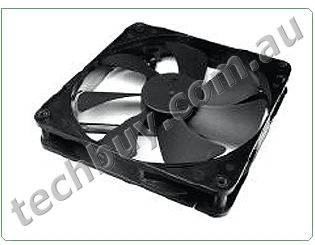

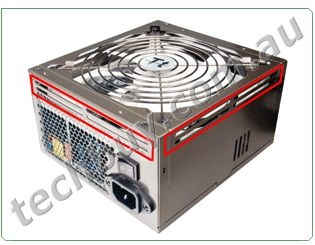

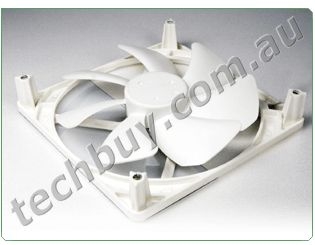

The 14cm QFan is Thermaltakes innovative patent technology possessing a unique 360 frameless design and a 5-way air inlet, greatly increase the air flow and reduce the noise of wind shear.
Please see Figure 1, Figure 2
|
|
Why use QFan ?
|
|
|

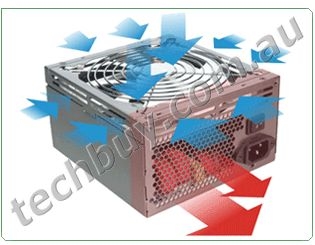

The QFan special five way air-intake housing design creates the best heat dissipation environment for the frameless 14cm QFan at minimal noise level. Therefore, the fan generates only 15dB noise level at less than 20% of rated load without compromising performance. Please see Figure 3, Figure 4, Figure 5
|
|
|
|
|
|
|
How QFan performances ?
|
|
|
The 14cm QFan effectively decreases the noise level inside the PSU. See test results below:
|
| |
Standard 2300RPM Fan dB(A)
|
2300RPM QFan dB(A)
|
|
Idle (<20% Load)
|
20
|
15
|
|
4.9V(20~50% Load)
|
30.5
|
26.4
|
|
6V(60% Load)
|
33.1
|
28.7
|
| 12V(100% Load) |
44
|
40
|
|
|
Note:
1. The fan's highest speed is 2300rpm +/- 10%
2. Fan voltage is define for the loading of current Toughpower fan curve.
3. "Background noise"was test at Anechoic Chamber while the power supply is not working
4. Test distance is one meter
|
|
|
|
Model
|
W0203
|
|
Power
|
750W
|
|
Dimension
|
150mm(L)x160mm(W)x86mm(H)
|
|
Noise
|
15dBA (20% loading)
26.4dBA (20%~50% loading)
28.7 dBA (60% loading)
40 dBA (100% loading)
|
|
Switches
|
ATX Logic on-off additional power rocker switch
|
|
PFC
|
Active PFC (PF > 0.9)
|
|
Cooling System
|
14cm QFan
SPEED: 2300 250 RPM
AIR FLOW: 113.77 CFM
BEARING TYPE: Two Ball Bearing
Temp. Auto Control
|
|
Power Good Delay
|
100-500 ms
|
|
Efficiency
|
Over 80%
|
|
Hold-up Time
|
16ms at 80% of full load at 230Vac input
|
|
INPUT
|
|
Input Voltage
|
100 VAC ~ 240 VAC
|
|
Input Frequency Range
|
47 ~ 63 Hz
|
|
MTBF
|
120,000 hrs minimum
|
|
Input Current
|
115Vac /10A max. 230Vac /5A max.
|
|
ENVIRONMENT
|
|
Operating Temp.
|
10 to 50
|
|
Storage Temp.
|
-20 to 70
|
|
Operating Humidity
|
20% to 90%, non-condensing
|
|
Storage Humidity
|
5% to 95%, non-condensing
|
|
PROTECTION
|
|
DC rail
|
Trigger Point/Range
|
|
Over Voltage Protection
|
+3.3V point
|
4.5 Vmax
|
|
+5.0V point
|
7.0 Vmax
|
|
+12.0V point
|
15.6 Vmax
|
|
Over Current Protection
|
Foldback at 110%~140% over peak load
|
|
Short Protection
|
All output to GND
|
|
OUTPUT
|
|
AC INPUT
|
Input Voltage: 100V~240V
Input Current: 115Vac /10A Max.
230Vac / 5A Max.
Frequency: 47~63Hz
|
|
DC OUTPUT
|
+3.3V
|
+5V
|
+12V
|
-12V
|
+5VSB
|
|
Max Output Current
|
30A
|
28A
|
60A
|
0.8A
|
3A
|
|
Min Current
|
0.5A
|
2A
|
0.8A
|
0.0A
|
0.0A
|
|
Peak Current
|
180W
|
720W
|
9.6W
|
15W
|
|
Total Power
|
750W
|
|
|
What is Eco-Friendly?
|
|
|
|
| Thermaltake aims to develop power supply units that make contributions to preserving the environment. In this way, all Thermaltakes power supply designers take the Eco-Friendly Design guidelines into account when developing new products. Eco-Friendly Design is an engineering perspective in which at least one of the four eco-friendly design priorities (shown below) is considered and optimized. |
|
Energy Saving
|
|
 |
Thermaltakes power supply designers are committed to reduce the energy consumption needed to use our products. Currently many of Thermaltake high performance power supply units have been certified by 80 PLUS Energy Efficiency Program for their excellent ability to energy saving. Thermaltake will continue to enhance the efficiency for our power supply units and also reduce the energy consumption needed to power our PSUs.
|
|
|
|
|
|
Green Material
|
|
| Thermaltake is committed to reduce or substitute the use of hazardous substances. We maintain strict control over the chemical substances used, and take steps whenever possible to avoid the use of hazardous substances. Currently all Thermaltake power supply units are made from green materials and all RoHS compliant. |
|
Extremely Quiet
|
|
|
Thermaltake is committed to reduce the noise generated by our power supply units. Researches have shown that noise can be annoying and even harmful to human health. To protect human health, some of our specific PSUs come with the patented QFan technology which minimizes the noise to the lowest level.
|
|
|
Recyclable
|
|
| Thermaltake is committed to incorporate recyclable materials into all the new power supply units whenever possible. Therefore all Thermaltake products comply with WEEE which requires recycling of electronic and electrical products. |
|
|
