, ADCB2SAE, ADCB2SA-E

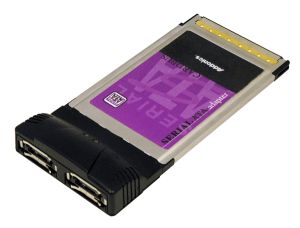

The Addonics CardBus eSATA adapter brings the latest eSATA technology to the Notebook user via the CardBus slot. Together with Addonics' family of eSATA cabling system, Notebook users can enjoy the fastest performance with any external storage devices, as much as 3 times the data transfer rate of the USB 2.0. The CardBus eSATA adapter, incorporated the new eSATA connector, provides secured cable connection, improved durability, increased EMI protection and up to 2 meters cable length for external SATA connection. (For more detail on this new SATA external connector, please review the following white paper posted on SATA-IO.org)
Want to know more about Serial ATA? Please visit our tutorial page
Product Features
- Add two eSATA ports to Notebook PC via one CardBus slot
- Fully compliant with Serial ATA 1.0 standard
- Maximum 150 MB/sec. data throughput, same performance as PCI BUS
- Support hard drive of capacity 137 GB or higher in one big partition
- Work with any Addonics Pocket Series and Mobile Series devices using Addonics optional External Serial ATA interface cable
- eSATA connector for more secure connection, reliability and supports up to 2 meters cable length
- Drivers for Window NT 4.0, 98SE, Me, 2000 and XP, Vista
Specifications
- 2 eSATA ports
- Serial ATA 1.0 compliant
- 150 MBytes/sec
- PC card 32-bit CardBus compliant
- SATA chip set SiI3512
- Independent 256-byte FIFOs (32 bit * 64 deep) per Serial ATA channel for host reads and writes
- Supports Spread Spectrum in receiver
- Drivers for Window NT 4.0, 98SE, Me, 2000 and XP, Vista
- Requires one free CardBus slot
- Dimension (W x D x H) - 53 x 119 x 14 mm / 2.08 x 4.68 x .55 inches.
- Weight - 45 grams
- 1 year warranty
