All stock codes associated to this product
AD2SA6GPX1
Package content:

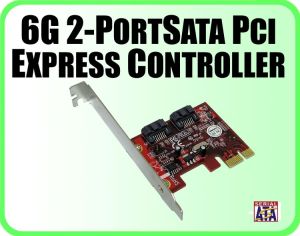

6G 2-port SATA PCI-Express Controller, low profile bracket, Driver CD, User guide

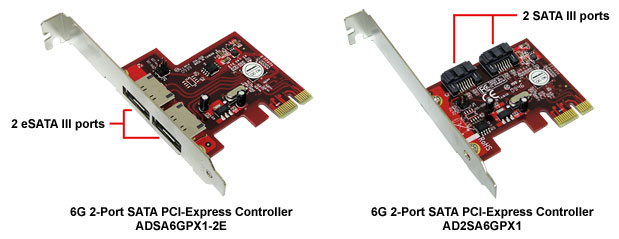

This new family of PCI Express controllers offer the latest 6G/sec SATA III performance at an amazingly affordable price. Comes with choice of 2 eSATA III ports for external SATA connection or 2 standard SATA III ports for internal drives, both controllers can also be installed in low profile PCs using the bundled low profile bracket.
Product Features
- Two 6.0 Gbps SATA III ports or eSATA III ports on PCI-Express 1X slot
- Install into both standard height or low profile system with included brackets
- Fully compliant with SATA II and SATA 1.0 standard
- Maximum 6Gbits/sec*
- Supports Native Command Queuing (NCQ)
- 2 LED connections for drive activity
- Hot swappable - drive can be removed and added without system shut down or restart **
- Compatible with Windows 2000, Windows XP, Windows 2003 Server, Vista, Windows 7
*To achieve the maximum throughput, the PCI-Express slot must be version 2.0 or higher. Older system with PCD-Express 1.0 will limit the speed to 2.5 Gbps. Performance per port may decrease if both ports are transferring data simultaneously due to the limited throughput of the PCI-Express slot. Please visit following web page for more information of ExpressCard v1.0 and v2.0 https://en.wikipedia.org/wiki/PCI_Express
*** Hot swapping hard drive has been tested on Windows OS only.
Specifications
- 6.0 Gbps SATA III ports or eSATA III ports
- Supports 5Gbps PCI-Express 2.0
- Fully compliant with PCI-Express 2.0
- Supports SATA III transfer rate of 6.0Gbps, 3.0Gbps, 1.5Gbps
- Supports ATA and ATAPI commands
- Supports Native Command Queuing (NCQ)
- 48 bits LBA, support HDD partition larger than 137GB Two Pin headers on board for LED connection
- Temperature: Operating 0 to 70 degree C.
- Storage: -25 to 90 degree C.
- Humidity: Operating 20% to 80%
- Non Operating 15% to 90%
- Completely with drivers for Windows 2000, Windows XP, Windows 2003 Server, Vista, Windows 7
- Dimensions:
- AD2SA6GPX1 - (W x D x H) - 65mm x 10mm x 55mm (2.56in x .39in x 2.17in)
- ADSA6GPX1-2E - (W x D x H) - 67mm x 11mm x 70mm (2.64in x 0.39in x 2.76in)
- Weight:
- AD2SA6GPX1 - 30g ( 1.16oz)
- ADSA6GPX1-2E - 34g (1.20oz)
- Operating temperature range: 0 C to +70 C
- Operating humidity range: 5% to 90%
- Storage temperature range: -40 C to +85 C
- Storage humidity range: 5% - 95% (non condensing)
- 1 year warranty
- RoHS Compliant
