G84-4700 Programmable Keypad
Compact Keypad Featuring ML Technology with Gold Crosspoint Contacts
Main Applications
Numerical input
Control systems
Frequent entry of numbers
Extension for notebook computer
Features
Programmable 21-key numeric layout
Equally suitable for left-handed and right-handed users
Low space requirements
All keys can be user-defined with up to 24 characters per key
4 additional user-programmable function keys, can be labeled individually
Digits can be entered independently of the status of the Num Lock in the system (operation on notebook PC)
Variable decimal separator [.], [,], [00], or [000]
External standard keyboard can be connected
Matches design of Cherry keyboards G84-4100
Uses mechanical keys from our ML series with high-precision key action; small physical dimensions:
Reliability: MTBF: 550,000 hours
Main Part Numbers
G84-4700LPBUS-0
Light grey, PS/2 Interface, 21 programmable keys, 4 relegendable, ML keyswitches, second PS/2 port for keyboard
G84-4700LPBUS-2
Black, PS/2 Interface, 21 programmable keys, 4 relegendable, ML keyswitches, second PS/2 port for keyboard
G84-4700 LUCUS-0
Light grey, USB Interface, 21 programmable keys, 4 relegendable, ML keyswitches
G84-4700 LUCUS-2
Black, USB Interface, 21 programmable keys, 4 relegendable, ML keyswitches
(
1) International Layouts
US Belgian/SwissEnglish (US)/English (UK) DE Germany DK Danish/Norwegian ES Spain FR France IT Italy SF Sweden/Finland
Technical Data
Power Supply
3.3-5.0 VDC 10% SELV
Connecting Cable
approx. 1.75 m lon
Weight approx. 260 g
Storage Temperature
-20C to 60C

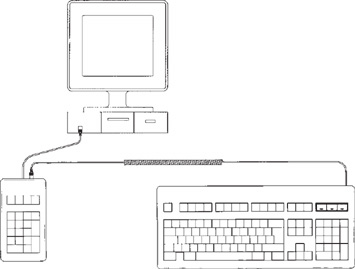

Connection Diagram
Operating Temperature
0C to 50C
Dimensions of Housing
90 x 132 x 36 mm
Cherry MX Switches with Gold Crosspoint Contacts
Actuation Characteristics
Soft contact
