Our Price:
$7.70
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days

Part Number:
16495
(?) Brand:
Manuf No:
SP1202512M
Shipping Weight:
0.1 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
SP1202512M
Please Note: No Plug on end of Wire

Specifications

  • Type: SP1202512M

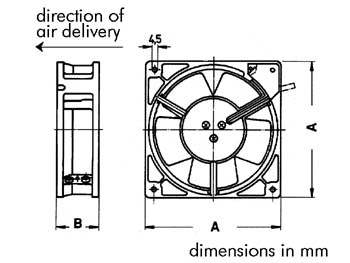

  • Size: 4.7" x 4.7" x 1.0"
  • Bearing: Sleeve
  • Rated Voltage: 12V DC
  • Air Flow: 64.8CFM
  • Current: 0.25A
  • Speed: 2500rpm
  • Noise: 46dBA
  • Connection: Leads
  • Construction: Plastic Housing and Blades (to UL94V-0 rating)
  • Operating Temperature:
    • Sleeve Bearing: 14F to 149F
    • Ball Bearing: -23F to 167F
  • Insulation Resistance: 10Mohm min. at 500V DC
  • Dielectric Strength: 5mA max. at 500V AC (one minute)

No additional files, specification sheets, guides or documentation found for product.

Warranty: One Year

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
