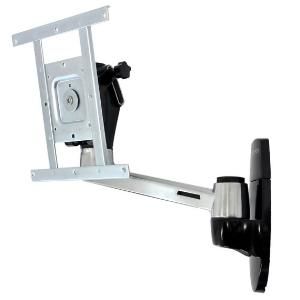

LX HD Wall Mount Swing Arm
The perfect TV wall mount: This pivot offers a flexible alternative to rigid wall mounts for displays weighing up to 23 kg. Embedded CF technology enables effortless screen adjustment for optimal viewing comfort.
Install it yourself in less than 10 minutes and enjoy comfortably watching your TV in no time!
Part Number: 45-268-026
Benefits
- Position the TV at the most comfortable viewing angle
- Effortless adjustment, no knobs or levers necessary
- Reliable solution secures your flat panel investment
- Sleek design complements your home or office style
- Easy to install: do it yourself in less than 10 minutes!
- Integrated tilt lock-down feature
Technical Specifications:
Part Number: 45-268-026
Description: LX HD Wall Mount Swing Arm (polished aluminum)
Mounting Options: Attaches directly to sturdy vertical surfaces. Includes hardware for mounting to wood stud or concrete wall Includes knob on pivot to lock position of tilt
UL Compliant: Has been tested to four times its maximum weight capacity as per UL Standard 1678 (do NOT exceed 50 lbs in actual use)
Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-474) can be ordered separately for MIS-F interface with hole pattern = 400 x 200 mm
Display depth greater than 4" (10 cm) may diminish capacity
Shipping Dimensions: 12.5" x 7.75" x 4.5" (31.8 x 19.7 x 11.4 cm)
Shipping Weight: 5.5 lbs (2.5 kg)
Warranty: Five (5) years
