All stock codes associated to this product
45269009, 45-269-009, 1687387, 698833018028

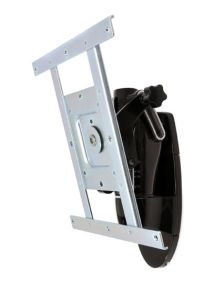

LX HD Wall Mount Pivot
Part Number: 45-269-009
The perfect TV wall mount: This pivot offers a flexible alternative to rigid wall mounts for displays weighing up to 23 kg. Embedded CF technology enables effortless screen adjustment for optimal viewing comfort.
Install it yourself in less than 10 minutes and enjoy comfortably watching your TV in no time!
Benefits
- Position the TV at the most comfortable viewing angle
- Most affordable solution for medium displays
- Effortless adjustment, no knobs or levers necessary
- Easy to install: do it yourself in less than 10 minutes!
- Reliable solution for your flat panel investment
- Integrated tilt lock-down feature
Technical Specifications:
Part Number: 45-269-009
Description: LX HD Wall Mount Pivot (black)
Mounting Options: Attaches directly to sturdy vertical surfaces. Includes hardware for mounting to wood stud or concrete wall
Includes knob on pivot to lock position of tiltDisplay depth greater than 4" (10 cm) may diminish capacity
UL Compliant: Has been tested to four times its maximum weight capacity as per UL Standard 1678 (do NOT exceed 50 lbs in actual use)
Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-474) can be ordered separately for MIS-F interface with hole pattern = 400 x 200 mm
Shipping Dimensions: 9" x 9" x 3.9" (22.9 x 22.9 x 9.9 cm)
Shipping Weight: 4.55 lbs (2.1 kg)
Warranty: Five (5) years
