HOME / Back -> Wallmounts | Monitor Arms -> Monitor Arms -> Ergotron

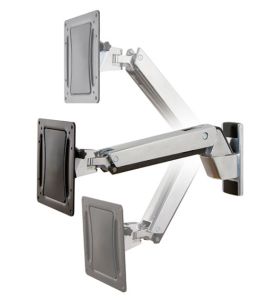

Ergotron Wall Mount Interactive Arm - Up to 30"-55" LCD Monitor, Tilt & Pan For Maximum Viewing Flexibility, Tilts Forward 15 Degree, Tilts Back 10 Degree - Polished Aluminum

IMG 1 of 1
Our Price:
$452.55
or quickly purchase this product
Backorder
Part Number:
197744
(?) Brand:
Ergotron
Manuf No:
45-296-026
45296026
Shipping Weight:
4 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
45296026, 45-296-026, 1845971, 698833021004
Interactive Arm, HD

Accommodate the active TV positioning needs of today and tomorrow. Lift, swing or turn your display in any direction! Features 20 inches (51 cm) of vertical adjustment and 17.5-inch (45 cm) motion adjustment to either side.

Now anyone can effortlessly move their TV into multiple positions with only a light touch. Your screen will seemingly float on air, being easily adjusted between standing and seated heights. No more awkward viewing angles and sore necks.

Part Number: 45-296-026

Benefits

  • Patented Constant Force technology enables light-touch adjustments
  • Extends 24" (61 cm) from wall when in use and can be fully retracted to 5.5" (14 cm) when not in use
  • The revolutionary design allows interaction with your TV by moving the screen to where you want it when watching movies, gaming, exercising and more
  • Provides smooth, continuous vertical and horizontal movement of the TV/display in all directions
  • Gravity pivot enables tilting capabilities without the need of knobs or levers
  • Improves ergonomic viewing for TVs/displays mounted high on the wall
  • Constructed from polished aluminum and black trim for maximum strength and bold aesthetics
  • Tilt and pan for maximum viewing flexibility
  • Level the screen at any position with +/- 5º of post-installation rotation
  • Cable management clips on the underside of the arm route and hide wires
  • Easy to use: simple installation and effortless operation
  • Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free height adjustment

Technical Specifications

LCD Size
LCD Size
30"55"
Capacity
Capacity
1840 lbs
8.218.2 kg
Lift
Lift
20"
51 cm
Tilt
Tilt
25
Pan
Pan
180
Rotation
Rotation
10
VESA
VESA
MIS-E/F*

Part Number: 45-296-026
Description: Interactive Arm, HD (polished aluminum) Includes arm, wall mount bracket, VESA adapter brackets, complete hardware kit Tilts forward 15, tilts back 10
Rotation of +/-5 provides leveling adjustment of screen in any position * Mounting Standards: VESA FDMI MIS-E (hole pattern: 200 x 100 mm); VESA FDMI MIS-F (200600 mm by 200400 mm) To fix the tilt position of the display in place, use the lock-down knob on the gravity pivot
Shipping Dimensions: 26" x 12" x 7.5" (660 x 305 x 191 mm)
Shipping Weight: 23 lbs (6.8 kg)
Warranty: Five (5) years
