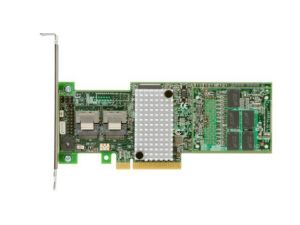

IBM Lenovo ServeRAID M5110 SAS/SATA Controller - 8-Port SAS/SATA-III, 2-Port Mini-SAS - PCI-Ex8

No Longer Available

Part Number:

219124

(?) Brand:

IBM Web Site

Manuf No:

81Y4481

Shipping Weight:

0.5 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

81Y4481, 883436135344

ServeRAID M5110 SAS/SATA Controller for IBM System x

Basic Specification

The IBM ServeRAID M5110 SAS/SATA controllers are part of the IBM ServeRAID M Series family of products that offers a complete server storage solution, consisting of RAID controllers, cache/flash modules, energy packs, and software feature upgrades in an ultra-flexible offerings structure. These products are optimized to deliver the performance that is demanded by the ever-growing I/O requirements of today's enterprises.

DEVICE FEATURES
Bus Type:	PCI Express 3.0
Connector:	2 x mini-SAS
Interface:	SAS
Processor Speed:	800 MHz
Processor:	PowerPC
RAID Level:	0
S.M.A.R.T. Supported:	Yes
Transfer Rate:	6

DIMENSION
Depth (mm):	168.0
Height (mm):	15.0
Weight (Kg):	0.1
Width (mm):	69.0

OTHER FEATURES
Compatibility:	IBM x3500, x3530, x3550, x3630, x3750
OS Supported:	Windows Server 2008
Other Features:	* Eight internal 6 Gbps SAS/SATA ports* Two internal Mini-SAS connectors (SFF-8087)* Support for up to 64 virtual drives, up to 128 drive groups, up to 16 virtual drives per one drive group, and up to 32 physical drives per one drive group* Support for logical unit number (LUN) sizes up to 64 TB* Configurable stripe size up to 1 MB* Compliant with Disk Data Format (DDF) configuration on disk (COD)

PRODUCT
Brand Name:	IBM
Form Factor:	MD2
Manufacturer Web Site:	https://www.ibm.com
Product Model:	M5110
Product Type:	SAS/SATA Controller

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 year return to base

Full manufacturers warranty details are available at the manufacturers (IBM) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
