All stock codes associated to this product
US224AT, US224-AT, USAUS224, USA-US-224, 4710423778764

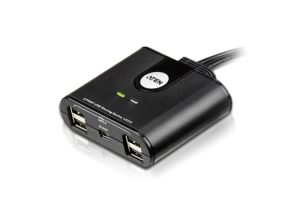

US224
2-Port USB Peripheral Sharing Device
Overview

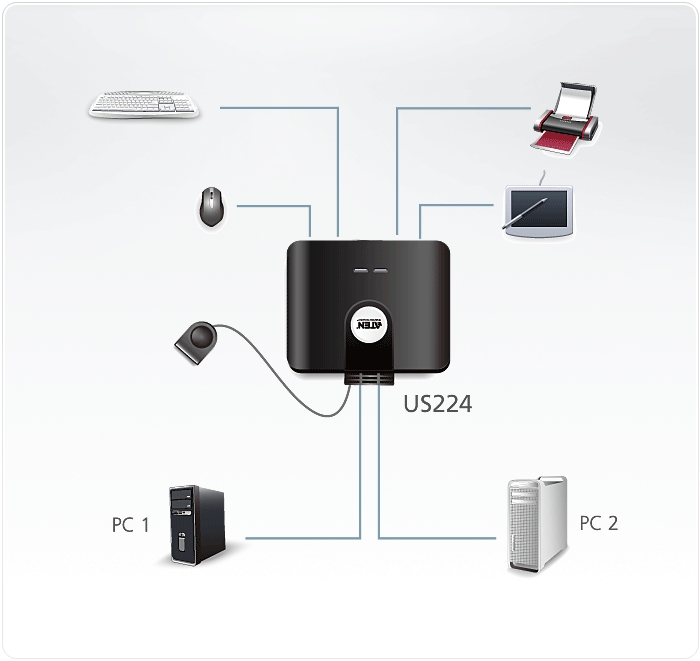

The US224 is a 2-port USB peripheral sharing device that enables 2 computers to share the use of 4 USB devicesa keyboard, mouse and up to two peripheral devices. It eliminates the added expense of having a separate USB keyboard, mouse and peripheral device(s) for each computer. The US224 all-in-one design allows for a neat and tidy installationno need to connect 2 separate USB cables to the computer, thus eliminating cable clutter.
For extra convenience, it features an external remote port selector that can simplify desktop layout, and select which computer needs to use the USB devices. US224 is the ideal way to share USB peripherals in a multimedia office environment.
Patent No. US 6564275
Package Contents
- 1x US224 2-Port USB Peripheral Sharing Device
The US224 is a 2-port USB peripheral sharing device that enables 2 computers to share the use of 4 USB devicesa keyboard, mouse and up to two peripheral devices. It eliminates the added expense of having a separate USB keyboard, mouse and peripheral device(s) for each computer. The US224 all-in-one design allows for a neat and tidy installationno need to connect 2 separate USB cables to the computer, thus eliminating cable clutter.
- 4 built in USB portsall-in-one design allows for a neat and tidy installation that reduces cable clutter
- Enables 2 computers to share 4 USB devicesa USB keyboard, mouse and up to two peripheral devices
- Simple port selection via remote port selector for convenient switch placement
- USB 2.0 compliant
- Multiplatform supportWindows, Linux ,Mac and Sun
- LED indicators display port focus
- Overcurrent protection
- Non-powered (supports optional USB power adapter)
- Hot pluggable
Specifications:
Computer Connections |
2 |
Computer Selection |
Remote port selector |
Connectors |
Computer |
2 x USB Type A Male (Black) |
Device |
4 x USB Type A Female (Black) |
Power (Optional) |
1 x USB mini B Female (Black) |
Cable Length |
USB Cable |
2 x 1.2 m |
Remote Port Selector |
1.8 m |
LEDs |
Selected |
2 (Green) |
Environment |
Operating Temp. |
5 - 40C |
Storage Temp. |
-20 - 60C |
Humidity |
0 - 80% RH, Non-condensing |
Physical Properties |
Housing |
Plastic |
Weight |
145 g |
Dimensions (L x W x H) |
11.10 x 7.80 x 2.50 cm |
