All stock codes associated to this product
US424AT, US424-AT, ATUS424, US-424
Overview

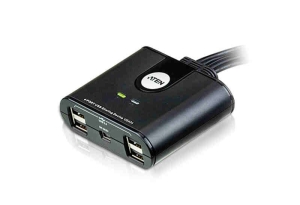

The US424 is a 4-port USB peripheral sharing device that enables 4 computers
to share the use of 4 USB devicesa keyboard, mouse and up to two peripheral
devices. It eliminates the added expense of having a separate USB keyboard,
mouse and peripheral device(s) for each computer. The US424 all-in-one design
allows for a neat and tidy installationno need to connect 4 separ
For extra convenience, it features an external remote port selector that can
simplify desktop layout, and select which computer needs to use the USB devices.
US424 is the ideal way to share USB peripherals in a multimedia office
environment.
Package Contents
- 1x US424 4-Port USB Peripheral Sharing Device
Features
-
4 built in USB portsall-in-one
design allows for a neat and tidy installation that reduces cable
clutter
-
Enables 4 computers to share 4 USB
devicesa USB keyboard, mouse and up to two peripheral devices
-
Simple port selection via remote
port selector for convenient switch placement
-
USB 2.0 compliant
-
Multiplatform supportWindows,
Linux ,Mac and Sun
-
LED indicators display port
focus
-
Overcurrent
protection
-
Non-powered (supports optional USB
power adapter)
-
Hot pluggable

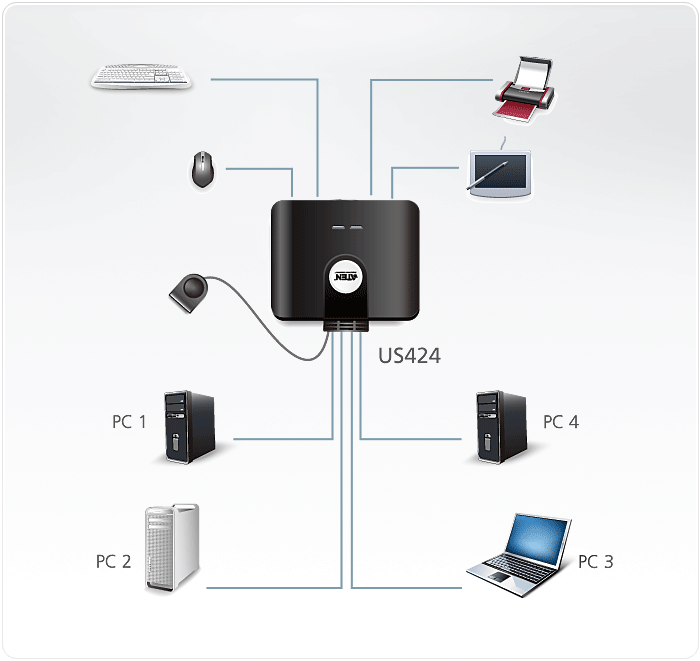

Diagram
Specifications
|
Computer
Connections |
4 |
|
Port
Selection |
Remote port
selector |
|
Connectors |
|
Computer |
4 x USB Type A Male
(Black) |
|
Device |
4 x USB Type A Female
(Black) |
|
Power
(Optional) |
1 x USB mini B Female
(Black) |
|
Cable
Length |
|
USB
Cable |
2 x 1.2 m / 2 x 1.8
m |
|
Remote Port
Selector |
1.8
m |
|
LEDs |
|
Selected |
2 (Green /
Orange) |
|
Environmental |
|
Operating
Temperature |
040C |
|
Storage
Temperature |
-2060C |
|
Humidity |
080% RH,
Non-condensing |
|
Physical
Properties |
|
Housing |
Plastic |
|
Weight |
0.22 kg ( 0.48 lb
) |
|
Dimensions (L x W x
H) |
8.24 x 6.65 x 2.53
cm |
|
(3.24 x 2.62 x 1
in.) |
|
* The specification and
pictures are subject to change without notice. |
|
|
* All trademarks and
logos are the properties of their respective holders. |
|
