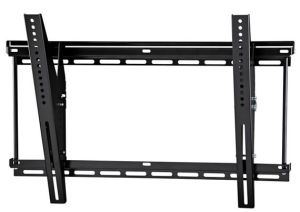

Neo-Flex Tilting Wall Mount, UHD
Part Number: 60-612
Fits most 37"63" flat panels up to 175 lbs (79 kg) and is the ideal mount for those looking for an easy-to-use large tilt mount.
Benefits
- Tilt range up to 15º to reduce glare
- Universal rails for greater panel compatibility
- Lift n’ Lock™ allows you to easily attach your flat panel to the mount
- Tension adjustment for variable tilt
- Sliding lateral on-wall adjustment
- Open architecture provides easy access to in-wall wiring
- Locking bar secures panel to mount
- Simple to install and use
- Includes complete hardware kit
Tech Specs
Screen 37"–63"
Capacity = 175 lbs 79 kg
Lift —
|
|
Part Number: 60-612
Description: Neo-Flex Tilting Wall Mount, UHD, Ultra Heavy Duty (black) Includes wall plate, two (2) tilt rails, locking bar, installation and attachment hardware
Universal Monitor Attachment: Mounting holes must fit within spacing range below...
Horizontal = 100 mm (min.) to 600 mm (max.)
Vertical = 100 mm (min.) to 400 mm (max.)
Profile off the wall = 2.7" (69 mm)
UL certified and listed to UL Standard 1678. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use)
Full compliance with RoHS directive is in progress
Shipping Dimensions: 14.6" x 33.9" x 3.2" (372 x 861 x 81 mm)
Shipping Weight: 20.5 lbs (9.3 kg)
Warranty: Three (3) years
