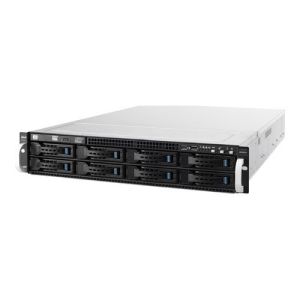

Based on the Intel Socket R E5-2600 processor platform, the ASUS RS720-X7/RS8 server offers customers assured quality of service with high memory capacity, outstanding power efficiency, quad LAN, and mass storage. It also enables comprehensive server management and flexible RAID, offering functional integration that makes it an excellent all-round choice for any IT application.
The RS720-X7/RS8 features eight SAS/SATA 2.5/3.5 hard drive bays and supports up to 24TB storage capacity in 2U. Its hot-swap design provides 24/7 non-stop service, high availability, and easy upgrades.
Up to 92% power efficiency
Equipped with 1+1 redundant 770W 80 PLUS Gold power supplies, the RS720-X7/RS8 saves users money on energy costs while maintaining strict environmental protection standards. The two power supplies also utilize a hot-swap design that allows work to continue even if one of them requires maintenance or replacement.
Extensive expandability
The expansion slot design includes up to one PCI Express 3.0 x16 slot and six PCI Express 3.0 x8 slots, meeting future expansion demands with ease.
Quad LAN support
Four LAN ports offer higher networking bandwidth with load-balancing and fault-tolerance functions. The RS720-X7/RS8 supports ASUS-made and most other available 10Gb/s LAN cards for the fastest networking currently possible.
Intelligent thermal design
The front-parallel placement of the CPU and memory guides smooth airflow throughout the chassis, while smart fan control technology adjusts fan speeds automatically based on system load.
Flexible RAID
The RS720-X7/RS8 supports optional ASUS RAID PIKE upgrade kits. With these, users can integrate server capabilities with greater data security and quickly upgrade storage from SATA to SAS.
Built-in remote server management
The web and graphical interface-based ASMB6-iKVM module lets users fully control the server with out-of-band management using the IPMI 2.0 standard for real time remote monitoring. Additionally, ASWM Enterprise provides one-to-multiple centralized management, including BIOS flashing, remote control, power control, and asset management, all via a user-friendly interface.
Specifications
- Processor / System Bus
2 x Socket 2011
*Refer to www.asus.com for CPU Support list
- Core Logic
Intel C602-A PCH
- Memory
Total Slots : 12 (4-channel per CPU, 8 DIMM for CPU1, 4 DIMM for CPU2)
Capacity : Maximum up to 384GB RDIMM/Maximum up to 384GB LRDIMM/Maximum up to 96GB UDIMM
Memory Type :
DDR3, 800/1066/1333/1600, RDIMM
DDR3, 1066/1333, LRDIMM
DDR3, 1066/1333, UDIMM
Memory Size :
1GB, 2GB, 4GB, 8GB, 16GB, 32GB RDIMM
8GB, 16GB, 32GB LRDIMM
1GB, 2GB, 4GB, 8GB UDIMM
- Expansion Slots
Low-profile
1* PCI-E x16 (Gen3 x16 Link) + 5* PCI-E x8 (Gen3 x8 Link)
Or
1* PCI-E x16 (Gen3 x8 Link) + 6* PCI-E x8 (Gen3 x8 Link)
1* PIKE Slot for Stroage Enhancement
- Storage
SATA Controller :
Intel C602-A
2 x SATA3 6Gb/s ports
4 x SATA2 3Gb/s ports
Intel Rapid Storage Technology(RST) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
LSI MegaRAID (For Linux/Windows)
(Support Software RAID 0, 1, 10 )
SAS Controller :
ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional)
ASUS PIKE 2108 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2208 8-port SAS 6G HW RAID card (Optional)
- HDD Bays
8 * Hot-swap 3.5" "HDD Bays
- Auxiliary Storage FDD/CD/DVD
1 * Slim-type Optical Drive Bay
Options: No Device / DVD-RW
(DVD-RW default for North America)
- Networking
4 x Intel 82574L + 1 x Mgmt LAN
- Graphic
Aspeed AST2300 with 16MB VRAM
- On Board I/O
2 x Serial Port Header
5 x RJ-45 ports (One for ASMB6-iKVM)
4 x USB 2.0 ports (Front x 2, Rear x 2)
1 x PS/2 mouse port
1 x Internal A Type USB Port
1 x VGA port
1 x PS/2 keyboard port
- OS Support
CentOS 5.6 32/64-bit
Windows Server 2008 R2
Windows Server 2008 R2 Enterprise
Windows Server 2008 Enterprise 32/64-bit
RedHat Enterprise Linux AS5.6/6.0 32/64-bit
SuSE Linux Enterprise Server 11.2 32/64-bit
VMWare ESX4.1/ESXi4.1
*(Subject to change without any notice)
- Management Solution
On-Board ASMB6-iKVM for KVM-over-IP
- Safety
Europe (CE, EN55022 compliance to EU Directive 89/366/EEC)
- EMI
US (FCC, CFR47 Part 15, Class A)
Europe (CE, EN55022 & EN55024)
Australia (C-TICK)
Taiwan (BSMI)
- Dimensions
615mm * 444mm * 87.0mm
- Form Factor
2U
- Weight
22Kg
- Power Supply
1+1 Redundant 770W 80PLUS Gold Power Supply
(following different configuration by region)
- Environment
Operation temperature: 10 ~ 35 / Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing)
- Accessory Box
1 x RS720-X7 User's Guide
1 x ASUS ASWM Enterprise User's Guide
1 x Bag of Screws
2 x AC Power Cable
1 x RS720-X7 Support DVD
1 x ASWM ENTERPRISE DVD
1 x ASMB6 SERIES DVD
1 x ASMB6 User's Guide
- Optional Items
Slim-type Optical Drive
(1 x DVD-RW default for North America)
Second 770W Redundant Power Supply Module
(Second Power Supply Module default for North America)
ASUS PIKE 2008 RAID card (90-S00CS0130T)
ASUS PIKE 2008/IMR RAID card (90-S00CS0140T)
ASUS PIKE 2108 H/W RAID card (90-S00CS0150T)
ASUS PIKE 2208 H/W RAID card
Part List
- Chassis
ASUS R20D 2U Rackmount Chassis
- MB
ASUS Z9PR-D12/4L Server board
- HDD Backplane
1 x RS720-X7/RS8 SAS/SATA Backplane (BP8LX-R21B) (61-C1SES0-02)
- Front Panel Board
1 x Front I/O Board (FPB-AR14) (61-C1S880-02)
- Power Distribution Board
1 x Redundant Power Supply Power Distribution Board PDB-R20A) (61-C1SDH5-01)
- CPU Heatsink/ Cooler
2 x CPU Heatsink (13071-00090800)
- Power Supply Unit
1 x 770W Redundant Power Supply (04G184004921)
(1 x Power Supply Module default for North America)
- HDD Tray
8 x Hot-swap 3.5" HDD trays (13GS1I0AM050-1)
- Fan
4 x System Fans (80mm x 38mm) (13G074154010)
- Fan Holder
4 x Fan Holder (13GS1600P040-1 + 13GS1600P010-1)
- Optical Drive
1 x Slim DVD-RW (Optional) (17G14113400N + 13GS1600P030-1)
(DVD-RW default for North America)
- Mounting Rails
1 x Friction rail kit (13GS190AM042-1)
- Cable
1 x PMBUS CABLE 5P TO 5P L:500mm (14G000611200)
1 x USB CABLE 2x4 TO 2x5,L=650mm (14G000509410)
1 x POWER CABLE 8P TO 8P,70mm (14G000610110)
2 x POWER CABLE 8P TO 8P,420mm (14G000610120)
1 x POWER CABLE 24P TO 24P,460mm (14G000603750)
1 x FPB CBL 2x8 TO 2x10+1x6,750mm (14G030042840)
1 x W.H CABLE 6P TO 6P,L= 550mm (14G03001120C)
2 x W.H CABLE 10P TO 8P,L=500mm (14G030028220)
1 x SATA 7Px2 TO 7Px2,L=400mm (14G000128040)
1 x SATA CABLE 7Px2 TO 7Px2,L850mm (14G000130810)
2 x SATA 7Px2 TO 7Px2,L=650mm (14G000128050)
1 x MINI SATA 13P TO 7P+4P,390mm (14G000114512)
