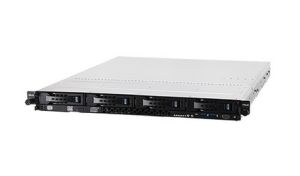

RS300-E8-RS4
New levels of efficiency and optimized design
As always, ASUS makes servers that deliver superior performance. In this generation, the ASUS RS300-E8-RS4 supports the latest Intel Xeon E3-1200 v3 processor family with advanced computing power that can easily work at up to sustainable 40 degrees centigrade stress while reducing power loss. In addition, the ASUS RS300-E8-RS4 offers two expansion slots as well as one ASUS PIKE slot, an internal SSD cage for independent OS drive space, and complete remote server management through ASWM Enterprise and ASMB7-iKVM.
Overview
The latest Intel CPUs
The RS300-E8-RS4 is ready for new-generation Intel Xeon 22nm processors, which deliver a significant performance improvement over previous-generation processors in virtualization support, integrated security, scalability, and I/O performance. They assure frustration-free smooth operation.
2+1 expandability in UP 1U
The RS300-E8-RS4 ships with 2+1 expansion slots in a 1U system for higher expandability and better data protection. It has one PCI Express 3.0 x16 slot and one PCI Express 3.0 x8 slot to accommodate the power of two dual full-height add-on cards. An extra slot is reserved for optional ASUS PIKE cards for cost effective upgrades to SAS storage and RAID protection.
Better networking with new quad server-grade Intel I210 Ethernet
Four server-grade Intel Ethernet ports with the I210 controller double queuing capacity compared to previous-generation Intel Ethernet 82574L controllers, powering faster data transmission. In addition, quad LAN teaming ports provide high networking bandwidth with load balance and fault tolerance functions, which reduce data processing bottlenecks in virtualization environments by increasing virtualized traffic.
Best-in-class power efficiency and stability
With new ASUS Beat Thermal Choke technology, operating temperatures drop by as much as 5 degrees centigrade, helping ensure the lowest energy loss and up to 91% (VR) efficiency. The RS300-E8-RS4 is able to work stably under high ambient temperature environments of up to a sustained 40 degrees centigrade. It also includes 1+1 80 PLUS Gold power supplies to reduce power loss and power consumption, helping consumers save on total cost of ownership.
Optimized user experience design
A front VGA port provides greater convenience and flexibility, allowing customers to connect a monitor from the front. There is also an asset tag on every RS300-E8-RS4 for better identification within a server cluster. ASUS further furnishes several choices for OS drive placement, such as SSD and SATA DOM cages, plus internal Type A USB.
Comprehensive remote management
ASUS presents the most comprehensive and complete server remote management, including both out of band ASMB7-iKVM and in-band ASWM Enterprise. ASWM Enterprise features one on many management, saving time and effort. Its intuitive graphical user interface offers quick insight into current server status as well as detailed and easily-accessible asset management for each server.
Specifications
Processor / System Bus
1 x Socket LGA1150
Intel Xeon processor E3-1200 v3 product family
4th Gen Intel Core i3 processors
Intel Pentium processors
Intel Celeron processors
Refer to www.asus.com for CPU Support list
Generation
E8
Core Logic
Intel C224 Chipset
Memory
Total Slots : 4 (2-channel)
Capacity : Maximum up to 32GB UDIMM
Memory Type :
DDR3 1600/1333 UDIMM*
Memory Size :
8GB, 4GB, 2GB UDIMM
Expansion Slots
1 * PCI-E x16 (Gen3 x8 link) (Full-Height/HL)
1 * PCI-E x8 (Gen3 x4 link) (Full-Height/HL)
1* PIKE Slot for Stroage Enhancement
Storage
SATA Controller :
Intel C224
2 x SATA2 3Gb/s ports
4 x SATA3 6Gb/s ports
Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only)
(Support Software RAID 0, 1, 5, 10 )
SAS Controller :
ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional)
ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card
ASUS PIKE 2308 8-port SAS 6G RAID card
HDD Bays
4 x Hot-swap 3.5" "HDD Bays
2 x SSD Bays(Optional)
Auxiliary Storage FDD/CD/DVD
1 * Slim-type Optical Drive Bay
Options: No Device / DVD-RW / DVD ROM
(DVD-RW default for North America)
Networking
4 x Intel I210AT + 1 x Mgmt LAN
Graphic
Aspeed AST2300 with 32MB VRAM
On Board I/O
1 x PS/2 KB/MS port
5 x RJ-45 ports (One for ASMB7-iKVM)
4 x USB 3.0 ports (Front x 2, Rear x 2)
2 x USB 2.0 ports (Front x 0, Rear x 2)
1 x Internal A Type USB Port
2 x VGA port (Front x 1, Rear x 1)
OS Support
CentOS 5.8/6.3 64-bit
CentOS 5.8/6.2 64-bit
Windows Server 2008 R2 Enterprise
Windows Server 2008 Enterprise SP2 64-bit
Windows Server 2012
Windows 8 32/64-bit
RedHat Enterprise Linux AS5.8/6.3 64-bit
(Subject to change without any notice)
Management Solution
Software: ASWM Enterprise
Out of Band Remote Management: Optional ASMB7-iKVM for KVM-over-IP
Regulatory Compliance
BSMI, CCC, CE, C-Tick, FCC(Class A)
Dimensions
615mm * 444mm * 43.4mm
Form Factor
1U
Weight
16Kg
Power Supply
1+1 Redundant 450W 80PLUS Gold Power Supply
Rating: 100-127Vac/200-240Vac,8A/4A ,47-63Hz, Class 1
Environment
Operation temperature: 10 ~ 40 / Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing)
Accessory Box
1 x RS300-E8 User's Guide
1 x ASUS ASWM Enterprise User's Guide
1 x Bag of Screws
2 x AC Power Cable
1 x ASUS Auto Installation DVD
1 x RS300-E8 Support DVD
1 x ASWM ENTERPRISE DVD
Optional Items
ASMB7-iKVM Remote management card
Slim-type Optical Drive
(DVD-RW default for North America)
ASUS PIKE 2008 RAID card (90-S00CS0130T)
ASUS PIKE 2008/IMR RAID card (90-S00CS0140T)
ASUS PIKE 2108-32PD H/W RAID card (90-S00CS0150T)
