All stock codes associated to this product
CO9050017WLED(AF140QEWLED), CO-9050017-WLED(AF140-QE-WLED)

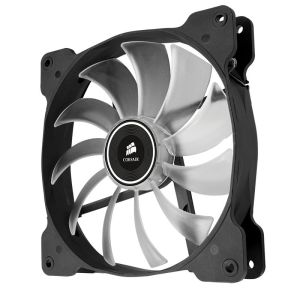

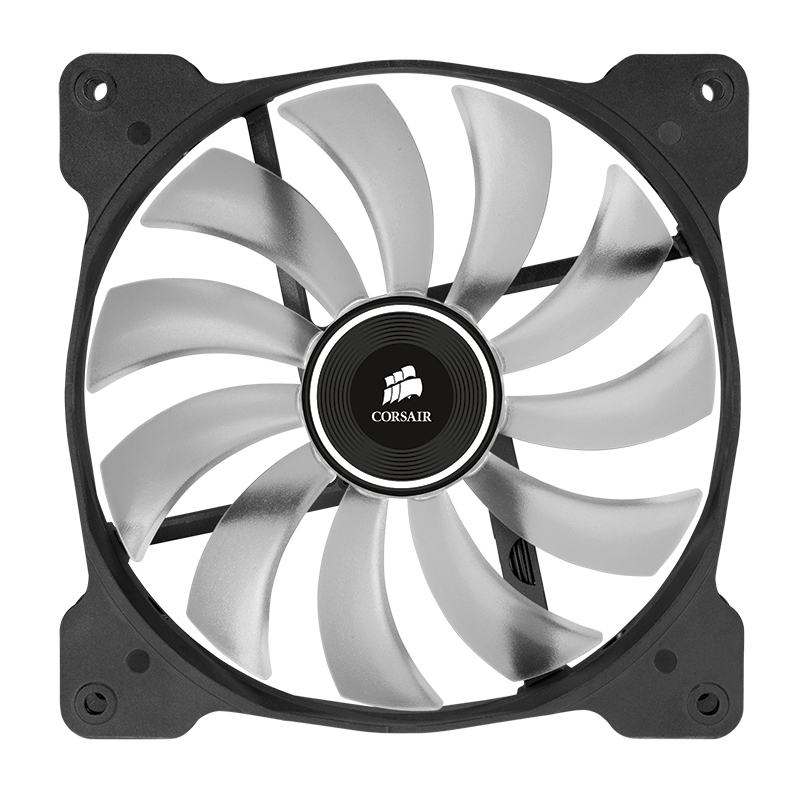

Air Series AF140 LED White Quiet Edition High Airflow 140mm Fan
SKU# CO-9050017-WLED
Overview
Superior cooling performance and LED illumination
Corsair Air Series LED high airflow PC case fans combine efficient, low-noise airflow with striking LED lighting. The custom-molded blades are designed for high-volume air delivery with less noise and turbulence than typical case fans. Theyre translucent, with a frosted texture, so the light from the four LEDs adds a dramatic effect.
Tuned for high-airflow, large volume cooling
Air Series AF fan models perform best in unrestricted spaces with at least 3cm of clearance, and theyre ideal for mounting at the rear or top of your PC case as exhaust fans for your PCs motherboard and CPU, graphics accelerators, and other components that fill the case with heat. They work equally well as unrestricted intake fans for areas like side panels or bottom intakes.
For high restriction areas like hard drive cages or in other tight spaces where theres less air volume, check out our Air Series SP models of high static pressure fans.
Better performance than standard case fans
Air Series AF fan models are designed to outperform standard case fans. The blades are custom-molded for optimal airflow, and theyre ultra-thin for less noise and turbulence. The sleeved bearing system reduces vibration for quiet operation.
Performance
| |
AF120 Quiet Edition LED |
AF140 Quiet Edition LED |
| Dimensions |
120mm x 25mm |
140mm x 25mm |
| Operating Voltage |
7V 12V |
| |
Performance at 12V |
| Airflow |
52.19 CFM |
66.4 CFM |
| Static Pressure |
.75 mm/H20 |
.80 mm/H20 |
| Sound Level |
25.2 dBA |
25.5 dBA |
| Speed |
1,500 RPM |
1,200 RPM |
| Power Usage |
0.40 A |
0.23 A |
Contents and Specifications
Package contents
- Air Series AF140 LED Quiet Edition High Airflow 140mm Fan
- Mounting Screws
- Warranty leaflet
System requirements
- Motherboard with an open standard 3-pin fan connector
Specifications
