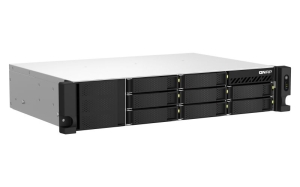

QNAP TS-873AeU-RP Short Depth Rackmount dual-2.5GbE NAS
Overview
Short Depth Rackmount dual-2.5GbE NAS. Powered by a Quad-core AMD Ryzen
processor, supporting 10/25GbE or M.2 SSD caching PCIe expandability for virtual
applications (Supports QTS or QuTS hero operating systems).
The compact 2U rackmount TS-873AeU-RP combines an AMD Ryzen V1000 series
V1500B quad-core/eight-thread 2.2 GHz processor and dual-2.5GbE connectivity in
one chassis. Compared to its previous generation, the TS-873AeU-RP is enhanced
with two M.2 PCIe Gen3 x 1 ports for NVMe SSD cache acceleration or Edge TPU
empowered AI image recognition. Cutting-edge hardware integrated with
comprehensive software solutions makes the TS-873AeU-RP the preeminent choice to
tackle resource-demanding applications and tasks, such as virtual machines or
intensive multi-user access. The space-efficient short depth design of only 11.7
inches (297.4 mm) makes it easy to install in small media cabinets or places
with a lot of cabling. The TS-873AeU-RP also features two redundant power
supplies to ensure maximum system uptime.
Dual-2.5GbE connectivity
Features two 2.5GbE ports. Up to 5 Gbps transfer speeds can be achieved by
using port trunking.
PCIe expandability
Features one PCIe Gen3 x 8 port. Add extra functionality with PCIe cards,
including 10/25GbE ports, QM2, or Fibre Channel.
Optimized SSD performance
Features two M.2 PCIe Gen3 ports to install NVMe SSDs and empower Qtier and
SSD caching technology.
Hybrid cloud storage
Supports block-based and file-based cloud storage gateways with local caching
for low-latency access to cloud data.
Virtual machine applications
Host multiple virtual machines and containers to run a wide range of
applications.
2U Short depth design
The rackmount NAS has a short-depth design of only 30 cm. It is perfectly
suited for installation in a compact rack, or places with a lot of cabling.
Specifications
|
Specifications |
|
|
CPU |
AMD
Ryzen Embedded V1500B 4-core/8-thread 2.2 GHz
processor |
|
CPU
Architecture |
64-bit
x86 |
|
Floating
Point Unit |
Yes |
|
Encryption
Engine |
(AES-NI) |
|
Hardware-accelerated
Transcoding |
Optional
via a PCIe graphics card |
|
System
Memory |
4
GB SODIMM DDR4 (1 x 4 GB) |
|
Maximum
Memory |
64
GB (2 x 32 GB) |
|
Memory
Slot |
2
x SODIMM DDR4 |
|
Support
ECC memory |
|
For
dual-DIMM configuration, you must use a pair of identical DDR4
modules. |
|
Flash
Memory |
5GB
(Dual boot OS protection) |
|
Drive
Bay |
8
x 3.5-inch SATA 6Gb/s, 3Gb/s |
|
The
system is shipped without HDD. |
|
Drive
Compatibility |
3.5-inch
SATA hard disk drives |
|
2.5-inch
SATA hard disk drives |
|
2.5-inch
SATA solid state drives |
|
Hot-swappable |
Yes |
|
M.2
Slot |
2
x M2 2280 (PCIe Gen3 x 1) |
|
SSD
Cache Acceleration Support |
Yes |
|
GPU
pass-through |
Yes |
|
2.5
Gigabit Ethernet Port (2.5G/1G/100M) |
2
(2.5G/1G/100M/10M) |
|
5
Gigabit Ethernet Port (5G/2.5G/1G/100M) |
Optional
via a network adapter |
|
10
Gigabit Ethernet Port |
Optional
via a network adapter |
|
Wake
on LAN (WOL) |
Only
the 2.5GbE port |
|
Jumbo
Frame |
Yes |
|
PCIe
Slot |
1
x PCIe Gen3 x8 |
|
USB
3.2 Gen 2 (10Gbps) Port |
4
(2 x Type A, 2 x Type C) |
|
HDMI
Output |
Optional
via a PCIe graphics card |
|
Form
Factor |
2U
Rackmount |
|
LED
Indicators |
HDD
1-8, Status, LAN, USB, Power |
|
Buttons |
Power,
Reset |
|
Dimensions
(HxWxD) |
89
x 482 x 297.4 mm |
|
Weight
(Net) |
8.15
kg |
|
Weight
(Gross) |
10.92
kg |
|
Operating
Temperature |
0
- 40 C (32F - 104F) |
|
Storage
Temperature |
-20
- 70C (-4F - 158F) |
|
Relative
Humidity |
5-95%
RH non-condensing, wet bulb: 27C (80.6F) |
|
Power
Supply Unit |
300W
PSU(x2), 100 - 240V |
|
Power
Consumption: HDD Sleep Mode |
32.19
W |
|
Power
Consumption: Operating Mode, Typical |
58.14
W |
|
Tested
fully populated with WD10EFRX hard drives. |
|
Fan |
3
x 60mm, 12VDC |
|
System
Warning |
Buzzer |
|
Max.
Number of Concurrent Connections (CIFS) - with Max.
Memory |
2000 |
