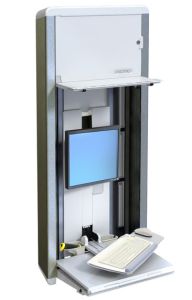

StyleView® VL Enclosure
Part Number: 60-595-062
Secure, complete, compact workstation. Perfect for space-constrained patient rooms, the low profile vertical lift provides 9" (23 cm) of smooth height adjustment and folds into a slim, compact unit when not in use. Its keyless locking mechanism protects patient data for compliance with privacy requirements.
The slide-out, negative-tilt keyboard tray enhances user comfort, and the panning capability of the monitor and keyboard promotes patient-caregiver interaction. A unique cable management system conceals and organizes cords, making cleaning a snap!
Benefits
Secure Equipment and Patient Data
- Keyless locking mechanism protects patient data and aids in the compliance with privacy requirements like HIPAA
- Separate locking storage for CPU
Premium Ergonomics
- Nine-inch (229 mm) vertical adjustment of monitor and keyboard in tandem enhances ergonomics for multiple users
- Slide-out keyboard tray extends an extra 5" (125 mm) and pans for comfortable data entry
- Ergonomic negative-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry
- Patented counterbalance system provides smooth adjustment while maintaining touch-screen stability
- Low profile—only 6.75" (17.2 cm) deep—and narrow width make it perfect for space-constrained areas
- Easy to use: Quick, simple 4-step installation and effortless operation
- Advanced open-architecture design supports future hardware upgrades
- Cable management system conceals and organizes wires and cords
- Extremely easy to clean; promotes infection control
- Attractive design; hides clutter associated with computer equipment
Specifications:
- Part Number: 60-595-062
- Description: StyleView VL Enclosure (white and aluminum)
- Includes wall plate, mounting template, enclosure, vertical lift, slide-out keyboard tray, wrist rest, mouse pouch, scanner holder, internal cable management, batteries, monitor mounting hardware, wall mounting hardware, keys
- Easy 4-step installation: 1. Attach wall plate using template; 2. Hang enclosure; 3. Install computer; 4. Set keyless security code
- * Listed weight capacity represents total load on Vertical Lift engine, including the monitor and contents of keyboard tray, mouse pouch and scanner holder. Maximum load capacity: monitor pivot = 18 lbs (8.2 kg); CPU
- compartment = 20 lbs ( 9.1 kg); door/worksurface = 50 lbs (22.6 kg)
- † Monitor pans left/right ±5° (based on typical 17" monitor; will vary with monitor size)
- Nine inches (229 mm) of vertical adjustment ergonomically accommodates user heights ranging from the 5% female height to the average male height
- Slide-out mouse tray includes built-in pad surface
- Negative-tilt keyboard tray is adjustable 0° to -10°; folds up flat when stored
- Keyboard tray pans left/right up to 120°
- Integrated mouse and scanner holders
- Cable access openings allow cables to pass through top and bottom of enclosure
- CPU compartment is top-vented for maximum CPU heat dissipation
- Open-back design allows wall outlets and other ports to be contained within boundary of enclosure
- Accommodates most small form factor and ultra small form factor CPUs
- Maximum CPU physical dimensions: 13.75" W x 12.75" H x 3.75" D (34.9 x 32.4 x 9.5 cm)
- Maximum monitor physical dimensions: 20.7" W x 14.7" H x 2.75" D (52.6 x 37.3 x 7.0 cm)
- Mounting Standards: VESA FDMI, MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
- VESA hole pattern should be on center on back of monitor
- Plastic/polycarbonate components are compliant with the surface flame spread and smoke development requirements from the NFPA 101 Life Safety Code interior wall finish requirements
- Actual Product Dimensions: 27.2" W x 60.6 H x 6.75" D (closed) or 20.6" D (open)
- (69 H x 154 H x 17 D or 53 D cm)
- Shipping Dimensions: 65" x 31" x 11.5" (1651 x 787 x 292 mm)
- Shipping Weight: 97 lbs (44.1 kg)
- Warranty: Five (5) years; One (1)-year warranty on all electronic components (excludes AA batteries)
