All stock codes associated to this product
45230216, 45-230-216, 1049303, 698833010572

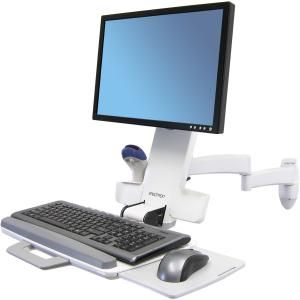

200 Series Combo Arm (white)
Part Number: 45-230-216
Attach your LCD and keyboard to the 200 Combo and free up space. This wall unit solution features 3-point telescoping motion, providing greater reach to bring the system to where it’s needed.
The system accommodates monitor, bar-code scanner, keyboard, wrist rest and mouse. A unique cable management system conceals and organizes cords, making cleaning a snap!
Benefits
- Easily position flat panel monitor and keyboard for maximum comfort and productivity
- Distance between screen and keyboard is adjustable
- Five-inch (13 cm) LCD height adjustment
- Rugged steel construction
- Extremely easy to clean; promotes infection control
- Barcode scanner holder provides easy access to hand-held scanner
- Extends keyboard out up to 39" (99 cm); fold equipment back out of the way when not in use. With the keyboard folded up, total system depth is as little as 12.1" (31 cm)
- Ergonomic negative-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry
- Constant Force, patented lift technology provides fluid, one-touch adjustment of LCD
- Clean, concealed and neat routing of cables through the expansive cable management system

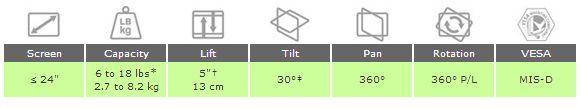

Specifications:
- Part Number: 45-230-216
- Description: 200 Series Combo Arm (white)
- Includes 200 Combo Arm, wall mount bracket, height-adjustable LCD mount, wrist rest, scanner and mouse holder, integrated keyboard tray with left/right mouse tray, handle, VESA mounting kit, cable ties
- Weight Capacity: display = 6-18 lbs (2.7-8.2 kg); keyboard, mouse and barcode scanner = 5 lbs (2.3 kg)
- Monitor depth greater than 2" (5 cm) may diminish capacity
- Height of display adjusts 5" (13 cm); height of keyboard tray is fixed
- Monitor up/down tilt = +25°/-5
- Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
- Integrated mouse and barcode scanner holder provide easy access
- Integrated fold-down keyboard tray with right/left mouse tray (includes built-in mouse pad surface)
- Negative-tilt keyboard tray adjustable 0 to -10 degrees
- Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and powder-coated painted steel
- Mounting Options: Mounts to sturdy vertical surfaces. Where applicable, attach to wood stud. Separately ordered Wall Track or Wall Plate accessory is recommended to strengthen installation by distributing weight over a larger surface area

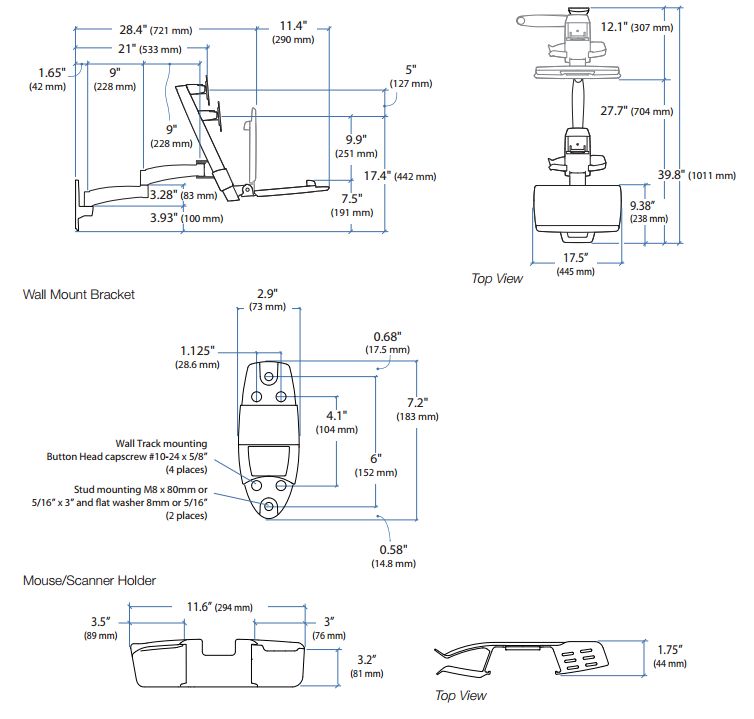

- Shipping Dimensions: 12.4"H x 20"W x 23.6"D (315 x 508 x 605 mm)
- Shipping Weight: 22.7 lbs (10.3 kg)
- Warranty: Five (5) years
