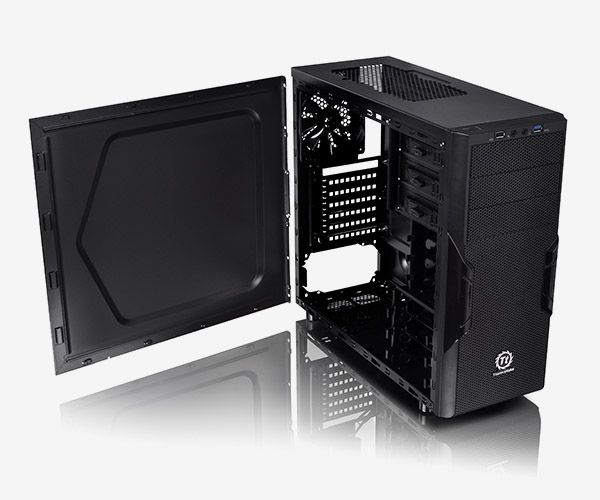

Pre-mounting holes to support motherboards up to standard ATX and CPU cooler installation, long graphic card also supported as well as Advanced Cable Management and Liquid Cooling System.

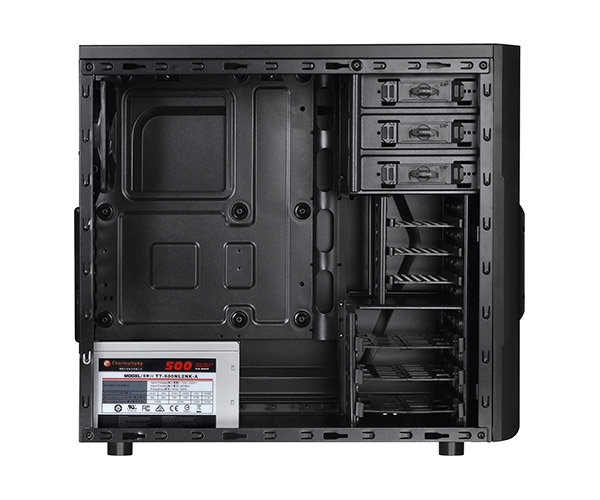

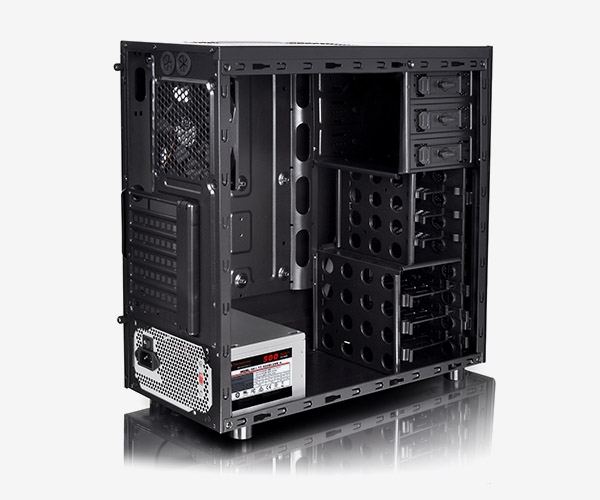

Bottom-placed PSU
Versa H22 is designed with bottom PSU placement. This design improves air flow and extend the lifespan of the power supply. A removable dust filter is also included to keep dust out.

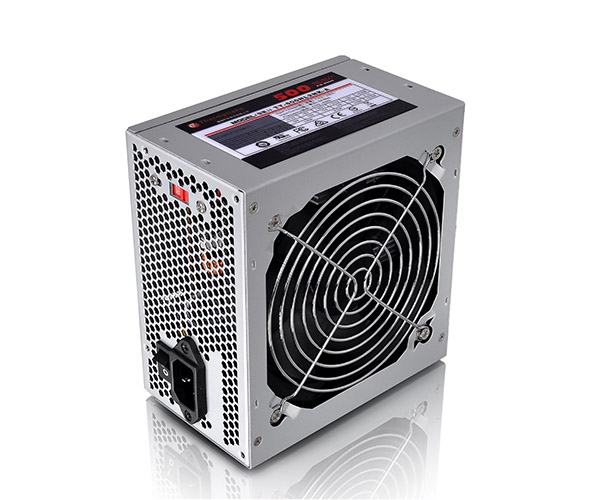

500W Silent Power Supply Included
Versa H22 comes with a 500W silent power supply. It is Intel ATX 12V 2.2 Compatible PSU, with 6-pin PCI-E connector to support high-end graphic card. It has build-in Over Power Protection, Over Voltage protection, and Short-Circuit protection; Haswell ready with TUV, UL, CE and FCC certification to achieve maximum energy savings.
| DC OUTPUT |
+3.3V |
+5V1 |
+12V1 |
+12V2 |
-12V |
+5VSB |
| Max Output Current |
25A |
28A |
14A |
15A |
0.3A |
2.0A |
| Min Output Current |
0.5A |
0.3A |
1.0A |
1.0A |
0A |
0A |
 |
20+4-pin Main Connector X 1 |
 |
4-pin +12V Power Connector X1 |
 |
4-pin Peripheral Connector X 5 |
 |
4-pin Floppy Connector X 1 |
 |
6-pin PCI Express Connector X 1 |
 |
5-pin SATA Connector X 3 |
 |
CPU 4pin to 4pin adapter X 1
CPU 4pin to 8pin adapter X 1 |
Specifications:

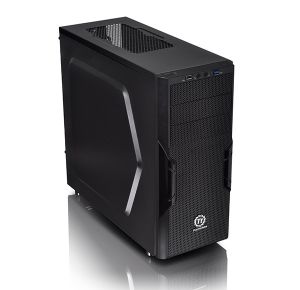

| Model |
Versa H22 C+P |
| P/N |
CA-3B3-50M1NA-00 |
| Case Type |
Mid Tower |
| Dimension |
429 x 209 x 480 mm
(16.9 x 8.2 x 18.9 inch)
|
| Weight |
6.7 kg / 14.7 lb |
| Side Panel |
No Window |
| Color |
Exterior & Interior : Black |
| Material |
SPCC |
| Cooling System |
Front (intake) :(optional)
120 x 120 x 25 mm x 2
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan
(1000rpm, 16dBA)
|

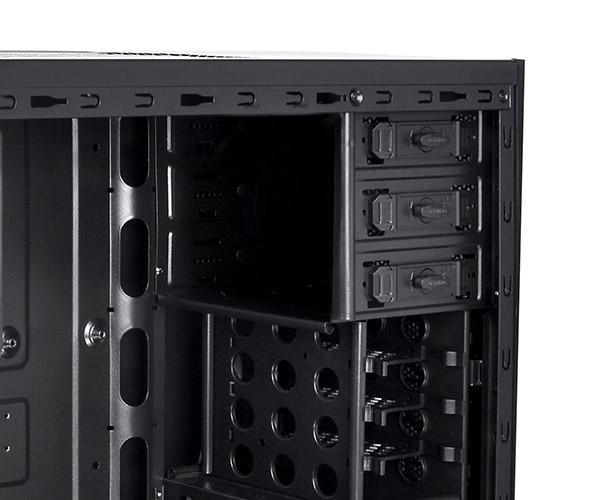

| Drive Bays |
-Accessible : 3 x 5.25
-Hidden : 3 x 3.5 or 2.5, 3 x 2.5 |
| Expansion Slots |
7 |
| Motherboards |
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX) |
| I/O Ports |
USB 3.0 x 1,USB 2.0 x 1, HD Audio x 1 |
| PSU |
Standard PS2 PSU (Included)
- 500W ATX 12V
- 120mm fan x 1
- 24P, CPU+12V 4+4Pin, PATA x 5, FDD x 1, PCI-E 6Pin, SATA x 3
- 115V / 230V |
| LCS Upgradable |
Supports 1/23/81/4 water tube |
| Radiator Support |
Rear: 1 x 120mm |
| Other |
CPU cooler height limitation: 155mm
VGA length limitation: 315mm |
