All stock codes associated to this product
708931-B21, 708931B21, 2549403, 887111625274

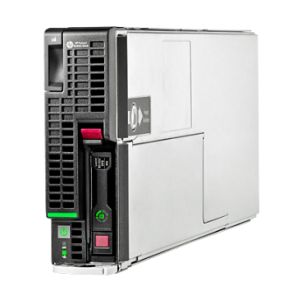

HP ProLiant BL465c Gen8 6344 1P 16GB-R P220i Server
(708931-B21)
Are you looking to expand your data center with a cost-effective two socket server blade offering exceptional price/performance in a half-height form factor? The ProLiant BL465c Gen8 Server Blade provides a unique blend of core density combined with a broad memory footprint in a half-height form factor that delivers unparalleled price/performance leadership for virtualization, IT infrastructure, database, and high-performance computing (HPC) environments. With up to 512 cores in a single enclosure and up to 2048 cores in a single rack, these servers provide very dense deployment for your data center.
Innovations in performance, flexibility in networking options, and robust management features make this the ideal 2-socket server blade for midmarket and enterprise data centers.
Features
Redefining the Customer Experience
The user-inspired design features of the HP ProLiant BL465c Gen8 Server Blade anticipate your needs and virtually eliminate common issues that result in downtime.
Integrated Lifecycle Automation, an industry first, provides embedded provisioning tools, Active Health monitoring, and system maintenance capabilities standard on all ProLiant servers using the industry-leading HP iLO Management Engine.
Dynamic Workload Acceleration delivers smarter data protection for ever-increasing drive capacities, real-time workload-aware analysis to optimize and adapt storage performance, and 6X faster solid state performance versus previous generation.
Automated Energy Optimization improves the server's ability to analyze and respond to "3D Sea of Sensors" data within the server as well as self-identify location and inventory through HP Insight Control for maximum workload optimization across the entire data center.
Intuitive, Automated System Management Reduces Tedious, Time-Consuming Tasks
HP Intelligent Provisioning is a single embedded tool for all server set-up and configuration tasks. All of the firmware, drivers, and tools that you need to quickly get your systems online are built into Gen8 servers - no more CDs or DVDs needed.
HP Active Health provides 24x7 continuous agentless health monitoring and alerting and 100% configuration change logging. Start problem analysis faster using unified diagnostic tools with secure data transfer to HP Service and Support.
Smart Update is a breakthrough system maintenance tool with one-click simplicity that systematically updates firmware and system software across servers and blade infrastructures at the scale of your data center.
Improved Application, Storage, and I/O Performance
HP SmartMemory provides unmatched performance, quality and manageability advantages above industry standard memory, with support for up to 512 GB capacity at 1333 MHz and up to 256 GB at 1600 MHz.
The integrated HP Smart Array P220i RAID controller with 512 MB Flash Backed Write Cache supports HP Smart Storage and HP SmartDrives. Choice of two (2) 2.5-inch SFF SAS, SATA, or SSD drives.
BL465c Gen8 1x8 and 1x16 I/O expansion slots support the highest performing mezzanine option cards and provide I/O bandwidth improvements over the previous generation.
HP FlexibleLOM provides the ability to customize server networking today and the ability to meet future needs without overhauling server hardware. Provides choice of bandwidth and fabric (Ethernet, FCoE, InfiniBand), and supports wake on LAN (WOL).
Built for Performance, Efficiency, and Serviceability
AMD Opteron 6300 Series Processors provide new levels of performance and efficiency over the previous generation.
The Health Status LED on the server blade and the Location LED on the HP Smart Drives allow for quick visibility to issues or blades that need to be located and serviced.
Improved efficiency with support for 1.25V ULV and 1.35 LV HP SmartMemory.
Improved access to mezzanine cards enables quicker removal and easy access to the new FlexibleLOM card. The FlexibleLOM was designed with easy lift and remove handles.
Specifications:
System features
Processor
AMD Opteron Model 6344 (12 core, 2.6 GHz, 16MB L3, 115W)
Number of processors
1
Processor core available
12
Form factor (fully configured)
8 (c3000); 16 (c7000)
Power supply type
Enclosure-based
Expansion slots
(2) Mezzanine cards For detail descriptions reference the QuickSpec
Memory
Memory, standard
16GB (2x8GB) RDIMM
Memory slots
16 DIMM slots: Maximum
Memory type
2R x4 PC3U-10600R-9
Storage
Included hard drives
None ship standard; Supports up to two (2) hot plug SFF SAS/SATA/SDD drives
Optical drive type
None ship standard
Controller Cards
Network controller
(1) 10Gb 554FLB FlexFabric Adapter 2 Ports per controller; Depending on model
Storage controller
(1) Smart Array P220i/512MB FBWC
Dimensions and weight
Dimensions (W x D x H)
33.81 x 59.69 x 21.74 cm (13.31 x 23.5 x 8.56 in)
Weight
7.71 kg (17 lb)
Server management
Infrastructure management
iLO Management Engine, Insight Control
What's included
Warranty
3/3/3 - Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: https://h18004.www1.hp.com/products/servers/platforms/warranty/index.htmlAdditional HP support and service coverage for your product that can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HP website at https://www.hp.com/support
