All stock codes associated to this product
45233200, 45-233-200, 1620250, 698833010602
200 Series Wall Mount Arm, 1 Extension
Part Number: 45-233-200
This unit provides a sturdy platform while allowing the display to swing, tilt, pan, and extend out off the wall. System depth is minimal when pushed back against the wall, perfect for space-constrained areas.
Benefits
Extends out almost 15" (38 cm) or folds back to under 6" (15 cm) from wall in storage position
Swing, tilt, and pan your display; view in either portrait or landscape mode
Sturdy steel construction
Cable management system routes and conceals cables under the arm
Patented friction system provides smooth long-life adjustment while maintaining touch-screen stability
Specifications:
Part Number: 45-233-200
Description: 200 Series Wall Mount Arm, 1 extension (black)
Includes 200 Wall Mount Pivot, wall mount bracket, 1 extension, VESA mounting screws

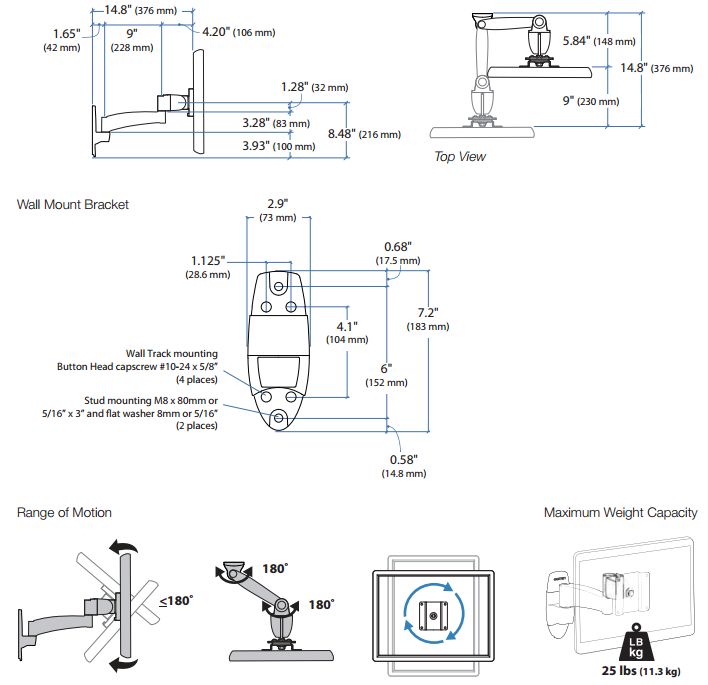

Extends up to 14.8" (37.6 cm) from the wall and retracts to within 5.8" (14.8 cm), excluding depth of monitor
Screen Size is approximate only. Use Display Weight and VESA hole pattern to determine compatibility, i.e., stated screen size may be exceeded as long as display weight does not exceed weight capacity
Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Durable, easy-to-clean powder-coated painted steel exterior
Mounting Options: Mounts to sturdy vertical surfaces. Where applicable, attach to wood stud
Display size may limit range
Shipping Dimensions: 5"H x 13"W x 17.25"D (127 x 330 x 438 mm)
Shipping Weight: 7.3 lbs (3.3 kg)
Warranty: Five (5) years
