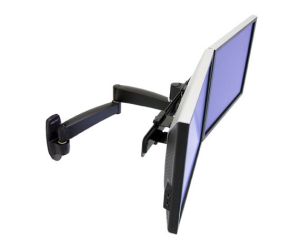

200 Series Dual Monitor Arm
Part Number: 45-231-200
The interlocking design of the 200 Series provides telescoping adjustment. Easily extend or retract your monitors through a 23" (58 cm) range of motion.
Benefits
Position two LCDs at the point of need, then push them back out of the way when not in use
Touch-screen stability
Cable management system routes and conceals cables under the arm
Accommodates various display sizes; slide screens into place to align edges
Rugged steel construction

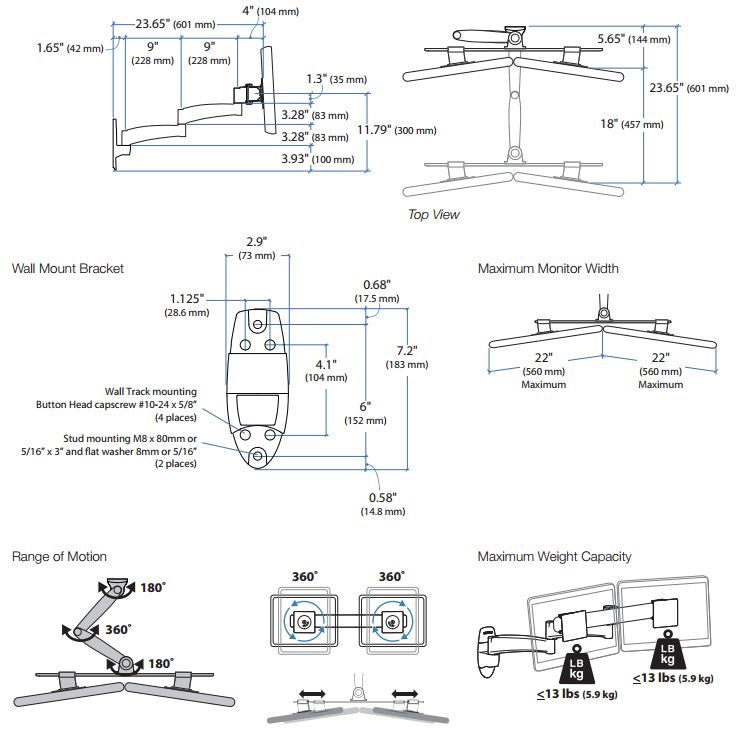

Extends out 23" (58 cm) or folds back to 5.7" (14.5 cm) from wall in storage position
Rotate screens to view in either landscape or portrait mode

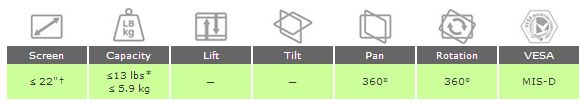

Specifications:
Part Number: 45-231-200
Description: 200 Series Dual Monitor Wall Mount Arm (black)
Includes wall mount bracket, 2 extensions, crossbar and 2 sliding LCD mounts, VESA mounting screws
Maximum outside width of display is 21.25" (54 cm) when displays are 2" (5 cm) thick. This is typically the horizontal dimension of a 22"-diagonal screen-size monitor. Actual allowable width of displays will vary slightly depending on display thickness
Weight Capacity: 13 lbs (5.9 kg) per mount, 26 lbs (11.8 kg) total. Note: Monitors must be equal in weight or ±1 pound (.45 kg)
Monitor depth greater than 3" (7.5 cm) may diminish capacity
Install display mounts on the bow at +2.5° or -2.5° angle to optimize viewing conditions
Monitors are installed with 8° inward off-set angle, creating a 16° viewing parabola for better sight lines
Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Durable, easy-to-clean powder-coated painted steel exterior
Mounting Options: Mounts to sturdy vertical surfaces. Where applicable, attach to wood stud
Shipping Dimensions: 5.25"H x 13.75"W x 24.25"D (133 x 349 x 616 mm)
Shipping Weight: 11.8 lbs (5.3 kg)
Warranty: Five (5) years
