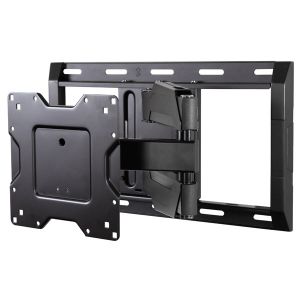

Neo-Flex® Cantilever, UHD
Part Number: 61-132-223
This low-profile cantilever mount fits most large flat panels up to 120 lbs (54 kg) and is well-suited for those applications where seamless integration counts most.
Benefits
Extends up to 18.8" (48 cm) from wall
Minimum profile is just 3.8" (10 cm)
Tilt and pan for maximum viewing flexibility
Includes universal adapter for greater panel compatibility
Integrated cable management guides and hides cords
Lift n’ Lock™ allows you to easily attach your flat panel to the mount
Sliding lateral adjustment of 2.9" (7.4 cm)
Open frame provides ample room for power and A/V cutouts behind TV
Built-in screen leveling
Extruded aluminum arms for maximum support in a lightweight mount
Wall plate and arm design complements TV whether extended or nested to the wall

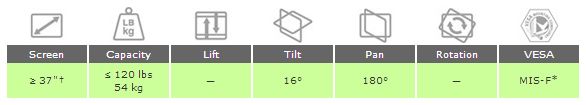

Specifications:
Part Number: 61-132-223
Description: Neo-Flex Cantilever Wall Mount, UHD, Ultra Heavy Duty (black)
Includes wall plate, full motion arm, monitor plate, cable management, spider 46 adapter, complete installation hardware
Screen Size is approximate only. Use Display Weight and VESA hole pattern to determine compatibility, i.e., stated screen size may be exceeded as long as display weight does not exceed weight capacity
VESA Monitor Attachment: 200 x 200 mm to 600 x 400 mm
Minimum profile = 3.8" (97 mm); maximum extension = 18.8" (478 mm)
If adaptor is used, add .2" (6 mm) to minimum profile and maximum extension
UL certified and listed to UL Standard 1678. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use)
Full compliance with RoHS directive
Shipping Dimensions: 23.2" x 12.8" x 4.5" (589 x 325 x 115 mm)
Shipping Weight: 16.4 lbs (7.4 kg)
Warranty: Three (3) years
