All stock codes associated to this product
AE202BLK, AE202-BLK, MSAA87, MS-AA87
AE202
-
Windows 7 Home Premium
-
Multi-touch screen (Windows 7)
-
Intel Celeron 1037U CPU
-
MSI Super Charger technology for fast and power-off charging
-
Support COM port out for connecting barcode reader, credit card machine or credit card billing machine, making it an optimal cutting-edge platform for a variety of commercial application
-
Stylish out looking
-
Power saving, space saving
Overview
High-efficiency Platform with Com Port Supporting Business Applications
The MSI AE202 All-in-One PC is especially designed for commercial segments that require performance with high efficiency. With the 3rd Generation ULV processor, the AE202 is a powerful and reliable tool for growing businesses. Furthermore, it also comes with a the Com Port, which is the common interface between various business applications. In order to provide a comfortable using experience, the AE202 is equipped with an anti-glare display to reduce background reflections in offices, well-lit shop floors, and in study rooms, thereby helping to reduce eyestrain and enabling users to better concentrate on the contents of their computer monitor without being distracted by reflections.
High-Efficiency Intel 1037U
Platform

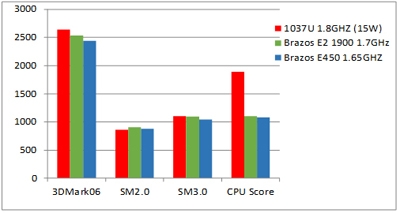

Intel 1037U provides a comparable performance with lower power consumption. The CPU score is nearly 50% better than AMD E-series and the max CPU power consumption is only 17w for saving money and earth.
Space Saving
It effectively saves the desk space with AIO. The MSI AE202 provides a good solation not only for home or school but also for office and store.
Unlock transfer limit

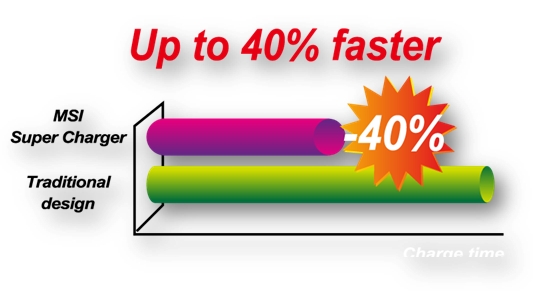

With MSI Super Charger technology, it does not only function as normal USB 3.0 port, but also enable users to charge cell phones or MP3 players even when the system is tuned off

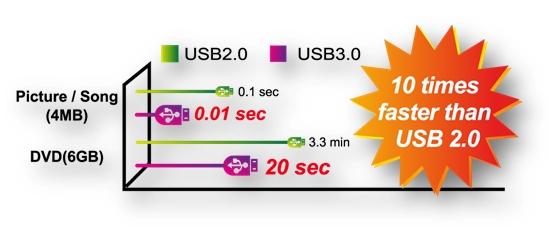

The USB 3.0 supports transfer rates up to 5 Gbps, or ten times that of USB 2.0, making it the fastest transfer interface available on the market today
Meet the business needs

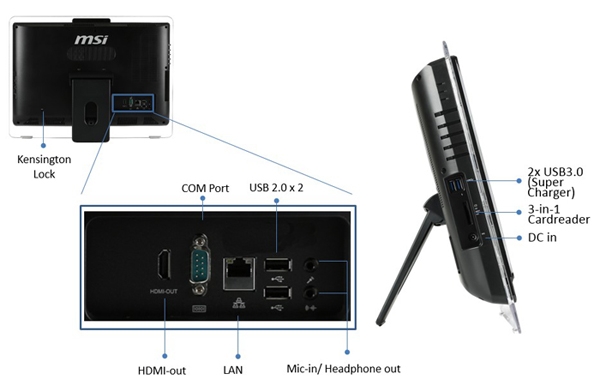

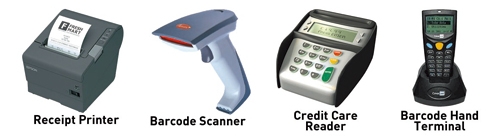

The AE202 provides a COM port for connecting to barcode reader, credit card machine or credit card billing machine, making it an optimal cutting-edge platform for a variety of commercial applications, and altogether replacing existing commercial POS machines.
Lower-Consumption
Compare with Traditional DT, MSI AE202 can save 17.79 W/Per Hour. The AE202 is a environment-friendly product. It consumes 35% less energy.
Specifications:
CPU
Intel Celeron Processor 1037U (2M Cache, 1.80 GHz)
OS
Windows 7 Home Premium
Chipset
Intel® NM70
Memory
2GB RAM
Graphics
Intel® HD Graphics
Panel Resolution
19.5” LCD Panel LED Backlight (1600 x 900) Multi Touch
Touch Panel
Multi Touch
HDD
500GB 3.5' SATAIII / 7200 RPM
Optical Drive
Tray-in DVD Super Multi
Audio
2 x 3W Speakers
LAN
10/100/1000 x 1
Wireless LAN
802.11 b/g/n WiFi
USB 3.0 port
2 (1 with Super Charger)
USB 2.0 port
2
Card Reader
3 in 1 (SD, MS, MMC)
Webcam
HD 1M-pixel webcam and microphone
TV Tuner
Optional (PCI-E interface)
HDMI out
1
COM Port
1
Mic-in/Headphone-out
1 /1
Keyboard / Mouse
USB Keyboard / Mouse
AC Adapter
65W
AIO Wall Mount Kit II
Y (Option)
AIO Wall Mount Kit III
Y (Option)
Dimension(WxDxH)
513.2 x 392.1 x 87 mm
Net Weight
7.65 kg
Gross Weight
8.67 kg
