All stock codes associated to this product
AE203BLK, AE203-BLK, MSAA8A, MS-AA8A
AE203
- Latest Intel Haswell Platform
- Exclusive Flicker-Free and Less Blue Light Technology
- Sufficient USB 3.0 Slot with Super Charge Technology
- Exclusive Display Adjusting Software ScenaMax
- Sound Blaster Cinema
- Support Instant Display Technology with HDMI in
Overview
Revolutionary 4rd-generation Intel Core processors
The AE203G are powered by 4rd Generation Intel Core Haswell processors manufactured with the latest 22 nm process. These new processors effectively enhance performance with reduced power consumption, and their graphics processing units are integrated into the CPUs on the same chips, which provides higher graphics capabilities, smoother high-definition video playback, as well as greater gaming experiences.
MSI Exclusive Anti-Flicker
The Flicker-free technology integrated into the AE203G display stabilizes the power current and prevents flickering invisible to the naked eye under normal conditions. When used for extended periods of time, it effectively reduces eyestrain while also improving productivity.
According to medical research, the average flickering rate of conventional monitors is 200 times/sec. This means that your eyes will suffer from over 5 million flicker times in a standard 8 hour working day, which can result in computer vision syndrome.
Less Blue Light

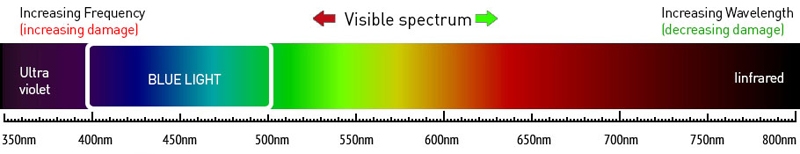

Blue light is light with wavelengths in the 381nm to 500nm range. This can be dangerous to the human eye, causing cataract and retinal degeneration. The flicker-free display of the MSI AE203G All-in-One PC effectively reduces blue light.
Reward your ears with Sound Blaster Cinema
The MSI AE203G is equipped with Creative Sound Blaster Cinema sound technology, which optimizes voice and surround sound effects for different scenarios and enables users to enjoy more immersive effects when watching movies or listening to music.
Sound Blaster™ Cinema is designed to bring the same great audio experience found in live performances, films, and recording studios - to the PC. Powered by the SBX Pro Studio technologies, the Sound Blaster Cinema delivers a much more realistic and immersive experience.
MSI Instant Display Technology

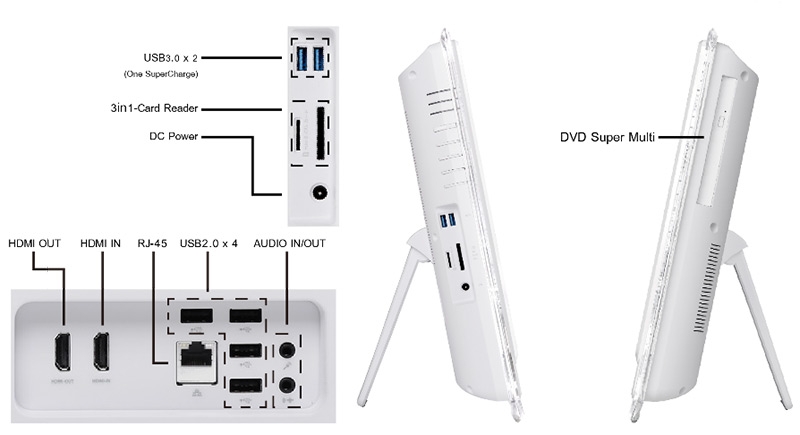

The AE203G is equipped with an HDMI (High-Definition Multimedia Interface) port which allows the units to be connected to a second monitor. They support dual-screen display and can also output the screen to a larger display device, such as a projector or a large-screen LCD TV, making the AE203G more versatile and more efficient. For signal input, the exclusively developed MSI Instant Display Technology allows the screen to enter the “standby” mode when the All-in-One PC is turned on without the need to press the power button on the unit. The screen will be turned on immediately when a device is connected to the HDMI input port and if the AIO PC is also powered on, you can switch to the PC via the screen power button on the side panel. This technology saves even more power on the system.
USB 3.0 with MSI Super Charger
With MSI Super Charger technology, it does not only function as normal USB 3.0 port, but also enable users to charge cell phones or MP3 players even when the system is turned off.
The USB 3.0 supports transfer rates up to 5 Gbps, or ten times that of USB 2.0, making it the fastest transfer interface available on the market today.
Specifications
CPU
Intel Core i3-4150 Processor (3M Cache, 3.50 GHz)
OS
Windows 7 Home Premium 64 bit
Chipset
Intel HM81 Chipset
Memory
4GB RAM
Graphics
Integrated Intel HD Graphic
Panel Resolution
19.5 LCD Panel LED Backlight (1600 x 900 ) / Multi-touch / MSI Flicker-Free & Less Blue Light
Touch Panel
Multi Touch
HDD
500G 3.5 HDD SATAIII
Optical Drive
Tray-in DVD Super Multi
Audio
2 x 3W Speakers with Sound Blaster Cinema
LAN
10/100/1000 x 1
Wireless LAN
802.11 b/g/n WiFi
USB 3.0 port
2 (1 with Super Charger)
USB 2.0 port
4
Card Reader
3 in 1 (SD, MMC, MS)
Webcam
1.0M-pixel HD
TV Tuner
Optional
Expansion Slot
Mini PCI-E x 2 (1xWiFi)
HDMI in
1
HDMI out
1
COM Port
2
Mic-in/Headphone-out
1 /1
Keyboard / Mouse
Wireless Keyboard / Mouse
AC Adapter
120W (UMA) / 150W (GT740M)
AIO Wall Mount Kit II
Y (Option)
AIO Wall Mount Kit III
Y (Option)
Dimension(WxDxH)
513.2mm x 392.1mm x 87mm
Net Weight
8.52 kg
Gross Weight
9.6 kg
