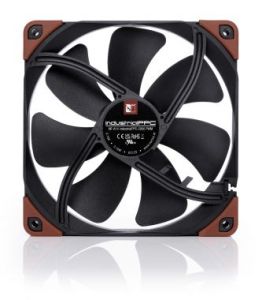

NF-A14-iPPC-2000 | Noctua NF-A14 IndustrialPPC-2000 Cooling Fan - 140x140x25mm



Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-A14 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-A14 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-A14 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTBF of over 150.000hrs. Topped off with Noctuas trusted reliability and 6 years manufacturers warranty, the NF-A14 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.






Having received more than 100 awards and recommendations from the international press, Noctuas NF-A14 has become a proven premium choice for 140mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.






Thanks to its elevated 2000rpm top speed, the NF-A14 industrialPPC-2000 provides a significant performance boost over the 1500rpm retail version. Combined with the industrialPPC series robust polyamide construction and advanced protection features, this makes the fan ideal for challenging industrial applications.






While most axial fans use single-phase motors with 4 slots, Noctuas industrialPPC fans feature a three-phase design with 6 slots, which provides smoother transitions between the slots and thus allows for even higher running smoothness, further reduced vibrations and unprecedented energy efficiency.






While the standard NF-A14 is one of the most energy efficient 1500rpm 140mm fans on the market, the industrialPPC versions three-phase motor provides a further 10% reduction in power consumption when compared at 2000rpm.




Both the impeller and the frame of Noctuas industrialPPC fans are made entirely from fibre-glass reinforced polyamide. This material can withstand temperatures up to 140C and makes the fans even more robust and break-proof than Noctuas standard fibre-glass reinforced PBT fans.





Thanks to a special varnish coating that covers the motor and PCB, the NF-A14 industrialPPC complies with the ingress protection rating IP52. This means that it is not only highly dust resistant but also withstands dripping water equivalent to 3mm rainfall per minute.





The NF-A14 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.






Noctuas AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctuas proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fans performance/noise efficiency.





Noctua’s Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments.





With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.





Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.





The NF-A14 industrialPPC features the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.





In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-A14 industrialPPC sports a CNC milled bearing shell made entirely from brass.





Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A14 industrialPPC features an MTBF rating of more than 150.000 hours and comes with a full 6 years manufacturer’s warranty.





For industry clients, various features, certificates, packaging options and accessories can be customised on requests. For example, we can provide 24V versions, different connectors and speeds, different cable length or UL and TÜV certification. Please feel free to contact us for customised offers!



Size		140x140x25 mm
Connector		3-pin
Bearing		SSO2
Blade Geometry		A series with Flow Acceleration Channels
Frame Technology		AAO
Rotational Speed (+/- 10%)		2000 RPM
Airflow		182,5 m/h
Acoustical Noise		31,5 dB(A)
Static Pressure		4,18 mm H2O
Max. Input Power		2,16 W
Max. Input Current		0,18 A
Voltage		12 V
MTBF		> 150.000 h
Scope of Delivery		Fan 4 Fan Screws
Warranty		6 years
Ingress Protection		IP52
Material		Fibre-glass reinforced polyamide
Motor type		Three-phase
