HOME / Back -> Computer Systems -> BareBone - Servers -> Intel

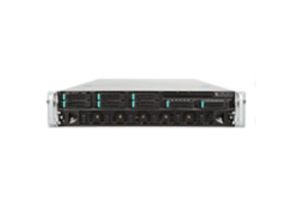

Intel R2208LT2HKC4 Server System - 2U Rackmount
  • Socket R, 48xDDR3-1600 DIMM, 8x2.5"HDD, RAID, 2xGigLAN, 2x1600W PSU

IMG 1 of 1
No Longer Available
Part Number:
319357
(?) Brand:
Intel Web Site
Manuf No:
R2208LT2HKC4
Shipping Weight:
25 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
R2208LT2HKC4

Intel Server System R2208LT2HKC4


Specifications



Expected Discontinuance Q4'15
Limited 3-year Warranty Yes
Extended Warranty Available for Purchase (Select Countries) Yes
Compatible Product Series Intel Xeon Processor E5-4600 Product Family & Intel Xeon Processor E5-4600 v2 Product Family
Chassis Form Factor 2U Rack
Chassis Dimensions 17.24 x 28 x 3.43
Board Form Factor Custom 16.7 x 20
Rack Rails Included Yes
Socket Socket R
Datasheet Link
System Board Intel Server Board S4600LT2
Board Chipset Intel C602 Chipset (Intel BD82C602 PCH)
Description 2U rack system featuring Intel Server Board S4600LT2, supporting eight 2.5" HDDss, 48 DIMMs, dual 1 GbE LAN, integrated Dual Ethernet Controller X540 (10GbE), eight port SAS 6G PCIe* ROC module RMS25PB080, and two 1600W AC redundant power supplies.
Target Market High Performance Computing
Rack-Friendly Board Yes
Power Supply 1600 W
Power Supply Type AC
# of Power Supply Included 2
Redundant Fans Yes
Redundant Power Supported Yes
Heat Sink 4
Heat Sink Included Yes
Backplanes Included
Included Items (1) Intel Server Board S4600LT2, (8) 2.5" Hot-swap drive carriers,(1) Backplane, (2) 1600W Redundant power supplies, (2) Front CPU heat sinks, (2) Rear CPU heat sinks, (11) Redundant and hot-swap cooling fans, (1) Fan board, (1) Power distribution board, (2) Risers with 3 x16 slots (2 x FHFL, 1 x FHHL), (1) 8 port Intel Integrated RAID Module RMS25PB080, (1) Intel Remote Management Module 4, (2) SFF8087 to SFF8087 cables, (1) Value rail kit, (1) Rack handle kit
# of Front Drives Supported 8
Front Drive Form Factor Hot-swap 2.5"
Additional Information URL Link


Memory Specifications

Memory Types DDR3 ECC UDIMM 1333, 1600/ RDIMM 1066,1333,1600,1866/ LRDIMM 1333, 1600, 1866
# of DIMMs 48
Max Memory Size (dependent on memory type) 1500 GB

Graphics Specifications

Integrated Graphics   Yes

Expansion Options

PCIe x16 Gen 3 6
Connector for Intel I/O Expansion Module 2

I/O Specifications

# of USB Ports 6
Total # of SATA Ports 10
RAID Configuration Software RAID 1,0,10 optional 5
# of Serial Ports 1
Integrated LAN 2x 10GbE
# of LAN Ports 2
Optical Drive Support Yes
Firewire No
Integrated SAS Ports 8
Embedded USB (eUSB) Solid State Drive Option Yes
Integrated InfiniBand* No

Package Specifications

Max CPU Configuration 4

Advanced Technologies

Intel Remote Management Module Support Yes
Integrated BMC with IPMI IPMI 2.0
TPM Version 1.2
Intel Node Manager Yes
Intel On-Demand Redundant Power Yes
Intel Advanced Management Technology Yes
Intel Server Customization Technology Yes
Intel Build Assurance Technology Yes
Intel Efficient Power Technology Yes
Intel Quiet Thermal Technology Yes
Intel Virtualization Technology for Directed I/O (VT-d)   Yes
Intel Matrix Storage Technology No
Intel Rapid Storage Technology No
Intel Rapid Storage Technology enterprise Yes

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Intel) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
