All stock codes associated to this product
J1W61PA, HP10648

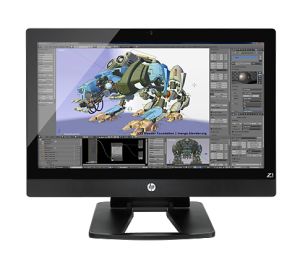

HP Z1 G2 Workstation (ENERGY STAR)
(J1W61PA)
The HP Z1 G2 Workstation is HPs elegant and innovative all-in-one workstation with a brilliant, large-screen display. Easily modify and change most componentsno tools required.1 Unleash your creativity with accelerated performance and world-class reliability. Customize your display with optional 10-point touch technology in a stunning edge-to-edge glass design.
Features
Spark creativity.
Bring ideas to life faster than ever with the Intel Xeon processor, NVIDIA Quadro graphics, ECC memory and a wide range of ISV certifications.
Be wowed and do more with features enabled by HP's cutting-edge engineering, including a high-end professional MXM Graphics cooling module, optional multiple hard drives2 and an adjustable custom display stand.
Connect in a flash and strike productivity with optional high-performance Thunderbolt 2.0 ports2,3 located on the side of the HP Z1 G2 for easy accessibility.
Take computing performance to another level with more efficient processing thanks to 4th generation Intel Core/Xeon E3 processors4.
A wide range of professional 3D graphics options from NVIDIA give you the confidence that youre working with the very best tools available. Or, choose Intels new integrated graphics for the ultimate visual experience.2,5
Powerful and refined.
Change most components1 or make upgrades on your own without tools or a service technician. Simply snap open the chassis and customize to fit your needs.
Your most frequently used data is quickly accessible on the HP Z1 G2 Workstation with optional mSATA storage technology that provides fast storage and cache for OS and applications.2
Easily plug in devices to accessible I/O ports and enjoy the simplicity of push button display movement into and out of service mode on the HP Z1 G2 Workstation.
Treat your ears to premium audio features on the HP Z1 G2 Workstation, including dual cone, front-facing speakers and DTS Studio Sound.
Versatile view.
Reach for success on the HP Z1 G2 Workstation with the optional 10-point touchscreen.2 Get creativity flowing and let your fingers fly over the stunning edge-to-edge glass display.
Step into the light. Reduce reflection and work with clarity on the HP Z1 G2 Workstation with optional no-glass, anti-glare display.2
Your work never looked better. Let your ideas shine on the HP Z1 G2 Workstations brilliant Next Generation 27-inch diagonal IPS display (2560x1440).
Specifications
System features
Operating system
Windows 7 Professional 64 (available through downgrade rights from Windows 8.1 Pro 64)
(This system is preinstalled with Windows 7 Professional software and also comes with a license and media for Windows 8.1 Pro software. You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.)
Processor family
Processor
-
- Intel Xeon E3-1246v3 with Intel HD Graphics P4600 (3.5 GHz, 8 MB cache, 4 cores)
Number of processors
1
Chipset
Intel C226
Environmental
Low halogen
Form factor
All-in-One
Memory
Memory, standard
- 16 GB 1866 MHz DDR3 ECC Unbuffered RAM (2 X 8 GB)
Memory slots
4 DIMM
Storage
Internal drive bays
One 3.5" OR Two 2.5"
Internal drive
256 GB mSATA SSD
2 TB 7200 rpm SATA
Optical drive
- Slim tray-load Blu-ray writer
Display and graphics
Display
27" diagonal IPS LED backlit widescreen LCD with 2 MP 1080p webcam and touch (2560 x 1440)
Graphics
NVIDIA Quadro K3100M (4 GB)
Expansion features
Ports
1 USB 3.0
1 USB 3.0 (charging)
4 USB 2.0
1 headphone
1 microphone
1 DisplayPort 1.1
1 RJ-45
1 subwoofer
1 optical S/PDIF
1 audio line in
1 audio line out
(2 Thunderbolt 2 ports via optical bay module (optional). Available internal I/O ports include: USB 2.0 Type A and 2 USB 2.0 on 9-pin header.)
Slots
- 1 MXM
- 2 mini-PCIe mSATA (full-length)
- 1 SD 4.0 media card reader
- (MXM slot is dedicated for graphics. All slots are low profile.)
Communications
Network interface
- Intel I217LM PCIe GbE controller
- Integrated Intel dual-band AC 7260 802.11 ac wireless LAN & Bluetooth 4 combo
Audio
Intel HD / IDT 92HD68 codec with two 4 W stereo speakers and DTS Studio Sound
Power and operating requirements
Energy efficiency
-
Power
-
- 400 W 90% efficient, wide-ranging, active power factor correction
Dimensions and weight
Dimensions (W x D x H)
66.04 x 41.91 x 52.83 cm
(With stand)
Weight
Starting at 21.32 kg
(Maximum system weight with stand. Exact weight depends upon configuration.)
What's included
Keyboard
HP Wireless Keyboard
Security management
-
- HP Chassis Intrusion Sensor (standard)
Warranty
3-year (3-3-3) limited warranty and service offering includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
