Versa H24
P/N: CA-1C1-00M1NN-00
Design
Feature

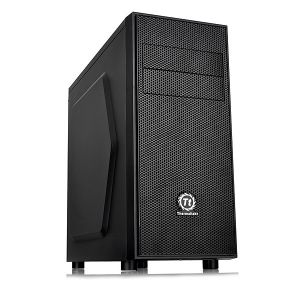

Thermaltake Versa H24 Mid-Tower Chassis
Thermaltake new Versa H24 mid-tower chassis is ideal for home-computer builders and gamers, creating enough space for high-end hardware and expansion. The ample ventilation options, cleanable air filter, and a perforated mesh bezel help to keep the entire system cool and dust-free. Versa H24 combines a manageable frame size with extensive options to customize users computer or gaming system.
Enthusiast Design
Designed for gamers, perforated top panel build for easy heat dissipation and rapid air intake for maximum ventilation. The heighten foot-stands at the bottom help to enhance airflow.
Tool-free Installation
Innovative 5.25” & 3.5” tool-free drive bay design minimized the hassles of installing/removing. Trio drive bay concept “2 + 3 + 3”, a perfect ratio for accessory and storage devices. Also, tool-free mount fan can be clipped on the dust filter.
Handy I/O Ports
The perforated top-front panel has implemented one data transfer SuperSpeed USB 3.0 port along with one standard USB 2.0 port, a HD microphone and headset jacks, to grand direct access when needed.
Optimized Ventilation
A preinstalled 120mm rear turbo fan along with optional 2 x 120mm intake fans and 2 x 120mm exhaust fans as well as a removable front fan mounting dust filter and bottom PSU filter to optimize system ventilation. Cable management design takes cooling performance to another step.
High-end Complete System on the Go
Enables user to build a complete high-end solution including a 120mm radiator liquid cooling system with long graphic card. Versa H24 protects user’s hardware and increase CPU’s overclocking potential. Most importantly, to delivers outstanding cooling efficiency in the entire case.
Specifications
| Model |
Versa H24 |
| P/N |
CA-1C1-00M1NN-00 |
| Case Type |
Mid Tower |
| Dimension (H x W x D) |
429 x 209 x 478mm
(16.9 x 8.2 x 18.8 inch)
|
| Net Weight |
4.2 kg / 9.3 lb |
| Side Panel |
No Window |
| Color |
Exterior & Interior : Black |
| Material |
SPCC |
| Cooling System |
Front (intake) :(optional)
120 x 120 x 25 mm x 2
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan
(1000rpm, 16dBA)
Top (exhaust) :(optional)
120 x 120 x 25 mm x 2
|
| Drive Bays |
-Accessible : 2 x 5.25
-Hidden: 3 x 3.5 or 2.5, 3 x 2.5 |
| Expansion Slots |
7 |
| Motherboards |
9.6 x 9.6 (Micro ATX),
12 x 9.6 (ATX)
|
| I/O Port |
USB 3.0 x 1,USB 2.0 x 1, HD Audio x 1 |
| PSU |
Standard PS2 PSU (optional) |
| LCS Upgradable |
Supports 1/23/81/4 water tube |
| Radiator Support |
Rear: 1 x 120mm |
| Other |
CPU cooler height limitation: 155mm
VGA length limitation: 315mm |
