IMG 1 of 1
Our Price:
$610.40
RRP:
$645.70
You Save:
$35.30
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days

Part Number:
375251
(?) Brand:
Manuf No:
VC840-AT-U
VC840ATU
Shipping Weight:
1.9 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
VC840ATU, VC840-AT-U, KVAVC840, KVA-VC-840, 4719264641725
VC840

Overview

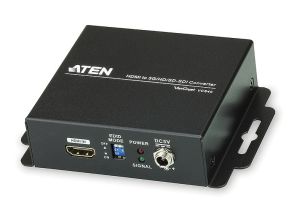

HDMI to 3G/HD/SD-SDI Converter

The VC840 HDMI to 3G/HD/SD SDI Converter provides a professional way to exchange high definition signals in real time. The SDI and HDMI signal conversion is 100% digital and guarantees no loss of quality for both the audio and video transmission. The VC840 provides 2 low jitter SDI outputs for dual display. The VC840 is the most dependable way to convert signals with confidence when monitoring in any post or broadcast application.

Features

Converts an HDMI input signal to 3G/HD/SD-SDI formats in real time while avoiding transformation loss for both audio and video signals
Supports additional analog stereo audio and coaxial digital audio
HDMI (Deep Color)
LED indication of power and signal status
Supports an SDI distance of up to 90M (3G-SDI), 150M (HDSDI) or 300M (SD-SDI) of RG6
Supported SDI formats:

SD-SDI (SMPTE 259M, up to 270Mbps)
HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps)
3G-SDI (SMPTE 424M, 425M level A, up to 2.97Gbps)

Video Support:

2048 x 1080

Supports 8 audio channels @ 48kHz rate

Offers 2 low-jitter SDI outputs for dual display

Features automatic detection of 3G/HD/SD-SDI signals

Reclocking SDI signals for cascading and thus longer transmission

Locking power connector for secure communications

Selectable EDID settings and EDID learning mode

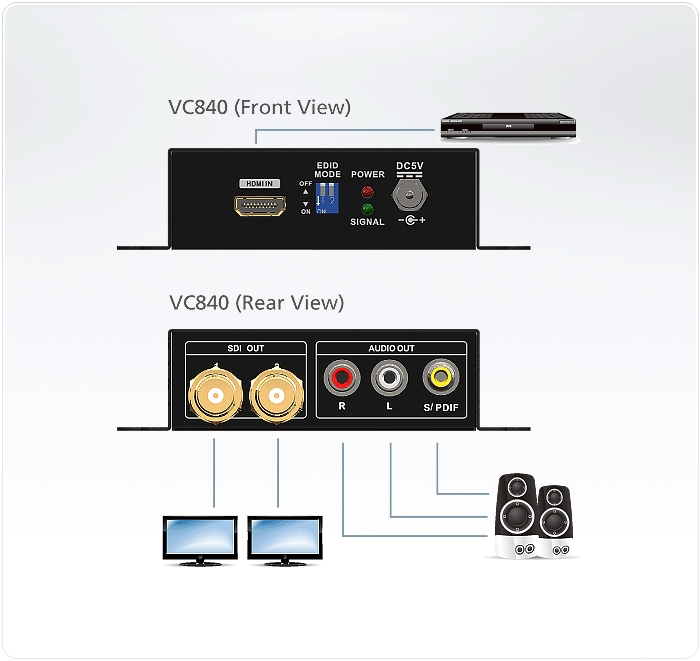

Diagram

VC840 Diagram

Specifications

Connectors Input HDMI In 1 x HDMI Type A Female (Black)
Output SDI Out 2 x BNC (Gold)
Audio Analog 2 x RCA (Red/White)
Digital 1 x RCA (Yellow)
Power 1 x DC Jack
Switches EDID Mode 2 x Dip Switch
LEDs Power 1 (Red)
Signal 1 (Green)
Power Consumption DC5V, 3.5W
Environment Operating Temp. 0-40C
Storage Temp. -20-60C
Humidity 2090% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.29 kg
Dimensions
(L x W x H)
12.22 x 10.70 x 3.04 cm

No additional files, specification sheets, guides or documentation found for product.

Warranty: 24 months*

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
