Designed for gamers, perforated top panel build for easy heat dissipation and rapid air intake for maximum ventilation. The heighten foot-stands at the bottom help to enhance airflow.
Tool-free Installation
Innovative 5.25 & 3.5 tool-free drive bay design minimized the hassles of installing/removing. Dual drive bay concept 1 + 2, a perfect ratio for accessory and storage devices.

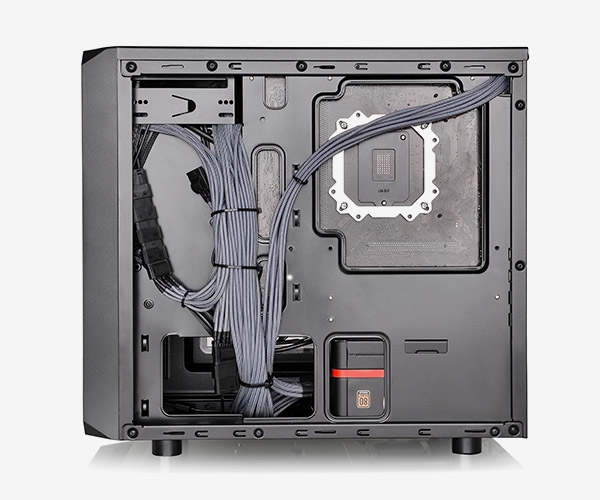

Stress-free Cable Management
The cable routing gap provides easy cable management, hiding cables behind motherboard tray to ensure smoothness for building the chassis. Additionally, with cable routing gap, wiring tangled problem no longer exists, followed by better airflow as well as dust management instead.

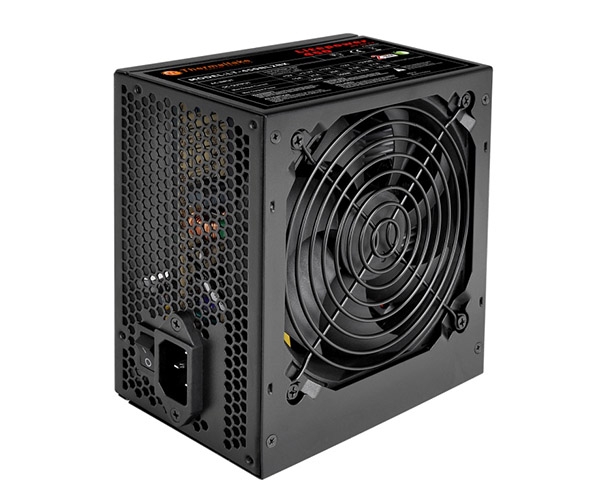

Litepower 450W PSU Included
The Thermaltake Litepower 450W is specifically targeting energy efficient PC systems with lower overall power consumption in application fields, office and entertainment computers, supporting state-of-the-art Intel and AMD processor and graphics technologies.
| AC INPUT |
Input Voltage: 230V
Input Current: 5A
Frequency: 50Hz
|
| DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5Vsb |
| Max Output Current |
21A |
15A
|
25A
|
0.5A
|
2.1A |
| Max Output Power |
105W
|
300W |
0.6W
|
10.5W
|
|
The +3.3V and +5V combined continuous output power not exceed 105 Max.
|
|
Optimized Ventilation
Standard equipped with one 120mm rear turbo fans along with optional 2 x 120mm intake fans as well as 2 x 120mm exhaust fans optimizes system ventilation.
Specifications
| P/N |
CA-3D4-45S1NA-00
|
| Case Type |
Micro Case
|
| Dimension (H x W x D) |
378 x 198 x 411 mm
(15 x 7.8 x 16.2 inch)
|
| Net Weight |
5.4Kg
|
| Side Panel |
No Window
|
| Color |
Exterior & Interior : Black
|
| Material |
SPCC |
| Cooling System |
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA)
|
| Drive Bays |
-Accessible : 1 x 5.25
-Hidden : 3 x 3.5 or 3 x 2.5 |
| Expansion Slots |
4 |
| Motherboards |
6.7 x 6.7 (Mini ITX),
9.6 x 9.6 (Micro ATX),
|
| I/O Ports |
USB 3.0 x 1,USB 2.0 x 1, HD Audio x 1
|
| PSU |
W0423NA |
| LCS Upgradable |
N/A |
| Fan Support |
Front:
1 x 120mm or 2 x 120mm
Top:
1 x 120mm or 2 x 120mm
Rear:
1 x 120mm
|
| Radiator Support |
Front:
1 x 120mm or 1 x 240mm
Top:
1 x 120mm or 1 x 240mm
Rear:
1 x 120mm
|
| Other |
CPU cooler height limitation: 155mm
VGA length limitation: 315mm |
