All stock codes associated to this product
BOXNUC5i5RYH, IN30022, 735858286282, 5032037066266
BOXNUC5i5RYH

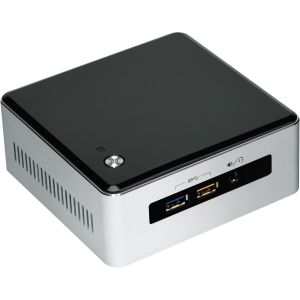

Intel NUC Kit
- 7.1 Surround Sound
- 802.11ac Wireless + Bluetooth
- Intel Rapid Start Technology
- M.2 SSD Support
- MINI HDMI
- Supports 4K Display
- Intel HD Graphics 6000
- USB 3.0 Charging Port
The Shape that Fits the Future.
Think you know what small can do? Think again.
Powering Your Digital Life
A revolution in ultra-compact device design, the Intel® NUC NUC5i5RYK packs a range of features, including the latest 5th generation Intel® Core™ i5 processor and Intel® HD Graphics 6000, into 4 inches square. This fully scalable Mini PC has the performance to drive home theater PCs, media server PCs, home hubs, and intelligent computing for small spaces.
Whether you want a digital jukebox, home hub, or mainstream gaming PC, the Intel NUC NUC5i5RYK gives you the power to play, create, entertain, and inspire. The system is designed to hold a lightning fast and compact M.2 SSD so you can quickly stream music or movie files, and also features consumer infrared and a Mini HDMI* video interface. With Intel® WiDi 1 you can connect your monitor without any additional cables and Bluetooth lets you place wireless speakers where you want—all the features you want in a space-saving, clutter-free design.
A replaceable lid gives you plenty of options to create the NUC you want—with amazing style and features. There’s also a high-speed USB 3.0 charging port that lets you easily charge your tablet or smartphone quickly.
Superior processing and graphics
The Intel NUC NUC5i5RYK is equipped with the 5th generation Intel® Core™ i5-5250U processor with Intel® Turbo Boost Technology 2.0 2 which gives you extra GHz on demand to let you maximize performance on processor-intensive tasks like gaming. Intel HD Graphics 6000 with 4K display capabilities gives you a vibrant visual experience without an extra graphics card —which means your games just got more epic.
Advanced technologies
Based on the 5th generation Intel® Core™ processor, you’ll get ultra-responsive perfor-mance in a highly secure platform. Intel® Rapid Start Technology 3 ensures that there’s less waiting and more doing. Intel® Ready Mode Technology 4 means you’ll never miss out on e-mail, IMs, real-time news and sports updates, or social media posts. It also lets you stay connected with friends and family by keeping your video conferencing apps running in the background. And for peace of mind you’ll get embedded security that helps keep threats out, user identities and credentials safe, and your data protected.
Power, Capabilities, and Performance in Four Inches Square
HIGHLIGHTED FEATURES
- 5th generation Intel Core i5-5250U processor
- Two DDR3L SO-DIMM sockets (up to 16 GB, 1333/1600 MHz)
- M.2 slot with flexible support for a 42, 60, or 80 mm SATA or PCle* SSD
- Intel Dual Band Wireless-AC and Bluetooth 4.0
- Kensington lock support
- Backpanel DC power connector (12V - 19V)
- One Mini DisplayPort* version 1.2 supporting, 8 channel digital audio (7.1 surround sound)
- Intel Gigabit LAN
- 2x USB 3.0 ports on the back panel
- Mini HDMI* port supporting HDMI 1.4a and 7.1 surround sound
- Support for user-replaceable third-party lids
- 2x USB 3.0 ports on the front panel (including one charging port)
- Intel HD Audio via Headphone/Microphone jack
- Consumer infrared sensor
Specifications
PROCESSOR
- 5th generation Intel Core i5-5250U processor (1.6 GHz up to 2.7 GHz Turbo Dual Core, 3 MB Cache, 15W TDP)
- Supports Intel Hyper-Threading Technology
- Supports Intel 64 architecture
GRAPHICS
- Intel HD Graphics 6000
- One Mini DisplayPort* version 1.2 supporting ultra-high definition 4K displays and multiple monitor functionality
- One Mini HDMI* 1.4a port
SYSTEM MEMORY
- Two DDR3L SO-DIMM sockets (up to 16 GB, 1333/1600 MHz) in dual channel configuration, 1.35V
STORAGE CAPABILITIES
- One M.2 Type M connector supporting 22x42, 22x60, and 22x80 SATA or PCIe8 SSDs
PERIPHERAL CONNECTIVITY
- Integrated Intel Gigabit LAN
- Four Super Hi-Speed USB 3.0 ports (two back panel ports and two front ports including one charging port)
- Two additional Hi-Speed USB 2.0 ports via internal header
- Intel Dual Band Wireless-AC 7265, 802.11ac, 2x2, up to 867 Mbps
- Dual Mode Bluetooth 4.0
AUDIO
- Intel HD Audio5 via Mini HDMI 1.4a and Mini DisplayPort version 1.2 supporting 8 channel digital audio (7.1 surround sound)
- Intel HD Audio via front panel analog audio jack (supporting headset)
MECHANICAL CHASSIS SIZE
- 4.53" x 4.37" x 1.36"
- 115mm x 111mm x 34.5mm
BASEBOARD POWER REQUIREMENTS
- 19V, 65W wall-mount AC-DC power adapter
- Multi-country AC adapter (IEC plug types A, C, G, and I)
