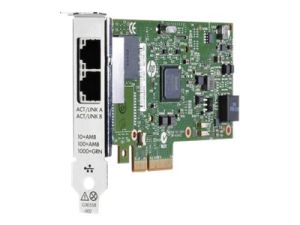

HP 652497-B21 Ethernet 1Gb 2-port 361T Adapter

IMG 1 of 1
No Longer Available
Part Number:
389996
(?) Brand:
HP Web Site
Manuf No:
652497-B21
652497B21
Shipping Weight:
0.28 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Are you looking for options for HP Servers Systems?

Why not get us to send you a quote, the eaisest method is to simply fill our contact form with your requirements and we will get back to you.

Contact Form

All stock codes associated to this product
652497B21, 652497-B21, 1996170, 886111577620
HP Ethernet 1Gb 2-port 361T Adapter

652497-B21

Overview

1Gb 2-port PCIe Gen 2.0 adapter, based on Intel I350 Chipset

Description

The HP 361T offers two high-performing 1GbE PCIe Gen 2.1 connections in a low cost, low power, halogen-free design. Based on the new fully integrated (bridgeless) Intel® Ethernet I350 Controller, it introduces new levels of performance and power management technologies for HP ProLiant Gen8 DL/ML/SL servers and select G7 servers. It can be used with a full height or low profile bracket, and can operate at three different data rates (10/100/1000 Mbps). The HP 361T is positioned as the follow-on to the HP NC360T.

New levels of performance and power management in a 1GbE card for HP ProLiant Gen8 DL/ML/SL servers.
Dual port bandwidth, Gigabit PCI Express 2.1 NIC, with full height or low profile bracket. New fully integrated (bridgeless) Intel® Ethernet I350 Controller, optimized for the new Integrated I/O and Data Direct I/O technologies. Tested by HP and Intel to ensure compatibility with HP ProLiant Gen8 servers. Supports the IEEE 1588 Precision Time Stamping protocol and 802.1AS implementation. Supports latest virtualization features including VMware NetQueue and Microsoft VMQ, plus power management technologies such as IEEE 802.3az and DMAC.

Specifications:

Network Controller Intel I350 chipset
Port Speed 1 Gbps Ethernet
Port speed rating 1 Gbps Ethernet
Power Availability 5W (maximum)
Product dimensions (W x D x H) 2.25 x 9.5 x 7.5 in
Protocol supported 802.3, 802.3u, 802.3x, 802.3ab, 802.3ad, 802.1p, 802.1Q, 802.3az, IEEE 1588
Transfer Rate 2 Gb/sec; Full Duplex per port
Warranty - year(s) (parts/labor/onsite) 1/1/1
Weight ( Imperial ) 1 lb
Weight ( Metric ) 0.45 kg



Extended specifications




Interfaces/Ports

Host Interface PCI Express
Total Number of Ports 2
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 2



Media & Performance

Twisted Pair Cable Standard Category 5



Network & Communication

Network Technology 10/100/1000Base-T



Physical Characteristics

Card Height Low-profile
Height 2.5"
Width 5.3"



Warranty

Limited Warranty 1 Year

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (HP) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
